Gaming Solution

Game Capture Studio

A single-box solution for full game capture and streaming setups. Video and audio in one — compatible with all streaming sites, no drivers needed. 4K 60fps HDR with industry-leading low latency.

See what's inside
What's Inside

Built for streamers

A single-box capture and switching solution: HDMI switcher, USB capture, microphone phantom power, CEC display control, KDCam app for Windows or Mac.

System

  • HDMI switcher keeps you connected — no wasted time during setup
  • USB video and audio capture without drivers
  • CEC control over HDMI for display power
  • Microphone or external music/audio input with mix level control
  • Setup and control with KDCam on Windows or Mac

Video

  • 4K 60fps with HDR10 and Dolby Vision HDMI input and output
  • 1080p 60fps USB capture
  • 2 HDMI inputs and HDMI output with push-button or KDCam source select
  • EDID handshake selection for perfect formats

Audio

  • Selectable microphone (XLR) or L/R (3.5mm) inputs
  • 48V phantom power for professional condenser microphones
  • External audio output for amplifiers and audio systems
  • HDMI audio output CEC volume for surround systems

Operation

  • Control with the KDCam app on Windows or Mac
  • Front-panel controls

Game Capture Studio Example

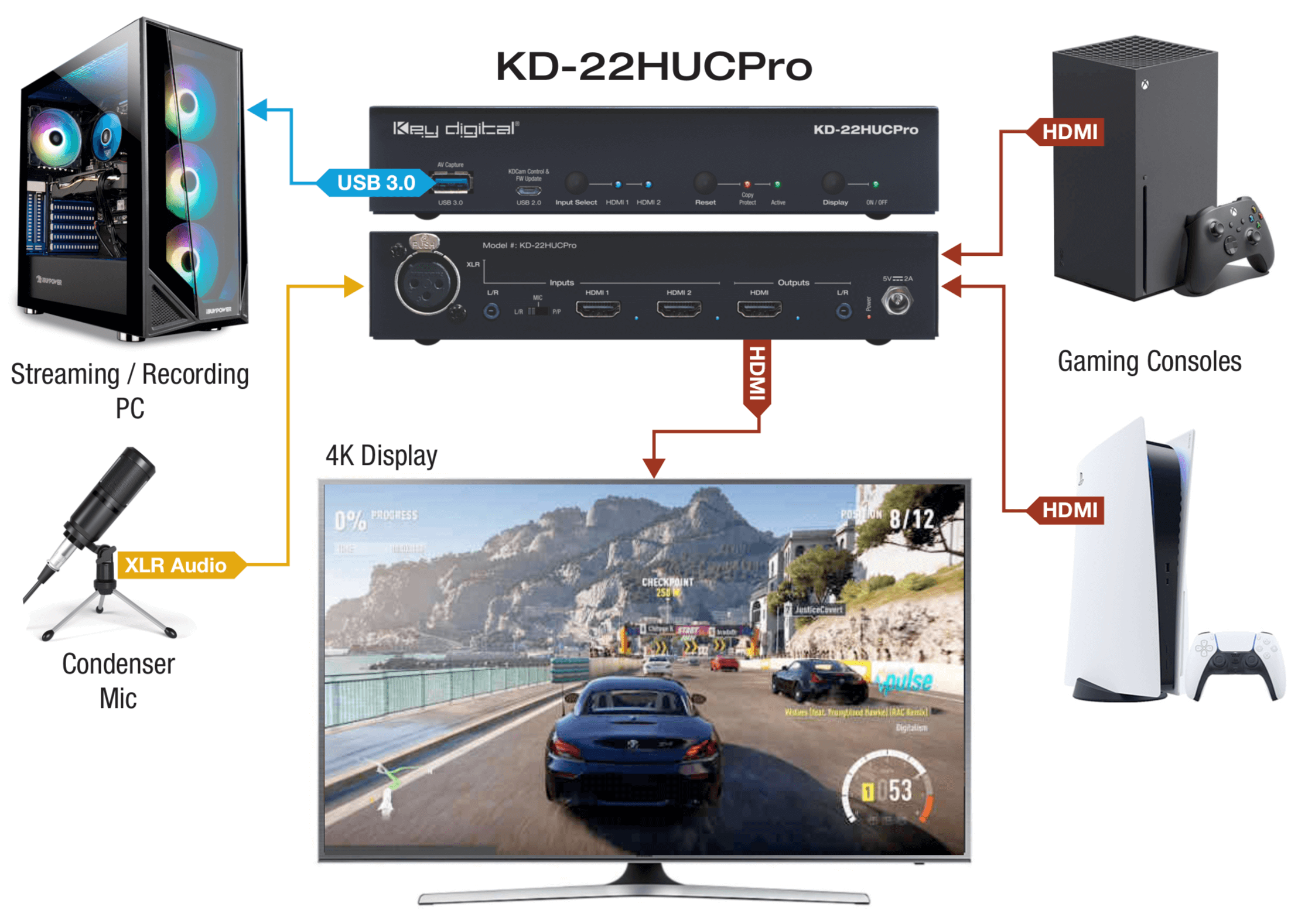

Game capture studio system example with KD-22HUCPro

Connect two consoles and your microphone into KD-22HUCPro to capture 1080p 60fps video and audio on your PC. HDMI Output passes through the selected console at up to 4K 60fps with HDR.

Featured Product

The single-box solution

KD-22HUCPro HDMI switcher and USB capture device
KD-22HUCPro

HDMI Switcher + USB Capture

2-input 4K/18G HDMI switcher and USB capture device with XLR mic input, audio mixing, HDMI pass-through, and CEC display control.

Talk to Sales

Setting up a streaming studio?

The Key Digital sales team is available to help with system design, find a distributor, or connect you with a certified integrator.
