Healthcare Solution

KDM Monitoring System

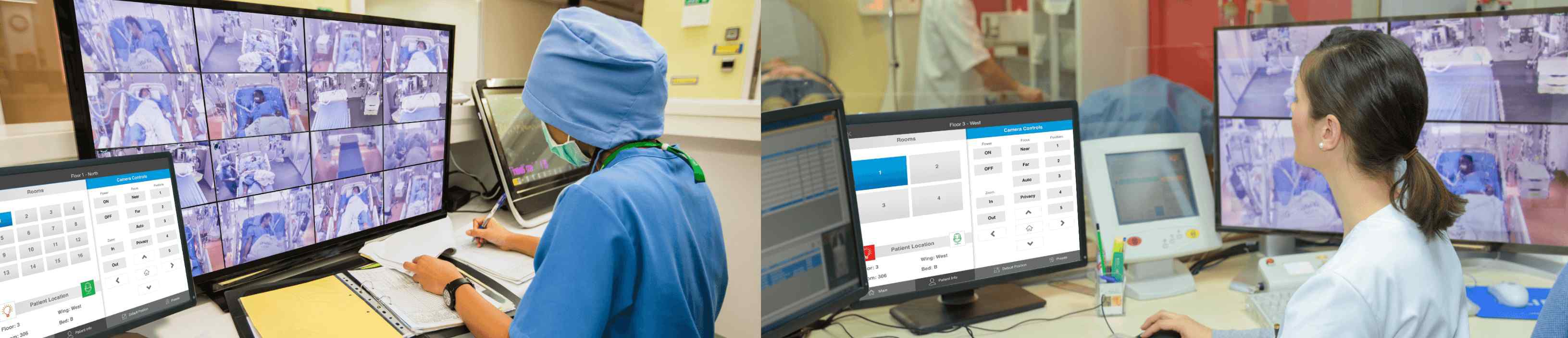

Advanced patient care: video and 2-way audio patient monitoring and communication. Monitor multiple patients from a central location, reduce harmful staff exposure, and stay connected with two-way patient communication.

See what's inside
What's Inside

Turn-key patient monitoring

A localized, pre-configured, plug-and-play system. Minimal staff training required, with AES-secured encryption and a single CAT6 to each patient bed.

System

  • Localized system, no internet required
  • One CAT6 wire to each patient, less than 100m from network switch
  • AES secure encryption
  • Turn-key, pre-configured, plug-and-play, minimal training required

Video

  • 1080p PTZ camera at each patient bed
  • Dual monitor system
  • 4 or 16 patient view
  • Full-screen patient video feed with two-way communication link

Audio

  • Professional USB speaker + mic combo
  • Comm link initiated by patient via emergency button
  • Full 2-way link initiated by nurse using Key Digital Management Software

Monitoring

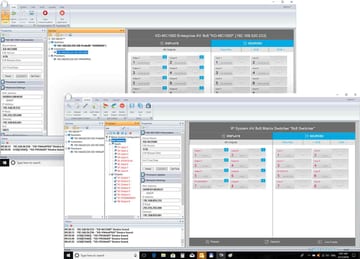

  • Pre-programmed PC software user interface
  • Any PC at nurse viewing station can control video, camera, audio, voice
  • Emergency button at each patient to notify the nurse viewing station
Watch It Work

Video Overview

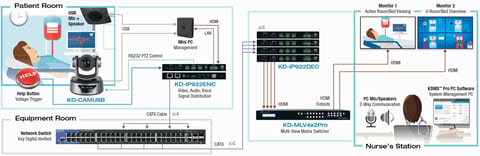

System Example — Up to 16 Patients

Key Digital healthcare monitoring system - up to 16 patients

A scalable system supporting up to 16 patient stations from a single nurse viewing station. Smaller deployments (up to 4 patients) use the same components and software. Download the full brochure for system design details.

Featured Products

What's in the rack

KD-IP922ENC-II AV over IP encoder
KD-IP922ENC-II

AV over IP Encoder

4K AV over IP encoder with PoE, HDMI pass-through, Open API control ports, analog and digital audio de-embedding and pre-amp.

KD-IP922DEC-II AV over IP decoder
KD-IP922DEC-II

AV over IP Decoder

4K AV over IP decoder with PoE, Open API control ports, analog audio de-embedding and pre-amp.

KD-MLV4x4Pro multi-view tiling matrix
KD-MLV4x4Pro

Multi-View Tiling Matrix

4K multi-view tiling processor matrix with 4 HDMI inputs and 4 outputs — view 4 or 16 patient feeds.

KD-CAMUSB PTZ USB camera
KD-CAMUSB

PTZ USB Camera

PTZ USB camera, IR and RS-232 Visca controllable. Used at each patient bed.

KDM Monitoring System brochure cover
Brochure

Download the KDM Monitoring System Brochure

The full system brochure covers the central station, bed-side PTZ cameras, multi-view options (4 or 16 patients), AES encryption, two-way audio, KDMS Pro management software and the recommended bill of materials.

Download KDM Monitoring System Brochure (PDF)
Talk to Sales

Need a patient monitoring system?

The Key Digital sales team is available to help with system design, find a distributor, or connect you with a certified integrator.
