Hospitality Solution

Ballrooms & Room Combine

Combine rooms for any event-space need. Share video and audio per room, run separate events at the same time, and configure spaces from a wall-mounted iPad.

See what's inside
What's Inside

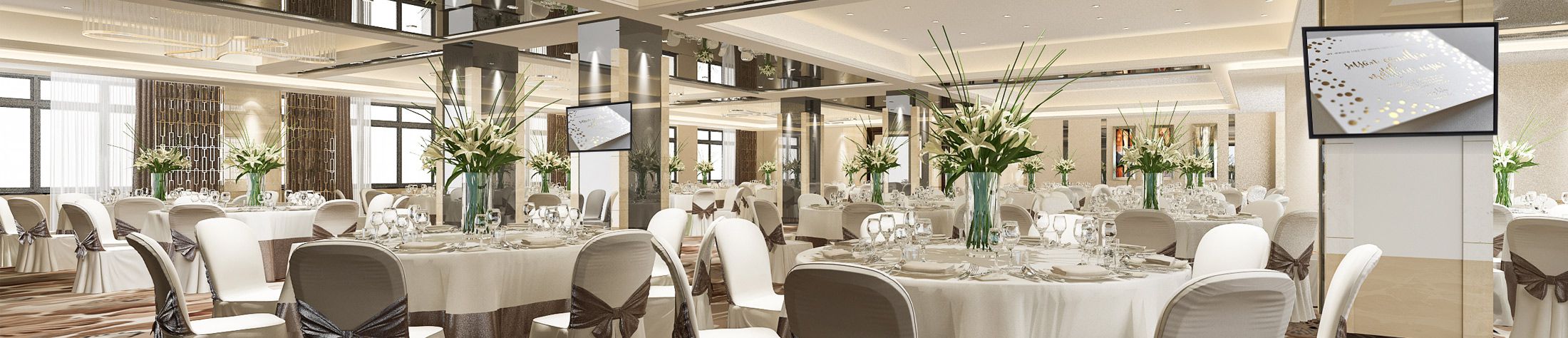

Dynamic ballroom spaces

Create dynamic spaces with wall-mounted iPad control. Perfect for corporate meetings, trade shows, weddings and overflow situations.

System

  • Intuitive iPad touch screen mounted on walls in kiosk mode
  • Hospitality Manager master iPad may control all rooms
  • Integrates audio, video, conferencing, lighting, and more

Video

  • Bring-Your-Own-Device ready
  • Plug-in plates with HDMI, USB-C, DisplayPort or VGA
  • Wireless casting from PC, Mac, iOS, Android, Chrome OS
  • 4K resolution support for crystal-clear images

Audio

  • Wide support for partner DSPs and amplifiers
  • Distribute background music
  • Mix from video sources, microphones, music, and more

Operation

  • AV automatically adjusts based on room partition status
  • Programming sets the master AV source for combined rooms
  • iPad interface updates to show room usage

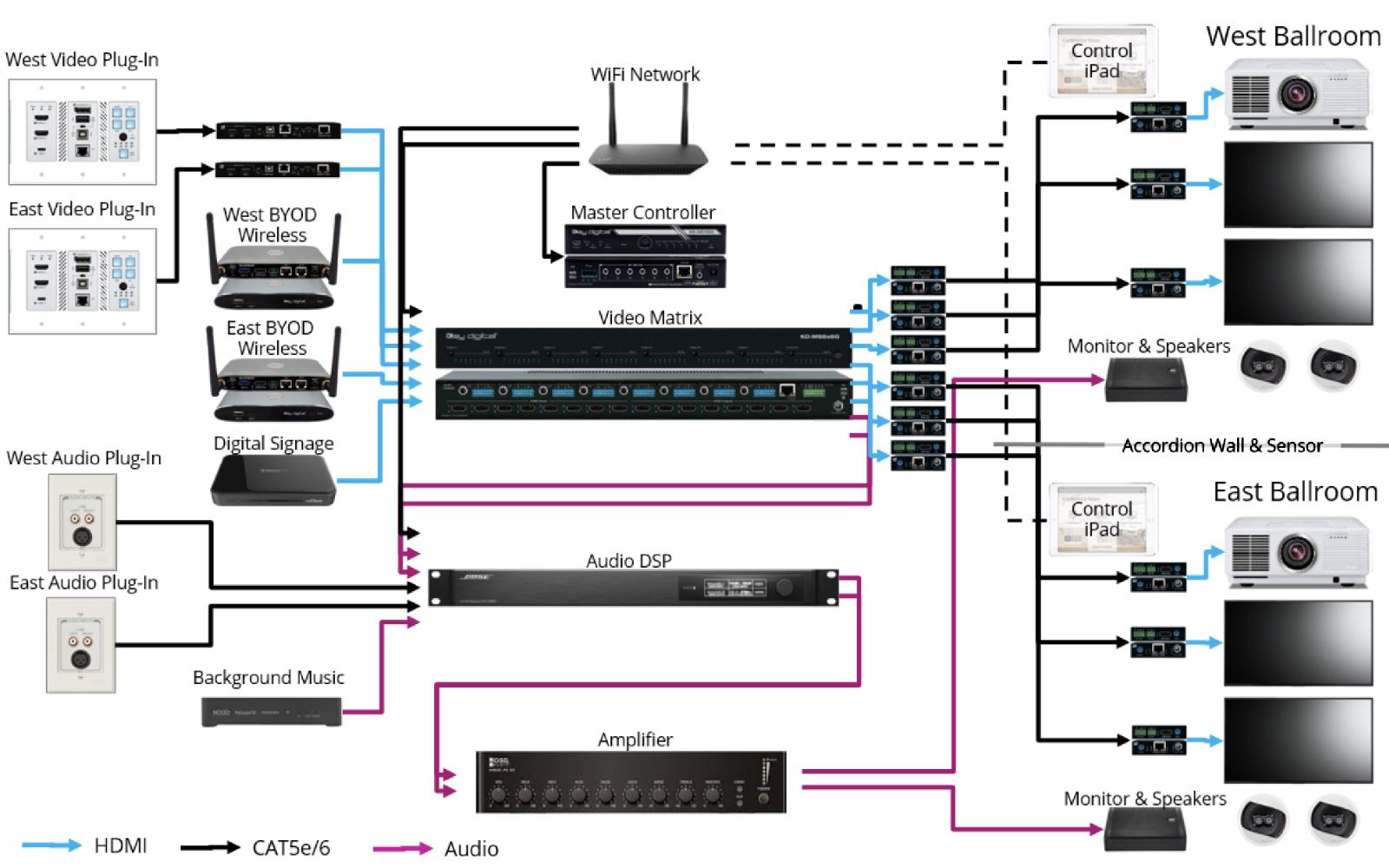

Large Divided Ballroom Space

System example - large divided ballroom space

Use audio-video matrixing devices to separate or combine multiple rooms with ease. iPads may be securely mounted on walls for user-friendly control, or a hospitality manager's master iPad may control all rooms for corporate meetings, trade shows, weddings, parties, and more.

Featured Products

What's in the rack

KD-BYOD4K wireless presentation gateway
KD-BYOD4K

Wireless Presentation Gateway

4K KDPlay wireless presentation gateway for PC, Mac, iOS, Android and Chrome OS. Full and multi-presenter modes with built-in antenna.

KD-MS8x8G HDMI matrix switcher
KD-MS8x8G

8x8 HDMI Matrix Switcher

8x8 4K/18G HDMI matrix switcher with independent audio switching, balanced/unbalanced audio, and audio de-embedding of analog L/R/PCM.

KD-X4x1WUTx HDBaseT USB wall plate switcher
KD-X4x1WUTx

HDBT Wall Plate Switcher

4x1 4K/18G 100m HDBT PoH wall plate switcher with 2x HDMI, DP, USB-C, USB, LAN, audio de-embed, IR, RS-232 (Tx only).

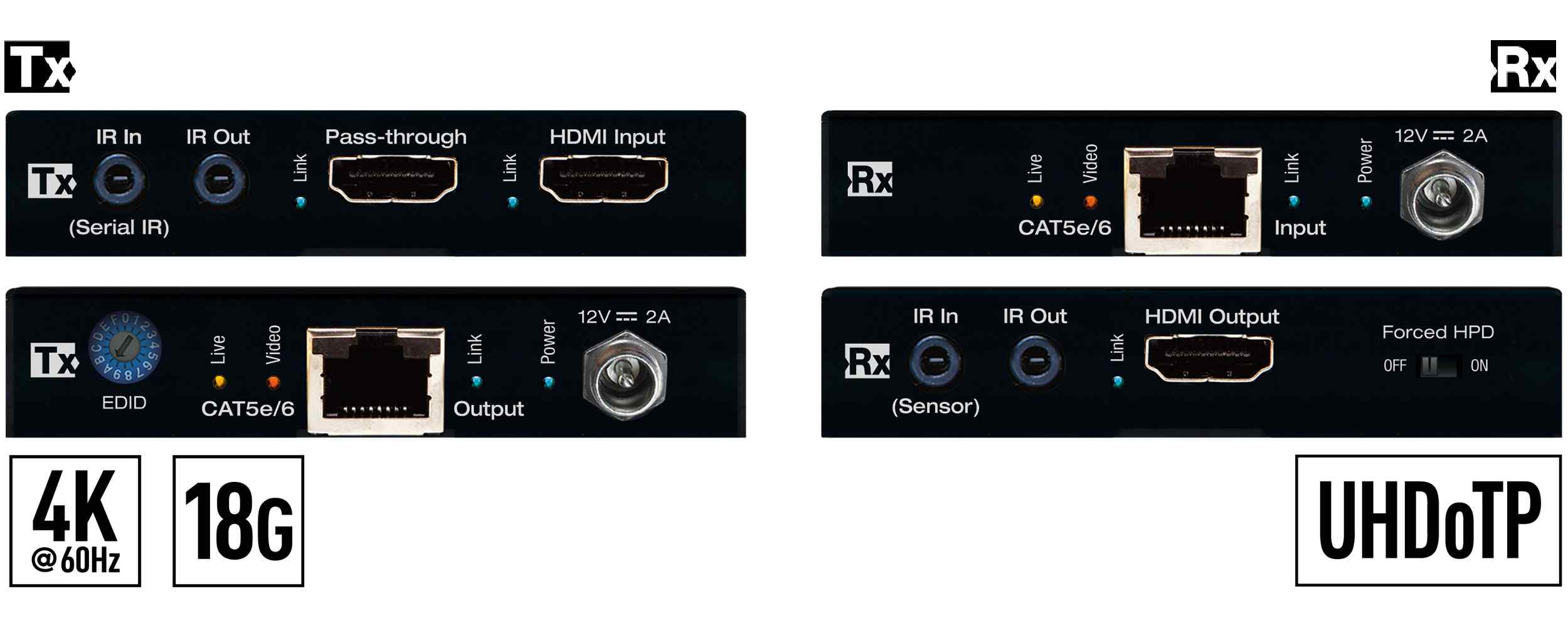

KD-EX18G HDMI extender kit
KD-EX18G

HDMI Extender Kit

4K UHDoTP HDMI extender Tx + Rx kit with HDR. Extends 4K/18G to 35 m (115 ft), 1080p to 50 m. Power over CAT, 2-way IR.
