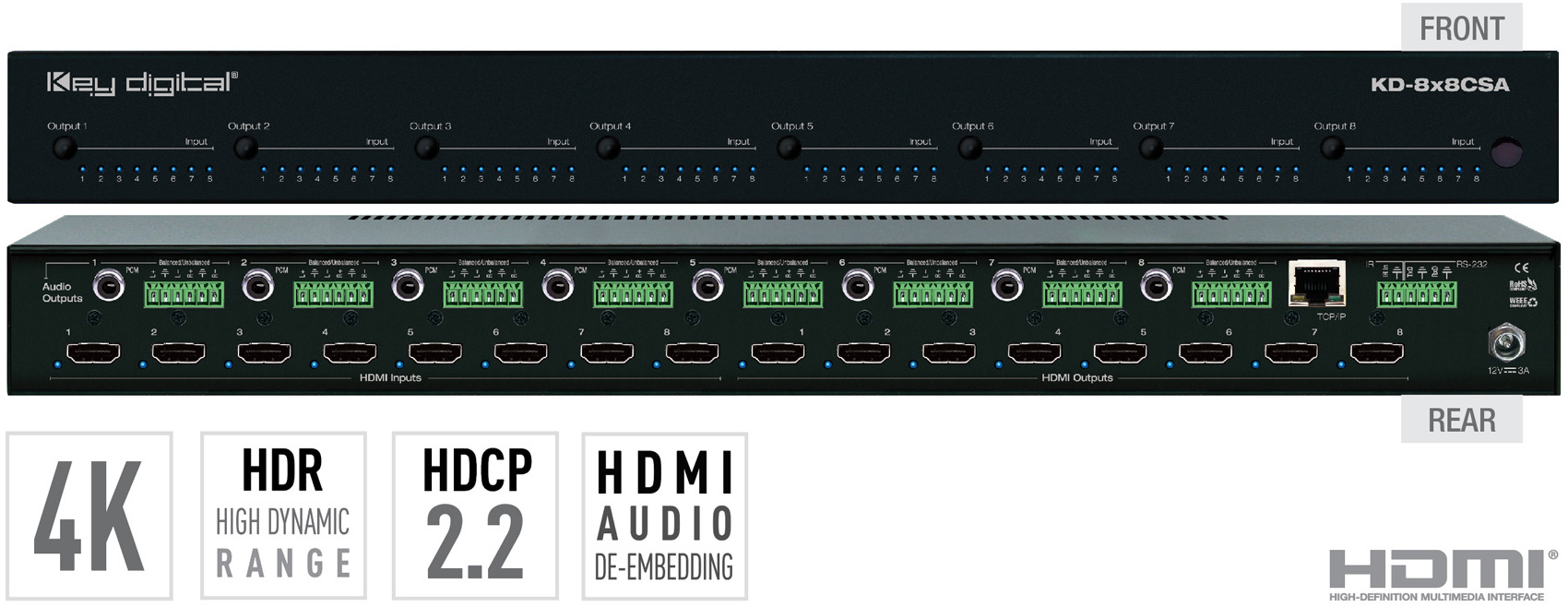

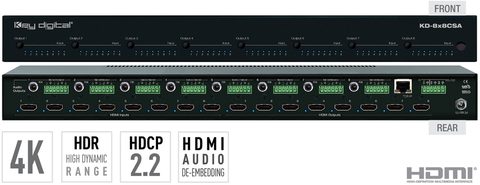

KD-8X8CSA 8x8 4K HDMI Matrix Switcher, Audio De-embedding of Analog

8x8 4K HDMI Matrix Switcher, Audio De-embedding of Analog L/R Balanced/ Unbalanced & Digital Coaxial Audio, HDR, HDCP2.2

KD-8X8CSA
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
John Peterson · Innovative Sales Solutions | Lakewood Tavern

8x8 4K HDMI Matrix Switcher, Audio De-embedding of Analog L/R Balanced/ Unbalanced & Digital Coaxial Audio, HDR, HDCP2.2

Find a Distributor

Free, no-commitment pricing. Typical reply within one business day.

KD-8X8CSA


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Get a Quote

KD-8X8CSA

Tell us a couple of details and we’ll come back with pricing within one business day. No phone calls until you say so.

By submitting, you agree to be contacted by Key Digital about this request.

Urgent? Call +1 914-667-9700, M–F 9–5 ET.

introduction


Features

Key Features:
  • HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
  • Audio De-Embedding: Audio from the selected HDMI input is de-embedded through the Coax digital (PCM) or Analog L/R Balanced/Unbalanced
  • 4K/UHD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR (High Dynamic Range): More life-like images through a greater range of luminance levels
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA).
  • Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
  • 3D Ready: Capability to pass 3D stereoscopic signal formats
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: Internal library with 15 default EDID configurations for input, in addition to native EDID data for any Output/Display
  • TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby Atmos
  • Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
  • Control System Support: Key Digital® App ready. Compass Control® ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API: AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App

Additional Features


specifications


accessories

  • Power Supply (qty 1) 12V/3A, 36W, desktop type, model KDSP12V2ASC

specifications


accessories

  • Power Supply (qty 1) 12V/3A, 36W, desktop type, model KDSP12V2ASC
