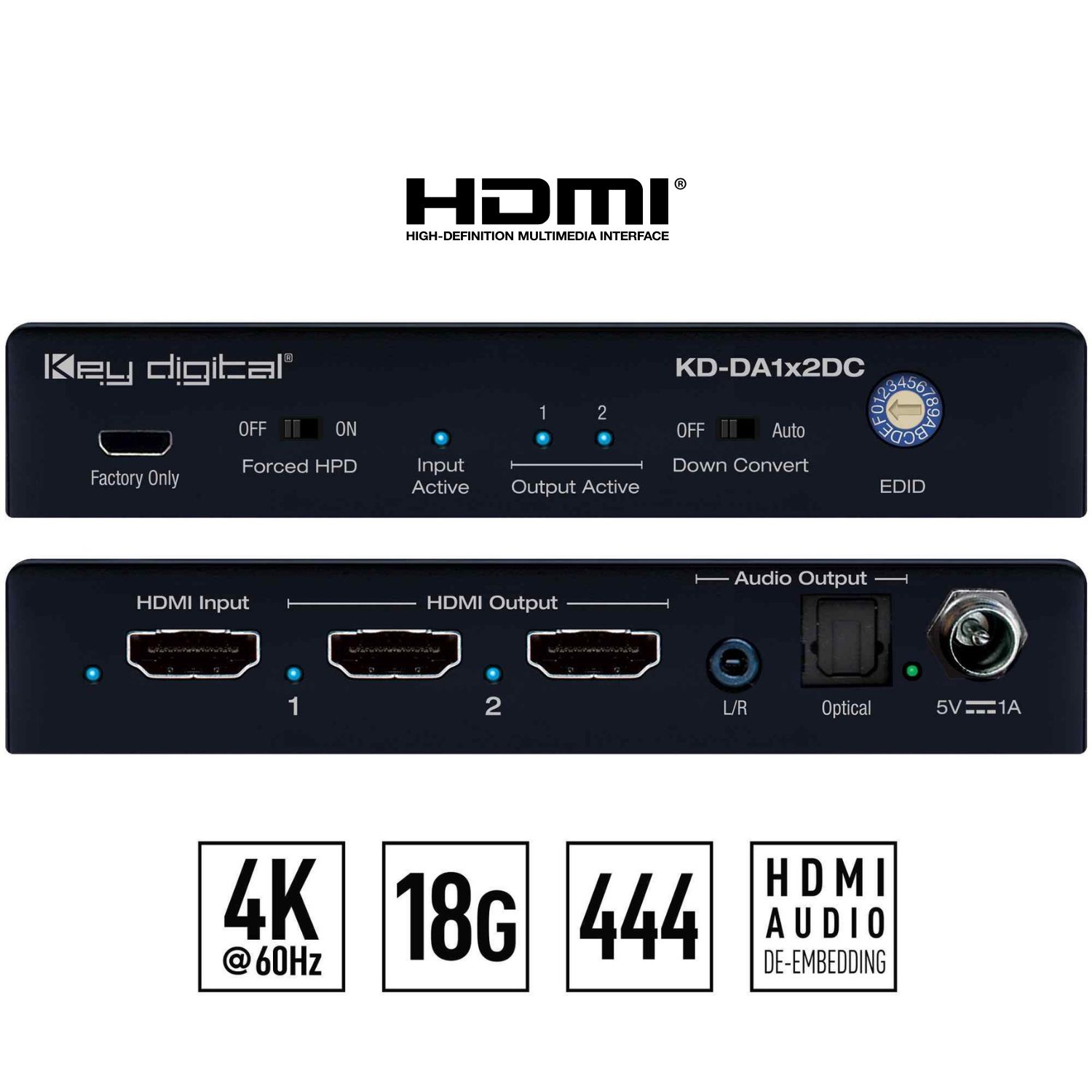

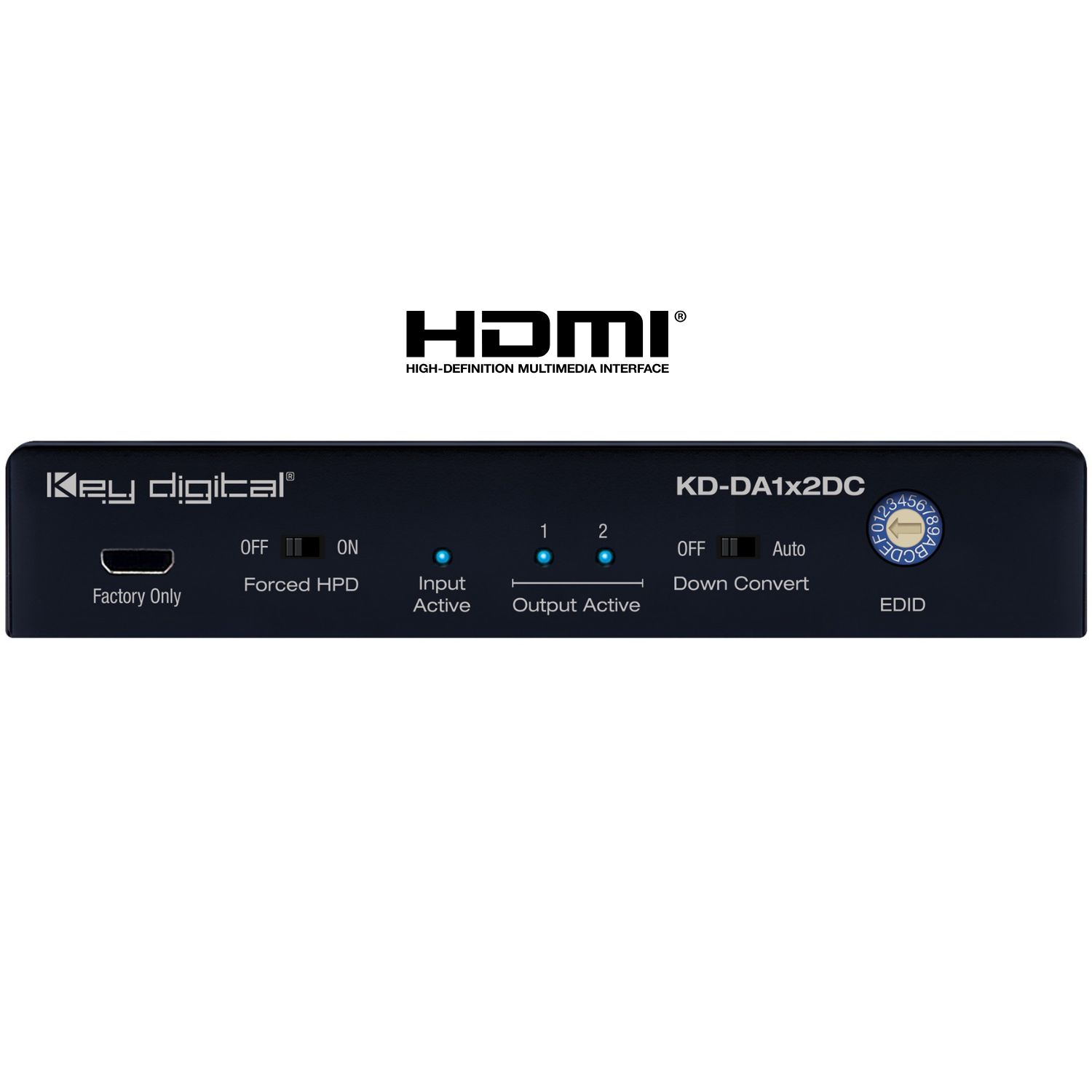

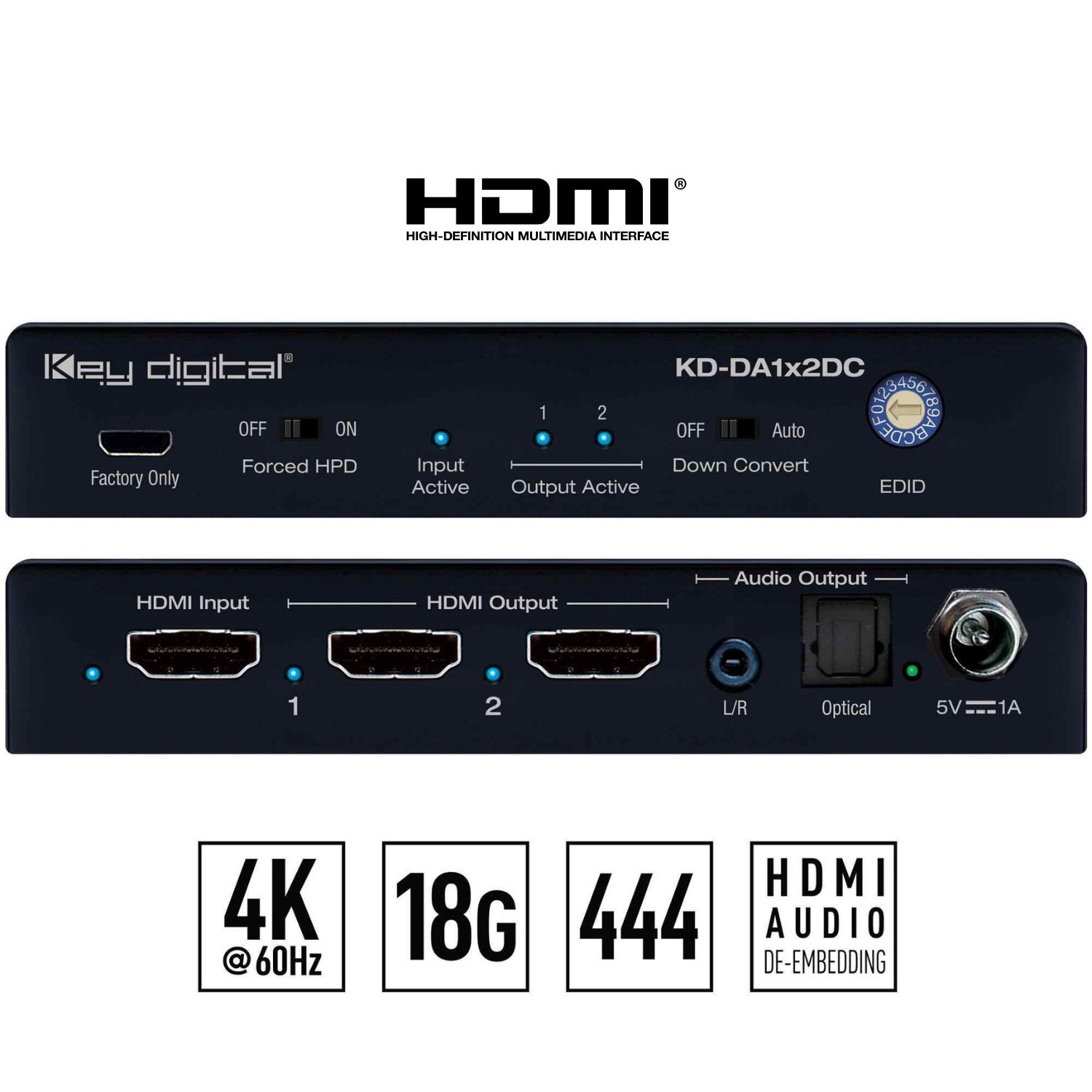

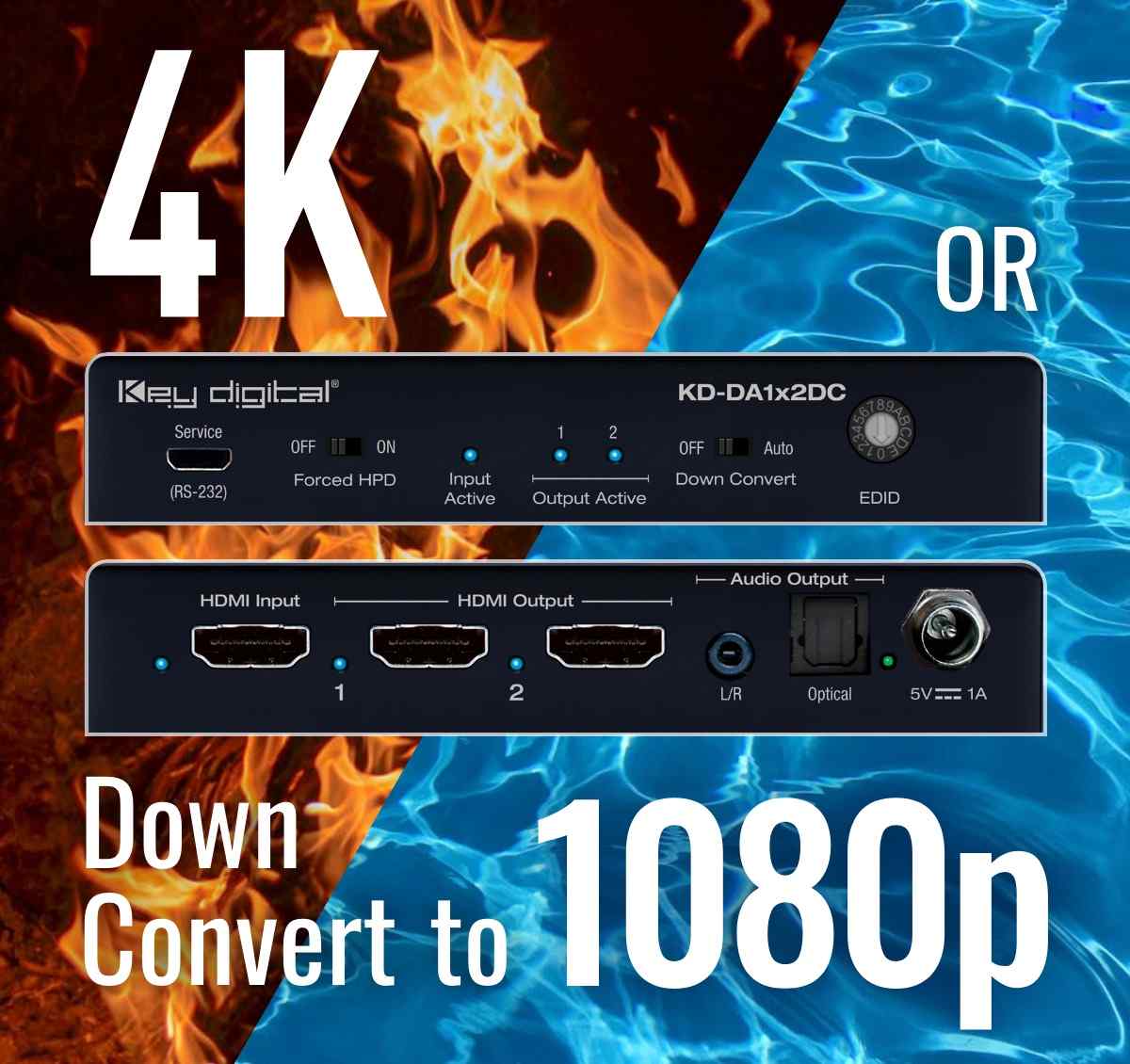

KD-DA1x2DC

2 Output HDMI Splitter Distribution Amp

  • Feeds video source to 2 HDMI displays
  • 4K to 1080p conversion option for easy integration with legacy displays
  • Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD
  • De-embeds audio for ease of integration with audio systems and soundbars
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2

introduction

KD-DA1x2DC is an HDMI splitter/distribution amplifier with 4K 18G resolution signal support and a 4K to 1080p resolution down conversion option. This enables a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support.

The KD-DA1x2DC stands out for its professional integration tools and versatile audio de-embed ports. It also features intelligent EDID management.

These features make it a reliable and cost-effective choice for a wide range of professional installations.

High-Quality Audio-Video Integration

The KD-DA1x2DC is engineered to deliver superior quality, performance, and reliability, all at an affordable price.

We specifically designed it for easy integration into professional audio-video installations. It's suitable for everything from digital signage to surveillance monitoring applications and beyond.

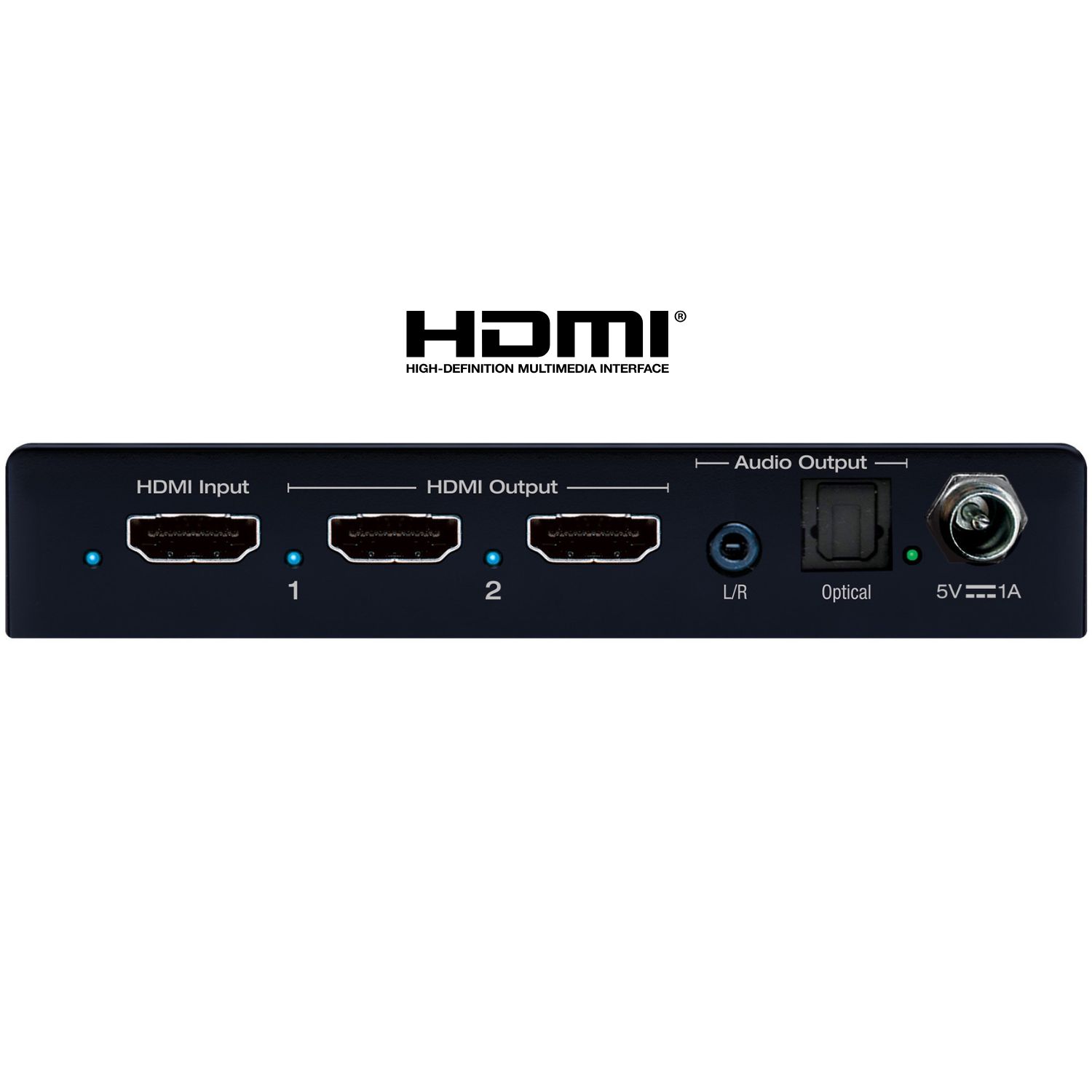

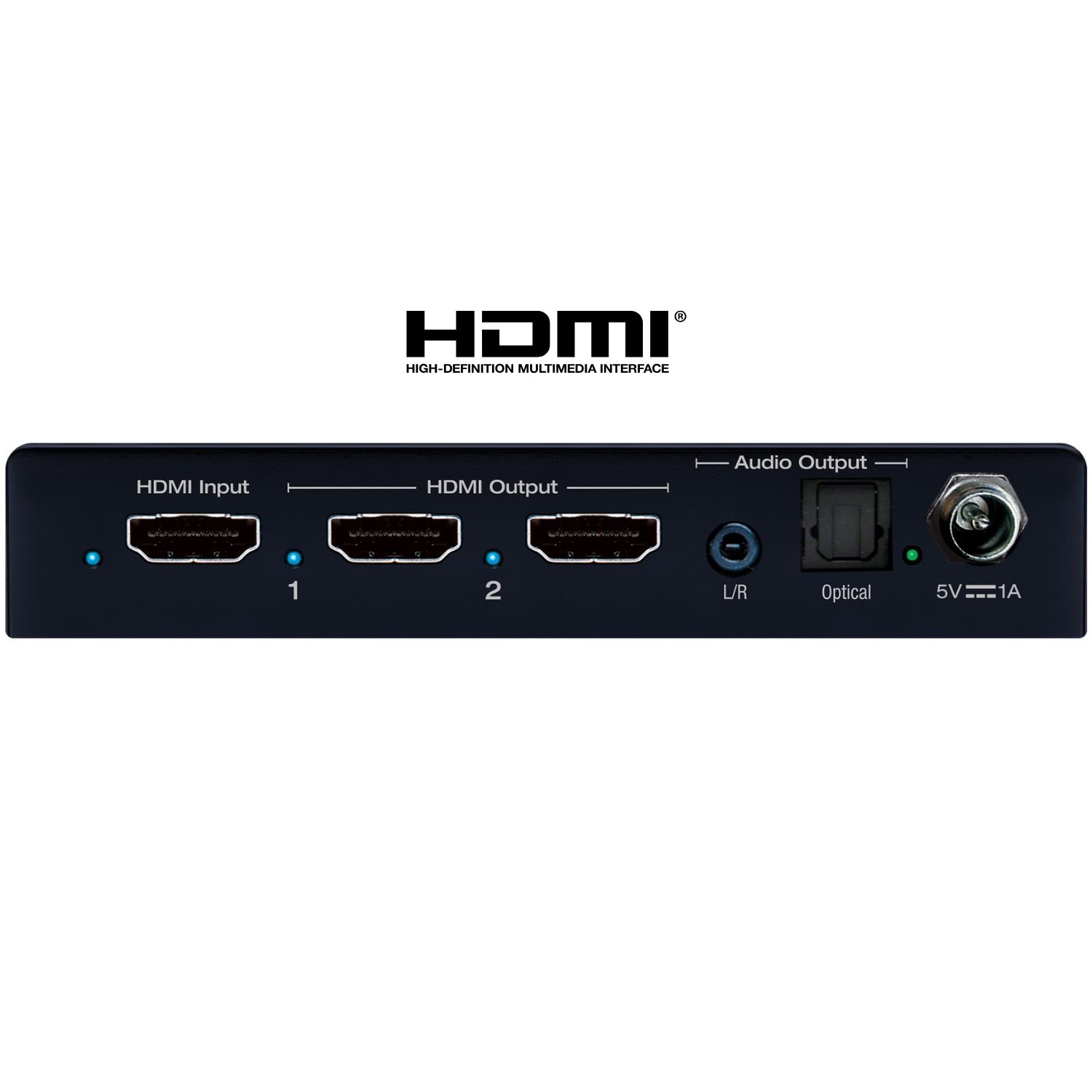

Versatile Audio De-embed Ports

The KD-DA1x2DC HDMI audio splitter includes L/R analog and optical digital audio de-embed ports.

This allows for integration with amplifiers, distributed audio systems, or sound bars. A flexible and comprehensive audio solution for any setup!

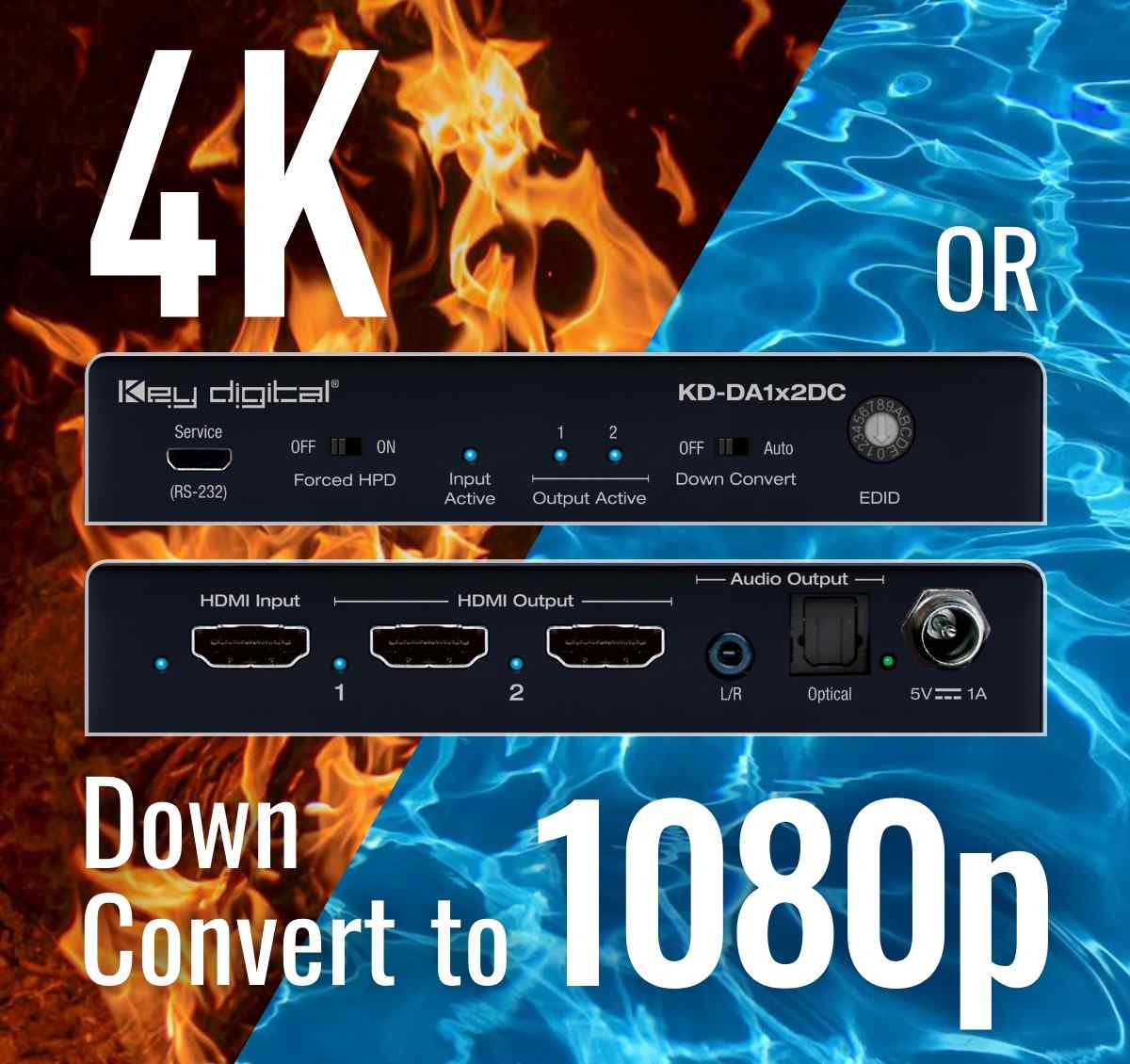

Support for Ultra high-def Video

The KD-DA1x2DC supports up to 4K/UHD video resolutions with 4:4:4 chroma sub-sampling, 12-bit deep color, and HDR support.

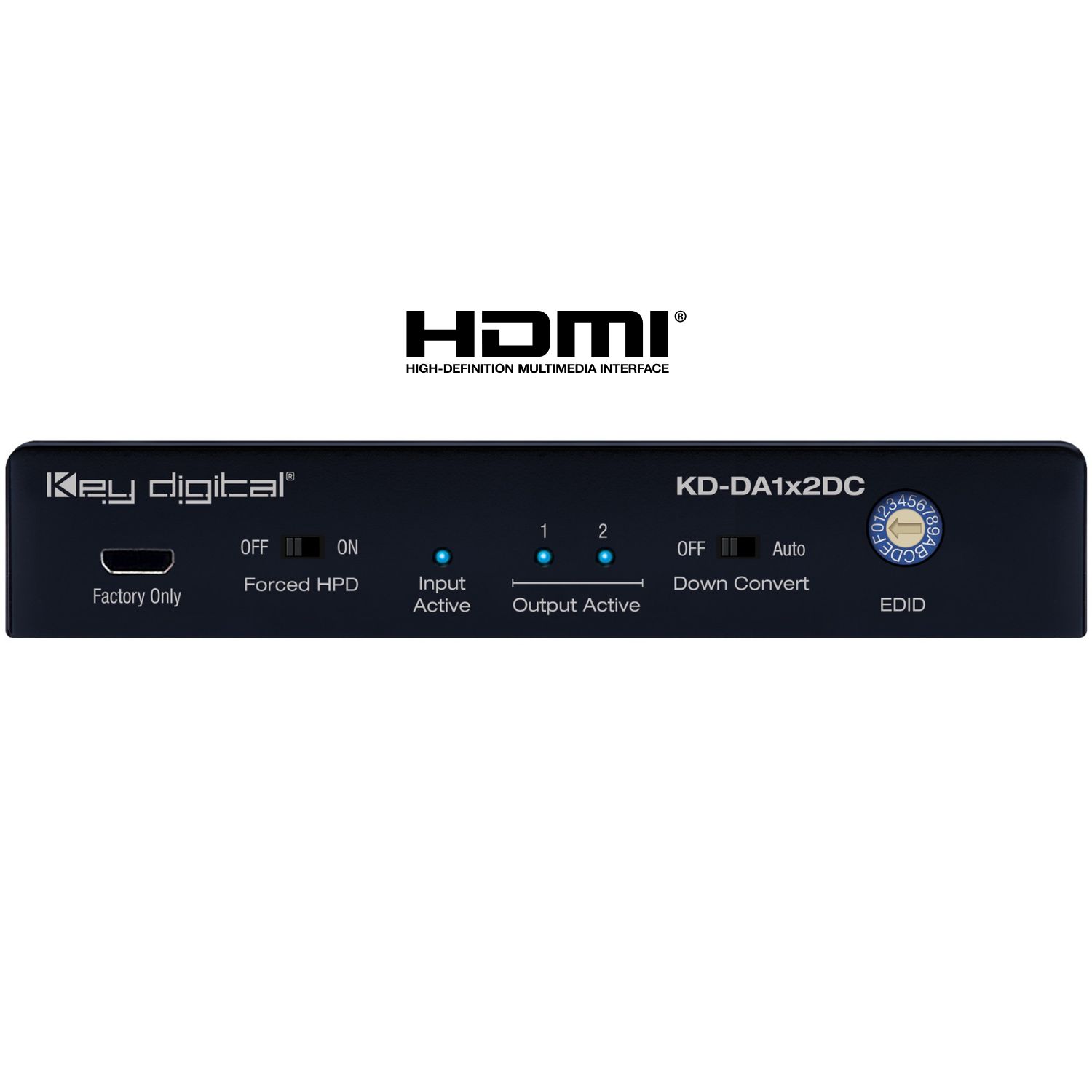

Intelligent EDID Handshaking

To address common HDMI handshaking and integration challenges, the KD-DA1x2DC features EDID handshaking and Forced Hot Plug Detection professional tools for a smooth and hassle-free integration experience.

Features

  • HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays

  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

  • 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display

  • Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors

  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1

  • Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®

Additional Features

  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2

  • HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels

  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

  • CEC Disconnect: Prevents unwanted control of source

downloads

Operation Manual

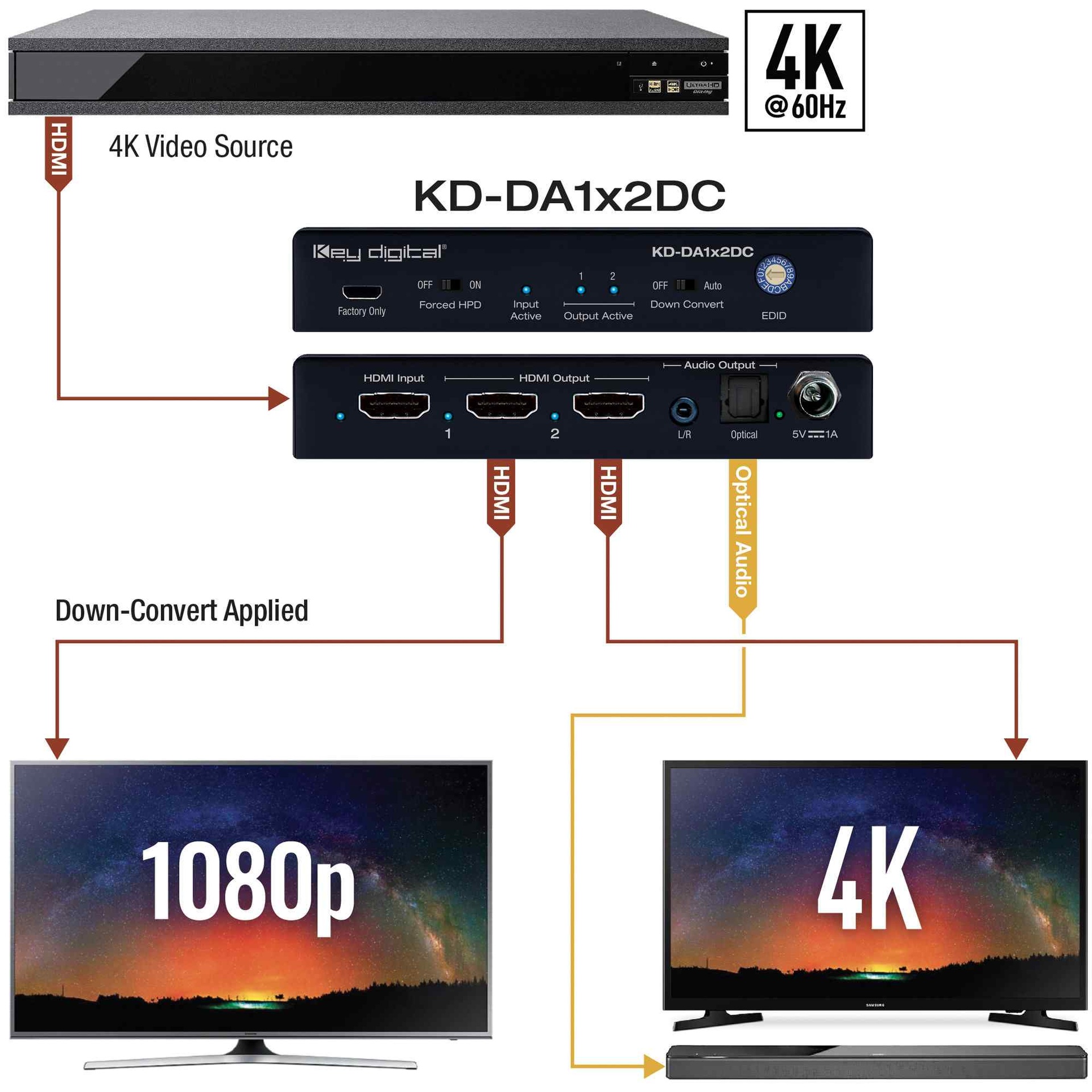

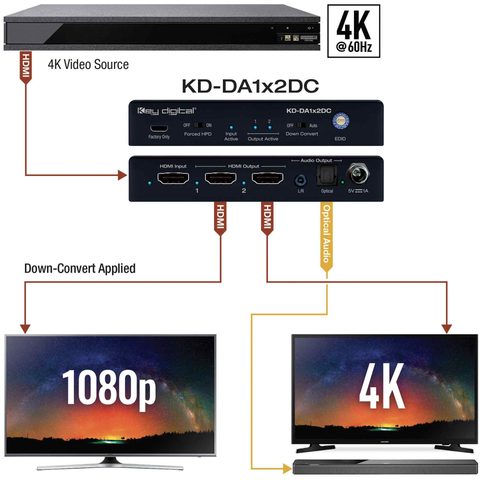

Application Example
Catalog Page

Diagrams

Application Example

specifications

Technical:

  • Input: HDMI Connector, Type A, 19 Pin Female

  • Output (Each): HDMI Connector, Type A, 19 Pin Female

  • Bandwidth: TMDS bandwidth 18 Gbps

  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)

  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p

  • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,

  • Interchangeable head, screw-in connector


General:

  • Regulation: CE, RoHS, WEEE

  • Enclosure: Black Metal

  • Product Dimensions: 4.96” x 2.74” x 0.91”

  • Packaging Dimensions: 8.27” x 5.67” x 3.15”

  • Product Weight: 0 .45 lb

  • Shipping Weight: 1 .12 lb

accessories

  • Power Supply: 5V/1A (5W) DC power jack, screw-in type. Model SK01T-0500100Z
  • Mounting Brackets: 2 L-shaped

specifications

Technical:

  • Input: HDMI Connector, Type A, 19 Pin Female

  • Output (Each): HDMI Connector, Type A, 19 Pin Female

  • Bandwidth: TMDS bandwidth 18 Gbps

  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)

  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p

  • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,

  • Interchangeable head, screw-in connector


General:

  • Regulation: CE, RoHS, WEEE

  • Enclosure: Black Metal

  • Product Dimensions: 4.96” x 2.74” x 0.91”

  • Packaging Dimensions: 8.27” x 5.67” x 3.15”

  • Product Weight: 0 .45 lb

  • Shipping Weight: 1 .12 lb

accessories

  • Power Supply: 5V/1A (5W) DC power jack, screw-in type. Model SK01T-0500100Z
  • Mounting Brackets: 2 L-shaped
