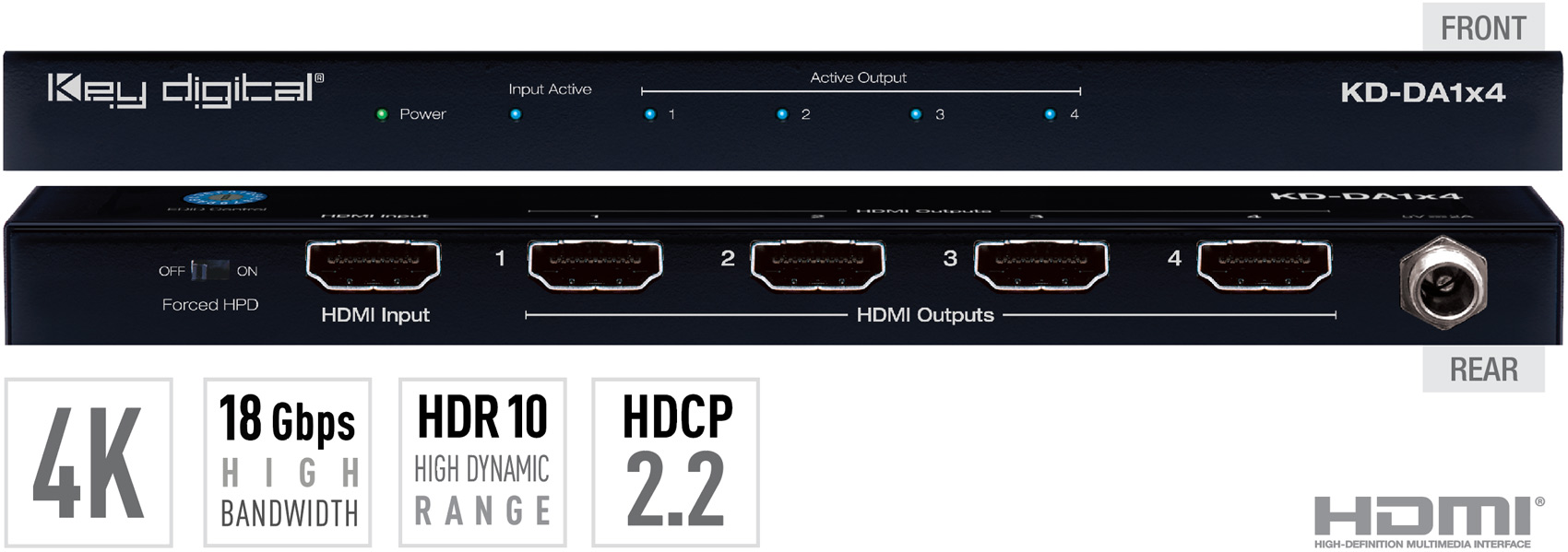

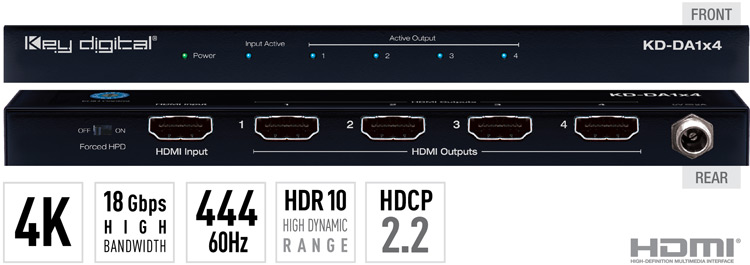

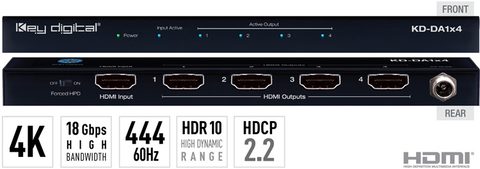

KD-DA1x4
1x4 4K/18G HDMI Distribution Amplifier. LEGACY - NEW MODEL KD-DA1x4X
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
where to purchase
introduction
Features
Key Features:
- Digital Distribution: 1 HDMI Source to 4 HDMI Displays
- Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Resolution Support: SD, HD, and VESA up to UHD/4K
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
- Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI
- I2C Communication: EDID and HDCP buffering from Display to Source
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
Additional Features
downloads
KD-DA1x4_AppExample.pdf
KD-DA1x4_CatalogPage.pdf
KD-DA1x2_1x4_1x8_Manual.pdf
Diagrams
KD-DA1x4_AppExample.pdf
specifications
Technical:
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits/color
- DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
- KD-DA1x2/1x4 Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
- KD-DA1x8 Power Supply: KD-PS5V4A, 5V/4A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KD-DA1x2 - 4.9” x 2.5” x .55” KD-DA1x4 - 6.9” x 3.25” x .55” KD-DA1x8 - 10.75” x 4.01” x 0.67”
- Packaging Dimensions: KD-DA1x2 - 6.5” x 4.3” x 3.4” KD-DA1x4 - 8.25” x 4.75” x 3.6” KD-DA1x8 - 15.7” x 5.3” x 2.28”
- Product Weight: KD-DA1x2 - 0.5 lb KD-DA1x4 - 0.8 lb KD-DA1x8 - 1.5 lb
- Shipping Weight: KD-DA1x2 - 0.9 lb KD-DA1x4 - 1.4 lb KD-DA1x8 - 2.0 lb
accessories
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
- Mounting Brackets
technical documents
KD-DA1x4_AppExample.pdf
KD-DA1x4_CatalogPage.pdf
KD-DA1x2_1x4_1x8_Manual.pdf
Images and Diagrams
KD-DA1x4_AppExample.pdf
specifications
Technical:
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits/color
- DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
- KD-DA1x2/1x4 Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
- KD-DA1x8 Power Supply: KD-PS5V4A, 5V/4A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KD-DA1x2 - 4.9” x 2.5” x .55” KD-DA1x4 - 6.9” x 3.25” x .55” KD-DA1x8 - 10.75” x 4.01” x 0.67”
- Packaging Dimensions: KD-DA1x2 - 6.5” x 4.3” x 3.4” KD-DA1x4 - 8.25” x 4.75” x 3.6” KD-DA1x8 - 15.7” x 5.3” x 2.28”
- Product Weight: KD-DA1x2 - 0.5 lb KD-DA1x4 - 0.8 lb KD-DA1x8 - 1.5 lb
- Shipping Weight: KD-DA1x2 - 0.9 lb KD-DA1x4 - 1.4 lb KD-DA1x8 - 2.0 lb
accessories
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
- Mounting Brackets
