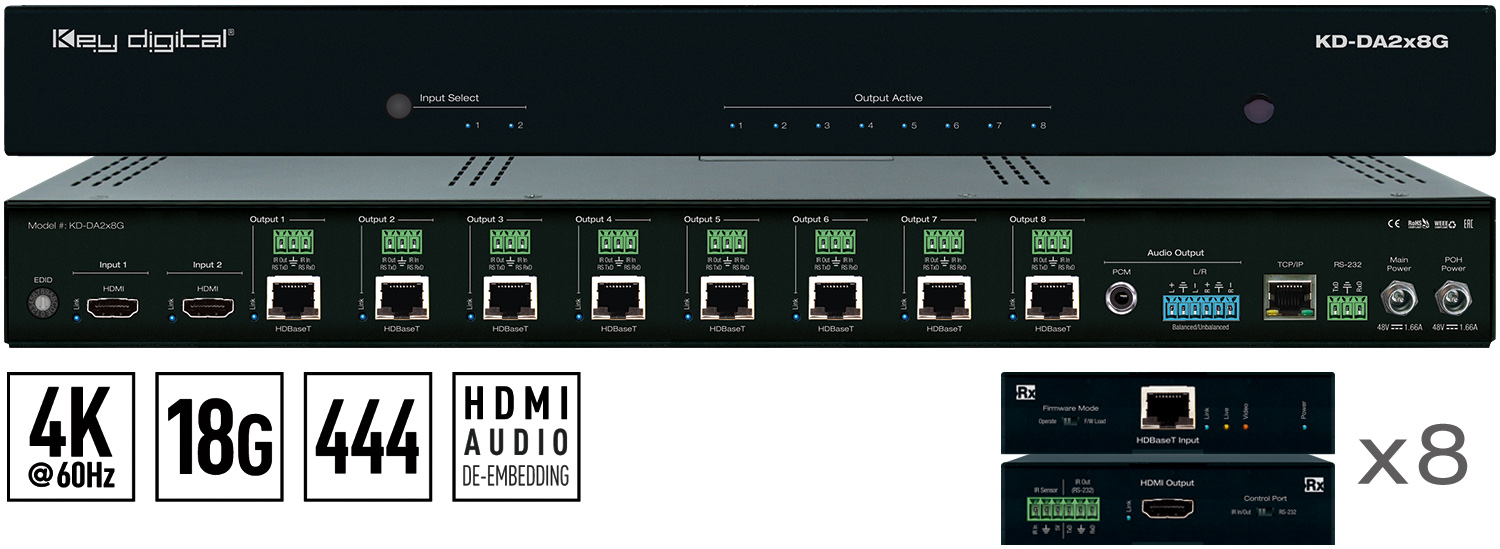

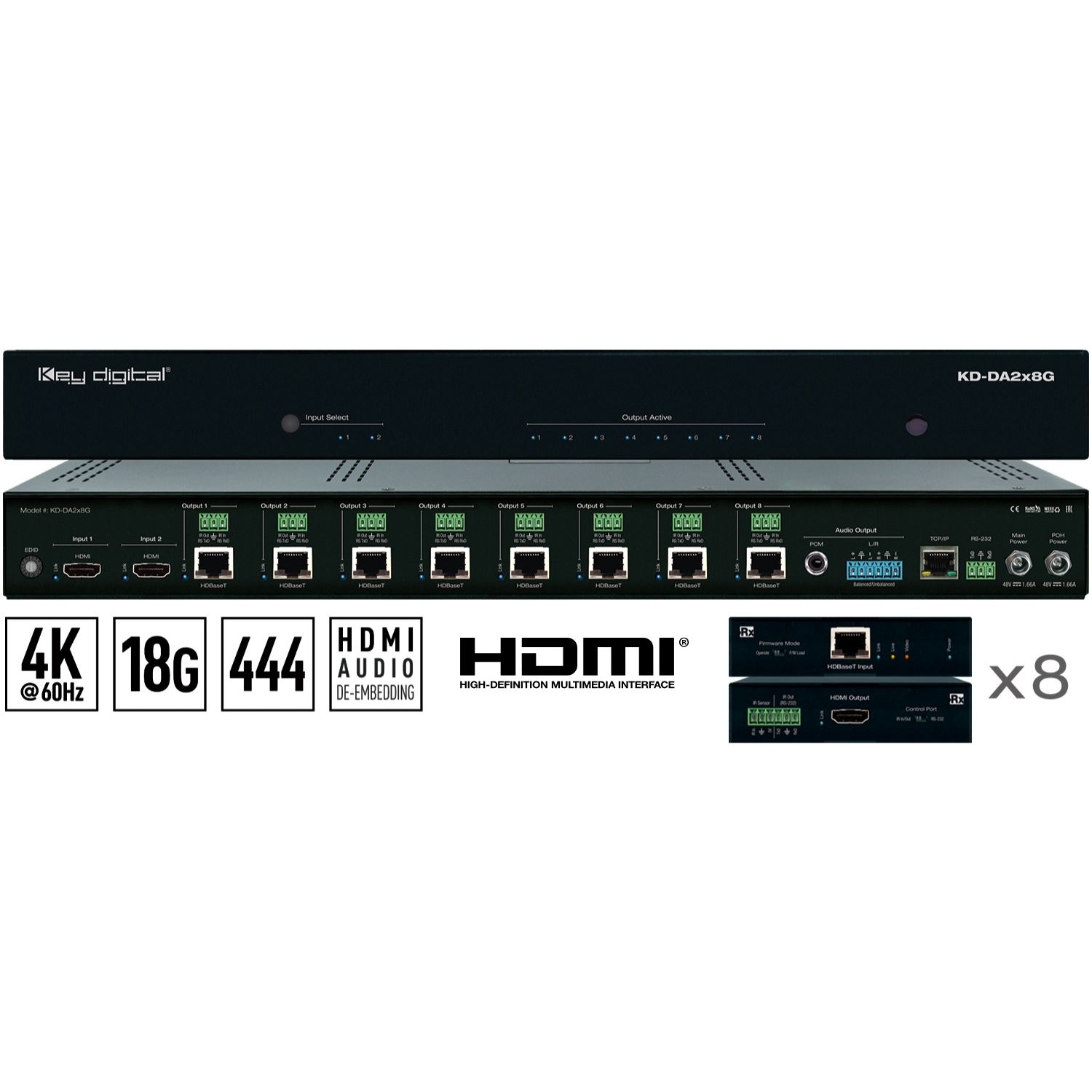

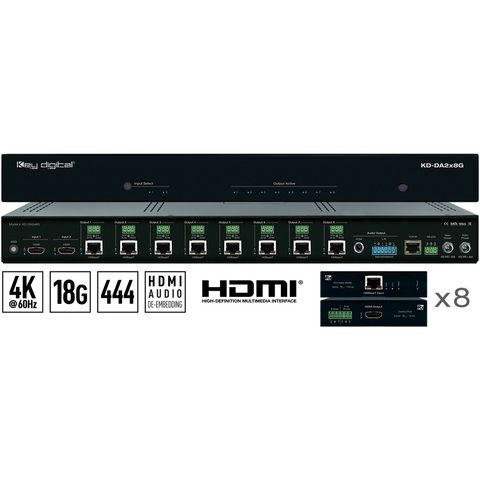

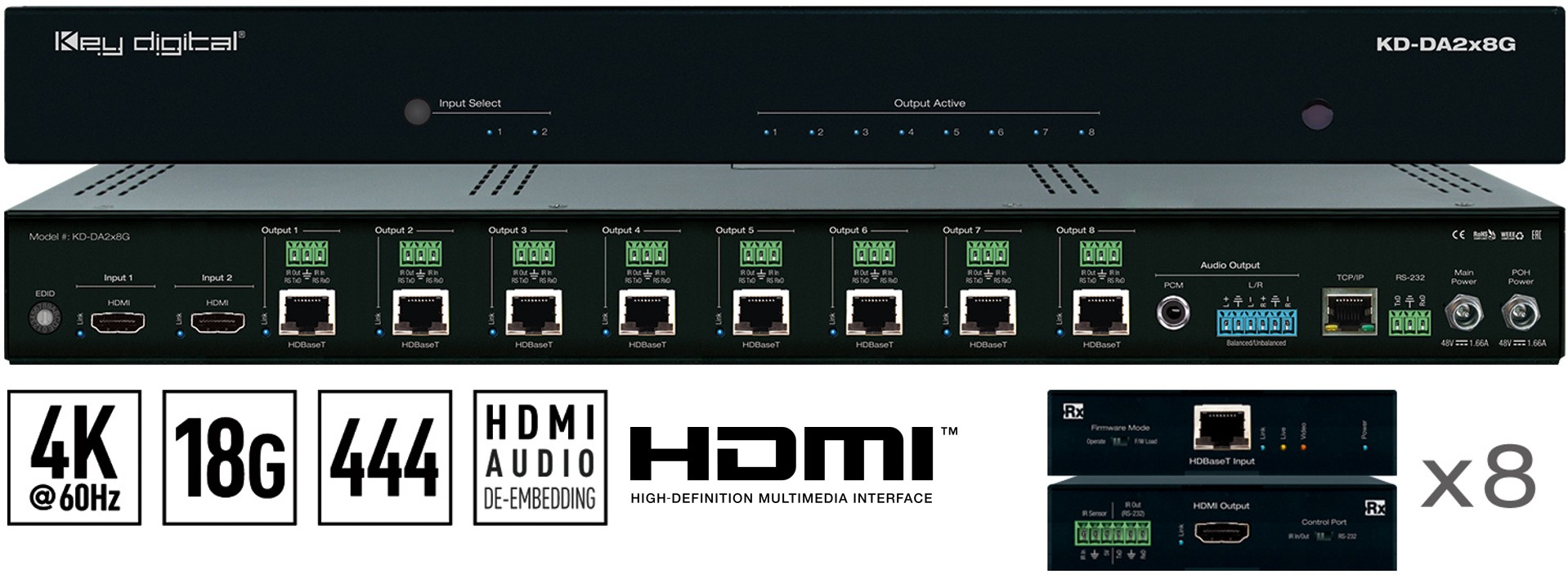

KD-DA2x8G HDMI Switcher Splitter over CAT6 Set
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
HDMI Switcher Splitter over CAT6 Set
Find a Distributor
Free, no-commitment pricing. Typical reply within one business day.
KD-DA2x8G
Switch between two HDMI sources with push button or free app
Sends selected source to 8 video displays up to 328ft / 100m away
Kit includes all 8 Rx units
De-embeds audio from selected source
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
introduction
Key Digital’s KD-DA2x4G and KD-DA2x8G are 18Gbps and HDCP2.2 supporting HDMI Switcher + Distribution Amplifier kits with HDBaseT output and 4/8 Rx units included. The KD-DA2x4G/KD-DA2x8G kit is designed for applications such as Digital Signage and other professional AV installation types, where the selected HDMI source is distributed to up to 4/8 displays. All connected displays show the same image at the same time. The 4/8 KD-XDALRx HDBaseT Rx extenders are all powered via HDBaseT from the KD-DA2x4G/2x8G unit, and support extension of resolutions up to UHD/4K up to 250 ft. (76m) using CAT5e/CAT6/CAT6A/CAT7. 1080p resolutions may be extended up to 328 ft. (100m). KD-DA2x4G/KD-DA2x8G is easily integrated into professional AV systems with the audio from the selected source being de-embedded on analog and digital audio connectors, and switching controllable via TCP/IP, RS-232 or IR. KD-DA2x4G/KD-DA2x8G is Key Digital App ready and also controllable by control systems such as Compass Control Pro. EDID handshaking is easily selected via front panel rotary dial and all UHD/4K EDID handshake files include HDR header information.
Features
- HDMI Switching & Distribution: 2 HDMI sources to 8 HDBaseT outputs
- Power over HDBaseT: All included Rx units powered by the main unit
- UHD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Signal Extension: For resolution and cable quality
- 4K/UHD: Up to 250 ft. (76m) using CAT5e/CAT6/CAT6A/CAT7
- 1080p: Up to 328 ft. (100m) maximum
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
- Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
- Audio De-embedder: Audio of the selected HDMI input is de-embedded at the Coax digital (PCM) and Analog L/R balanced/unbalanced connectors
- Control Pass-Thru: 8 three pin phoenix connectors for bi-directional IR or RS-232 for each HDBaseT output. 8 IR sensors and IR emitters included
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from an Output/Display 1
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
- Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
- Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
- Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® iOS App and Key Digital Management Software™ Pro (KDMS™ Pro) PC Software
Additional Features
High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision -HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
EDID: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from an Output/Display 1
Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
downloads
Owner's Manual
Quick Setup Guide
Catalog Page
Hi-res Photo
Diagrams
Application Example
control drivers
Elan
Control4
URC
specifications
Technical:
- Inputs (2): 1 HDMI Connector, Type A, 19 Pin Female
- Outputs (4/8): 1 HDBaseT, Valens VS100 Class A, RJ45 Female
- Output (1): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz; Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 48KHz
- Control Pass-Thru (Main Unit): 3-Pin Terminal Block for IR or RS-232 supporting voltage levels from +0.1V to +12V
- Control (Rx Unit): IR In and Out on Phoenix Connector 5V IR sensor power. RS-232 on 3-Pin Phoenix connector
- Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
- Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
- Audio Bandwidth: 20Hz to 20kHz @ 0dBu
- TND + Noise: 0.33% @0dBu @ 1kHz » PCM Max Input Level: 1Vpp on 75Ω, AC coupling
- PCM Max Output Level: 1Vpp on 75Ω, DC coupling
- DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
- Wired IR: modulated IR signal input, 0-5V TTL or -10to +10V
- Power: +48V/1.66A, 80W
- Regulation: CE, RoHS, WEEE, EAC
- Rack Mount: 1U, 1 Rack Width (rack ears included)
- Enclosure: Black Metal
- Product Dimensions: 17.3 x 5.25 x 1.72” (440 x 133.5 x 43.8 mm)
- Shipping Carton Dimensions: 20 x 10 x 5.7” (510 x 255 x 145 mm)
- Product Weight: 6 lb
- Shipping Weight: 9 lb
- Accessories: IR Remote, UL Certified Power Supply
accessories
- Power Supply (qty 2) 48V/1.66A, 80W, desktop type, model KDSP80W48VC
- Rack ears and screws
- KD-RMSWPROK remote control
- Qty 4/8 IR Emitters
- Qty 4/8 IR Sensors
- Qty 5/9 3-pin terminal blocks for IR/RS-232
- 6-pin terminal block for analog audio
- Quick Setup Guide
