introduction



Features

Key Features:
  • HDMI Correction: Resolves common HDMI integration obstacles related to HDCP, EDID, Hot Plug Detection, and bandwidth
  • Compress/Decompress: Pair units to compress and decompress 18Gbps video signals and extend via legacy 10.2Gbps cabling
  • Boost Mode: High equalization option on HDMI input for repair of degraded incoming signals
  • Cabling Extension: Works with HDMI cabling for extension of 4K/UHD signals with HDR10 up to 75 ft / 23m in or out. Maximum one active/directional HDMI cable may be used.
  • 4K/UHD Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4(up to 18Gbps bandwidth)
  • HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
  • HDCP2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Low Profile: Super compact chassis size
  • USB Powered: Low power consumption enables power from standard USB micro port
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
  • Auto-EQ: Precise signal equalization applied to input and output signals automatically delivers best possible picture quality
  • EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data of output/display
  • Forced HPD: Enables integrator to choose if active signal voltage is forced to connected input device
  • CEC and ARC Pass-thru: Enables inter-device communication signals via CEC, ARC, and HDMI Ethernet channels

Additional Features


downloads

KD-FIX418_Manual_Print_.pdf
KD-FIX418A_CatalogPage.pdf
KD-FIX418_AppExample.pdf

Diagrams

KD-FIX418_AppExample.pdf

specifications

Technical:

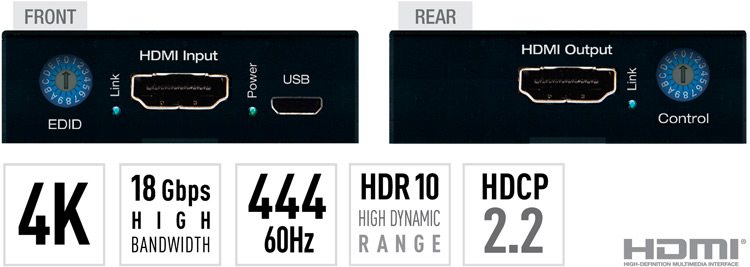

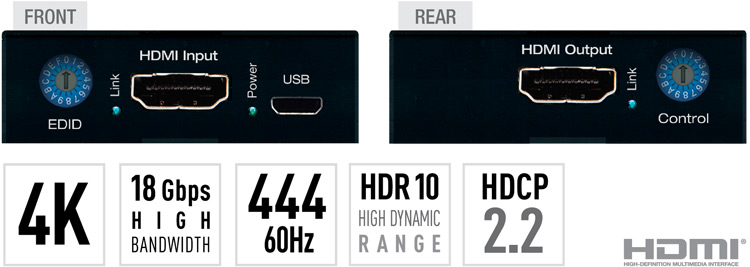

  • Input: HDMI Connector, Type A, 19 Pin Female
  • Output: HDMI Connector, Type A, 19 Pin Female
  • Bandwidth: TMDS bandwidth 18Gbps
  • Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits/color
  • DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
  • Power Supply: USB to micro USB cable (power adapter not included)

General:

  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black metal
  • Product Dimensions: 2.17” x 3.085” x 0.68”
  • Product Weight: 4 oz
  • Packaging Dimensions: 2.5” x 3.5” x 1”
  • Packaging Weight: 6 oz
