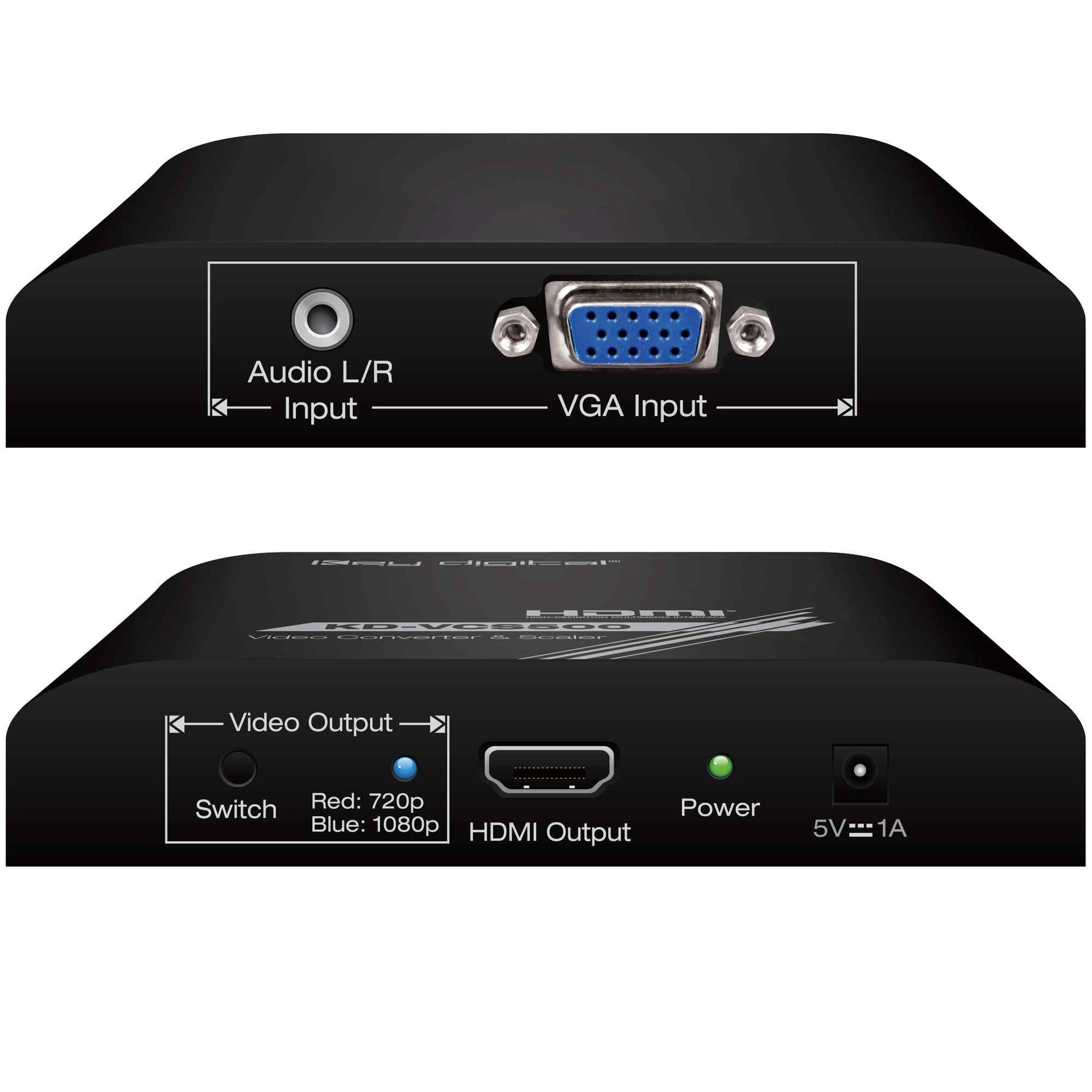

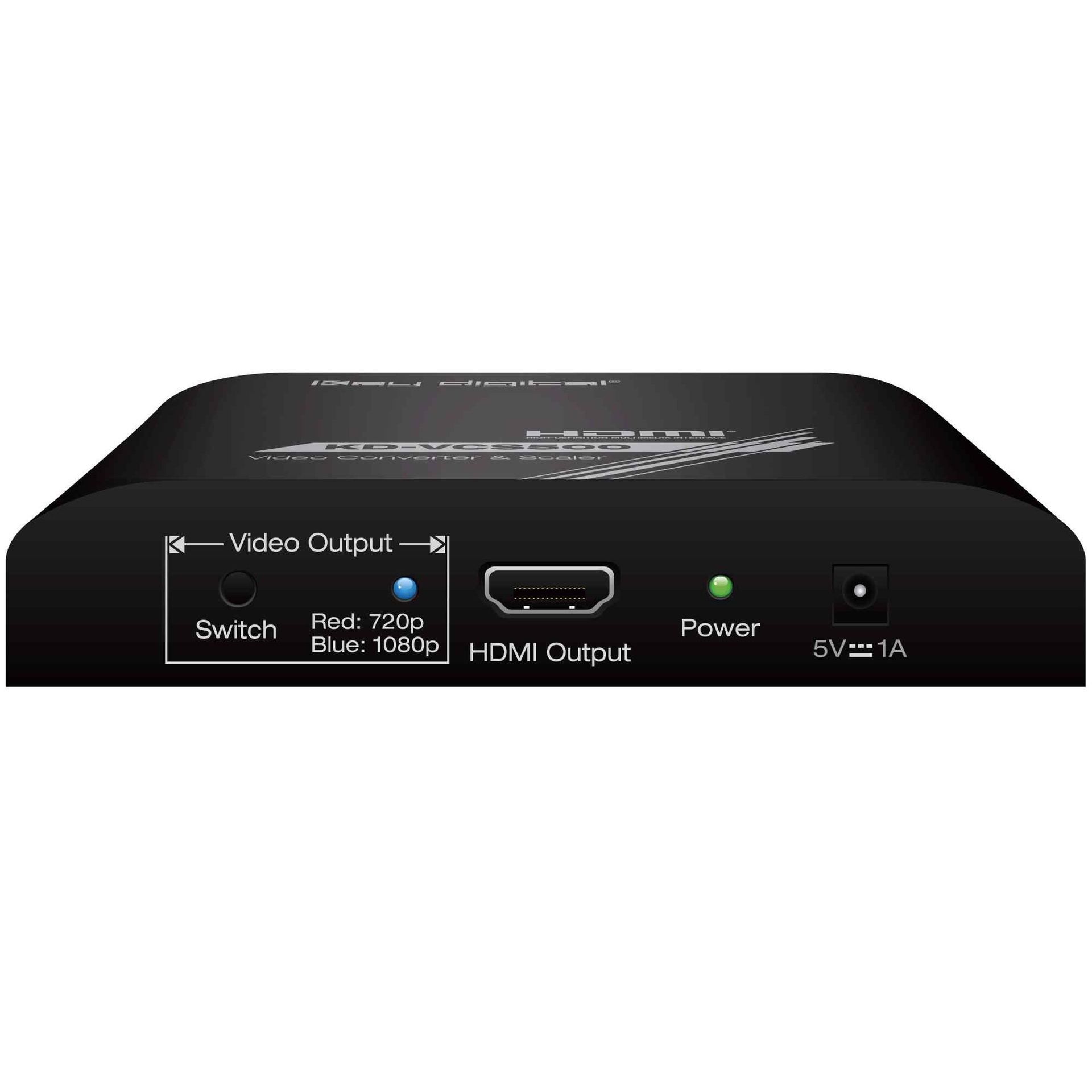

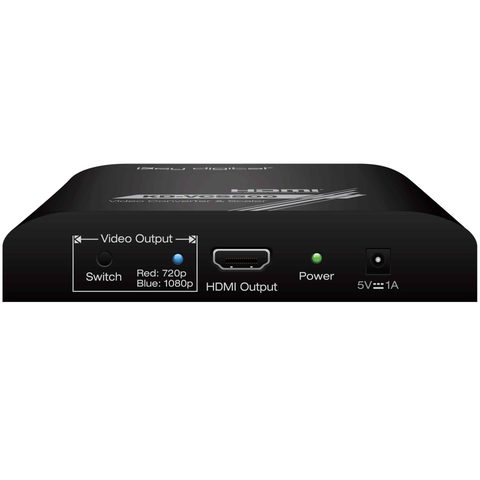

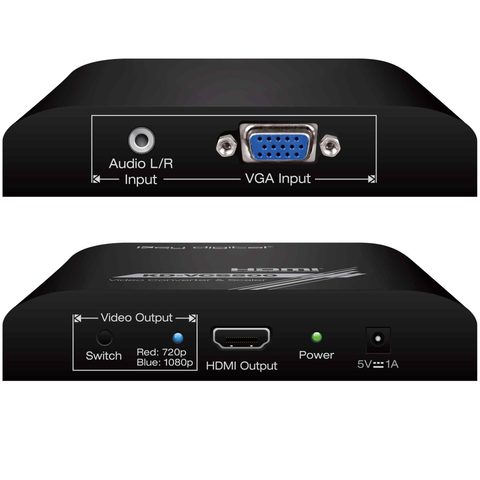

KD-VCS500

VGA to HDMI Converter Scaler

  • Converts VGA video and analog audio to digital HDMI video and audio

  • Embeds incoming analog audio onto the HDMI output

  • Upscales incoming signal to 720p or 1080p HDMI output

  • Wide variety of supported video resolutions on VGA input

Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2

introduction

VGA Analog to Digital Video Converter & Scaler. Accommodates legacy source connectivity by converting and scaling VGA video and analog audio to digital HDMI video and audio.

Features

  • Converts: VGA video and analog audio to digital HDMI video and audio

  • Embeds: Incoming analog audio onto the HDMI output

  • Up-scales: VGA resolutions to 720p or 1080p

  • Supports the following VGA resolutions: 640x480@60, 800x600@60, 1024x768@60, 1152x864@60Hz, 1280x720@60, 1280x768@60, 1280x800@60, 1280x960@60, 1360x768@60, 1366x768@60, 1280x960@60, 1280x1024@60, 1440x900@60/75, 1600x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60

  • Resolution Selection: Simple switching between 720p and 1080p up-scaling with dual-color LED for easy identification of resolution mode

Additional Features

  • HDMI® and HDCP Licensing: Fully licensed and compatible with HDMI and HDCP

downloads

KD-VCS500_AppExample.pdf
KD-VCS500_CatalogPage_.pdf
KD-VCS500_Manual_.pdf

Diagrams

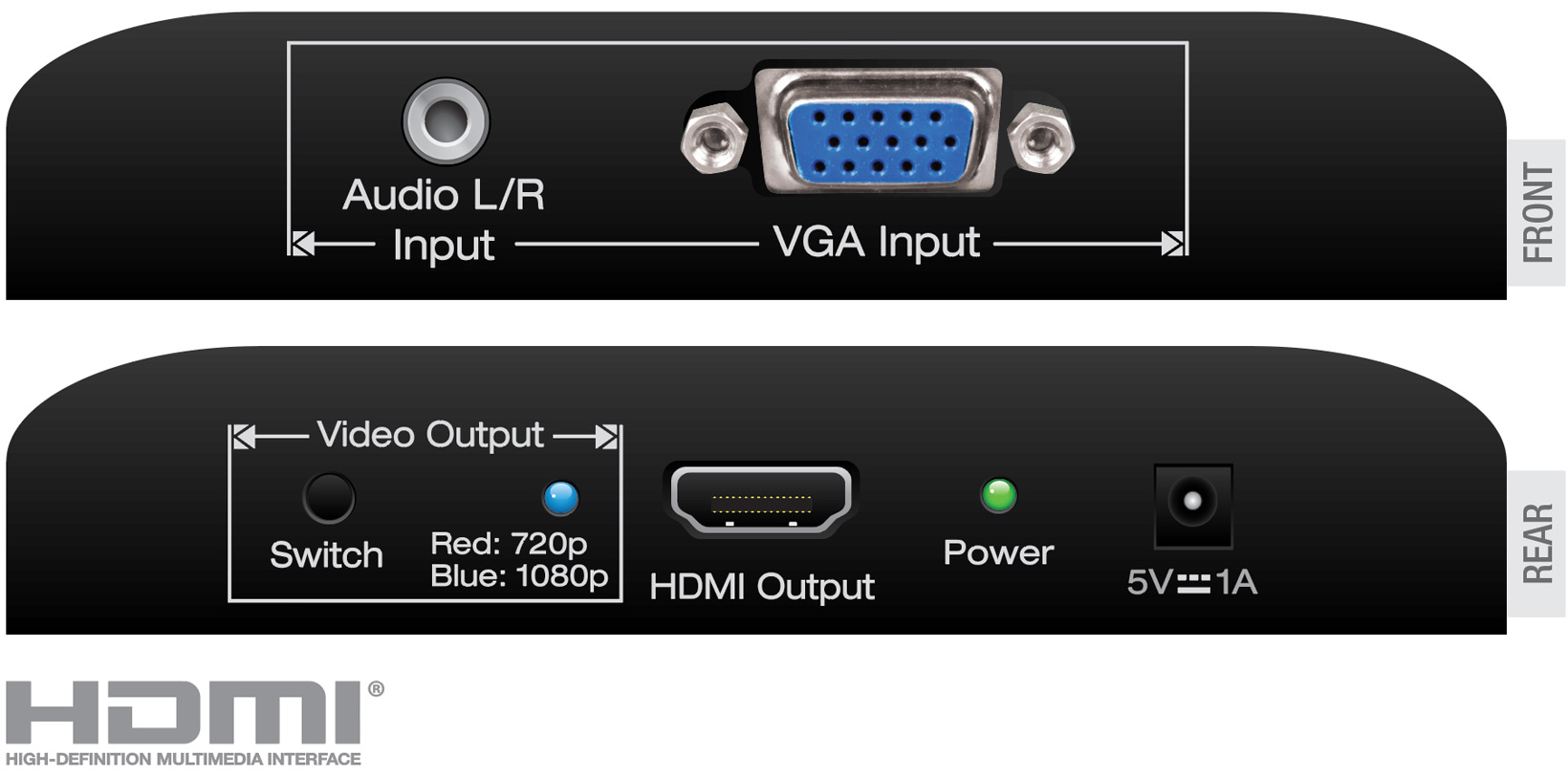

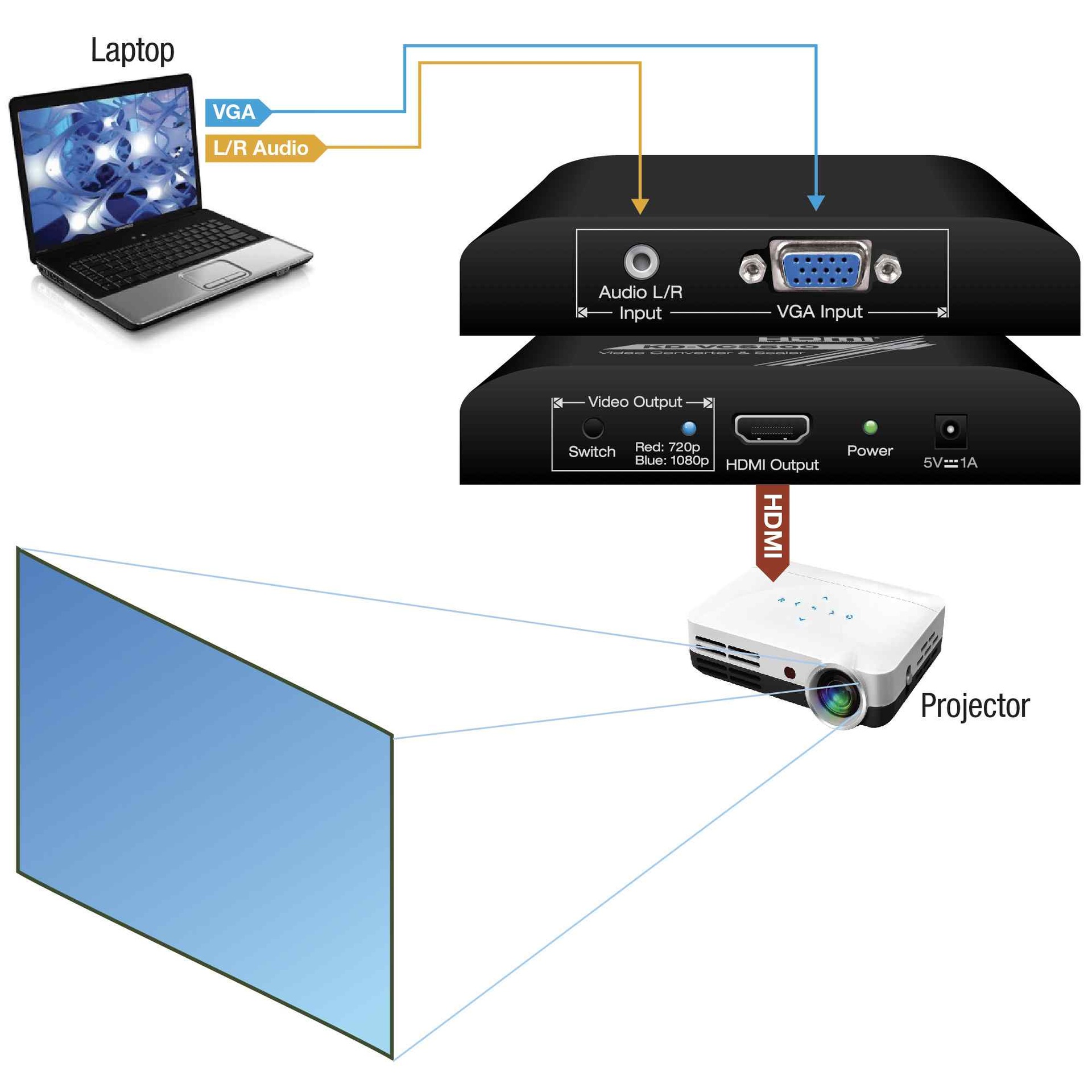

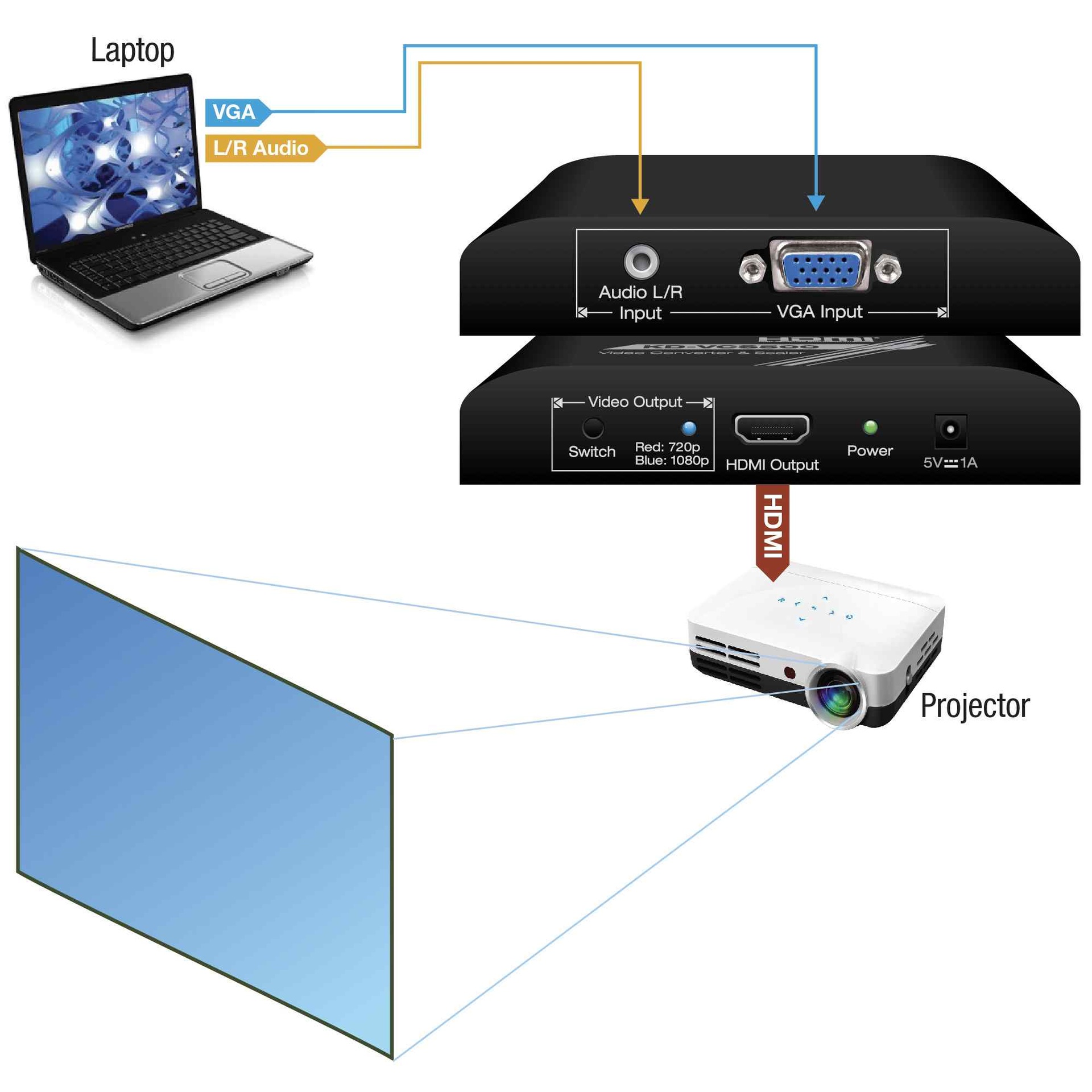

KD-VCS500_AppExample.pdf

specifications

Technical:

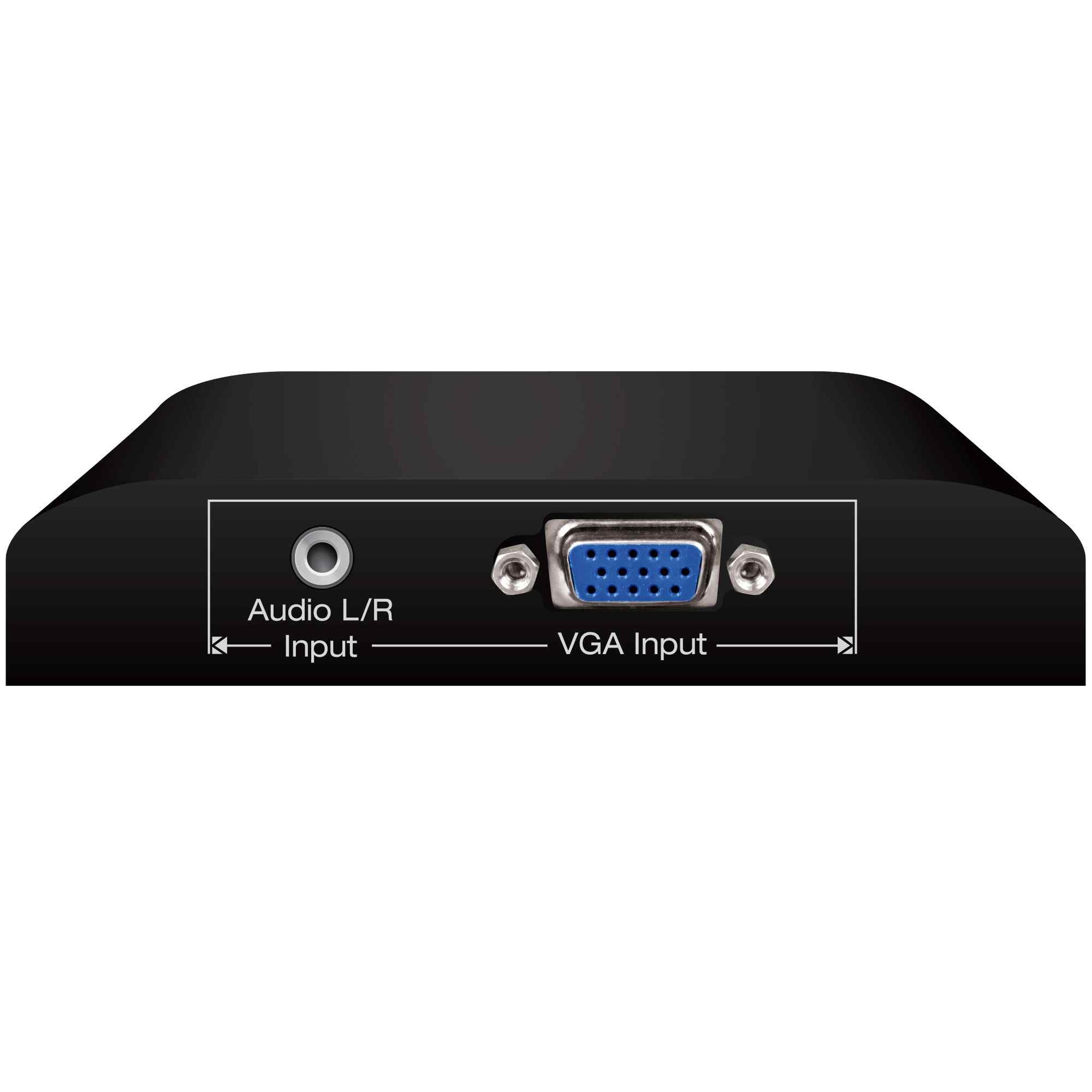

  • Inputs: 1 VGA, 1 3.5mm stereo audio
  • Outputs: 1 HDMI
  • Control: Pushbutton
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
  • Power Supply: KD-PS5V1A, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head

General:

  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Plastic
  • Product Dimensions: 4.68” x 2.91” x 0.9”, Weight: 0.8 lbs
  • Shipping Dimensions: 7” x 5.3” x 2.6”, Weight: 1 lb

accessories

  • Power Supply (qty 1) 5V/2A, 10W, wall type, model HYY-0501000U

specifications

Technical:

  • Inputs: 1 VGA, 1 3.5mm stereo audio
  • Outputs: 1 HDMI
  • Control: Pushbutton
  • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
  • DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
  • Power Supply: KD-PS5V1A, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head

General:

  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Plastic
  • Product Dimensions: 4.68” x 2.91” x 0.9”, Weight: 0.8 lbs
  • Shipping Dimensions: 7” x 5.3” x 2.6”, Weight: 1 lb

accessories

  • Power Supply (qty 1) 5V/2A, 10W, wall type, model HYY-0501000U
