KD-XWPS-2
HDMI USB-C over 50m CAT6 Wall Plate Extender Kit (Tx + Rx) with Audio De-Embed
- Auto Switching transmitter with HDMI and USB-C inputs
- Kit includes transmitter, receiver, power supply, decora plate, and screws
- Optional USB-C device powering with GMB36-120200-F power supply (sold separately)
- Extends 4K 18Gbps signals with HDR up to 164ft / 50m
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
where to purchase
introduction

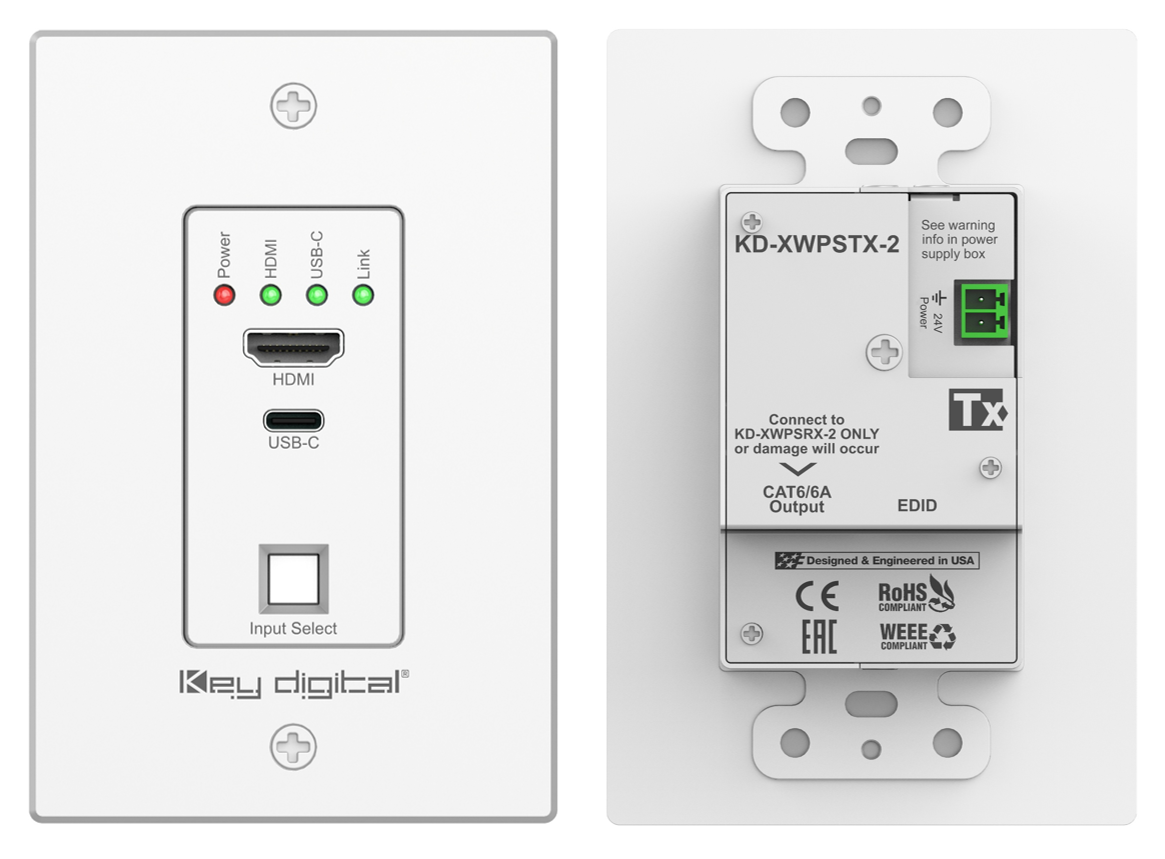

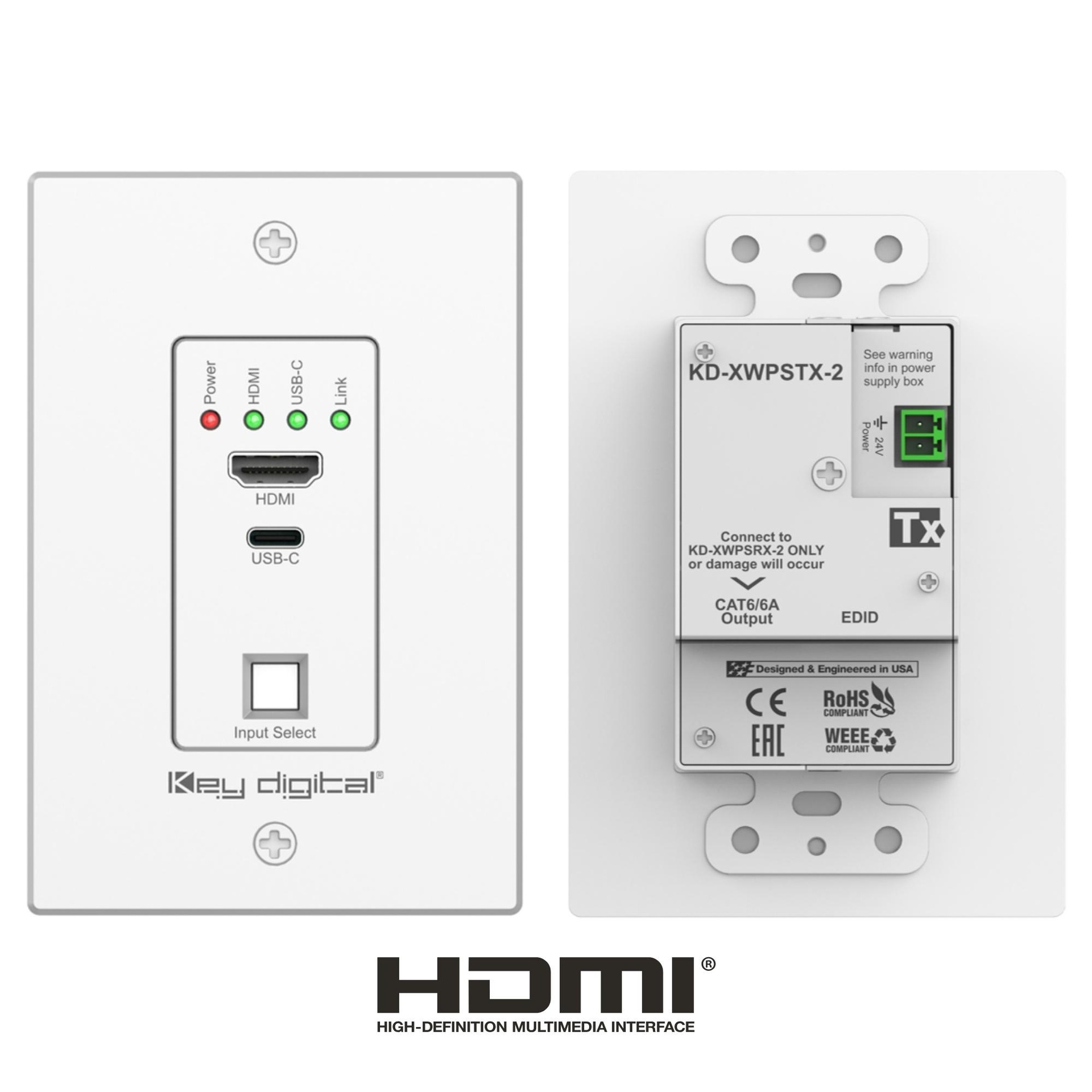

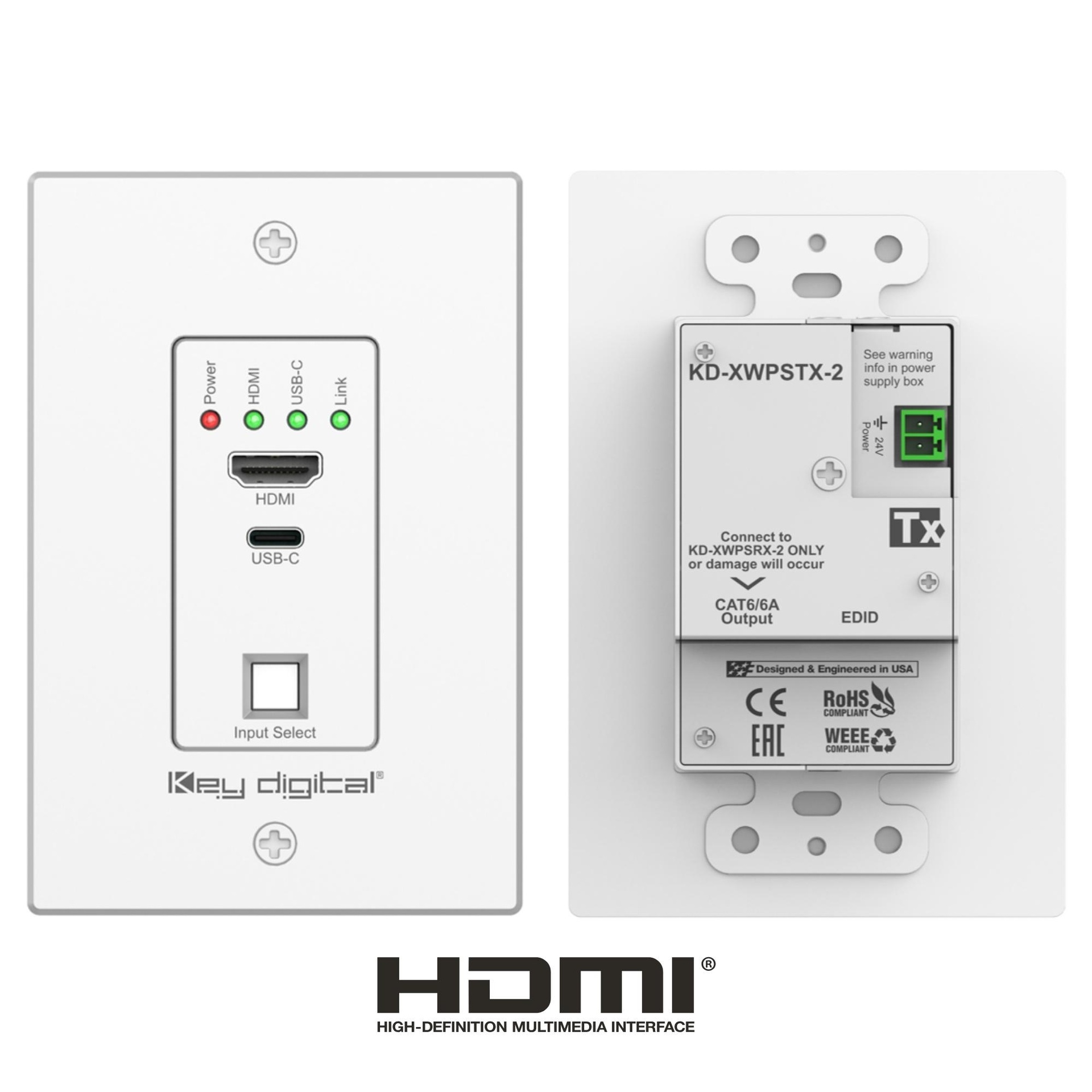

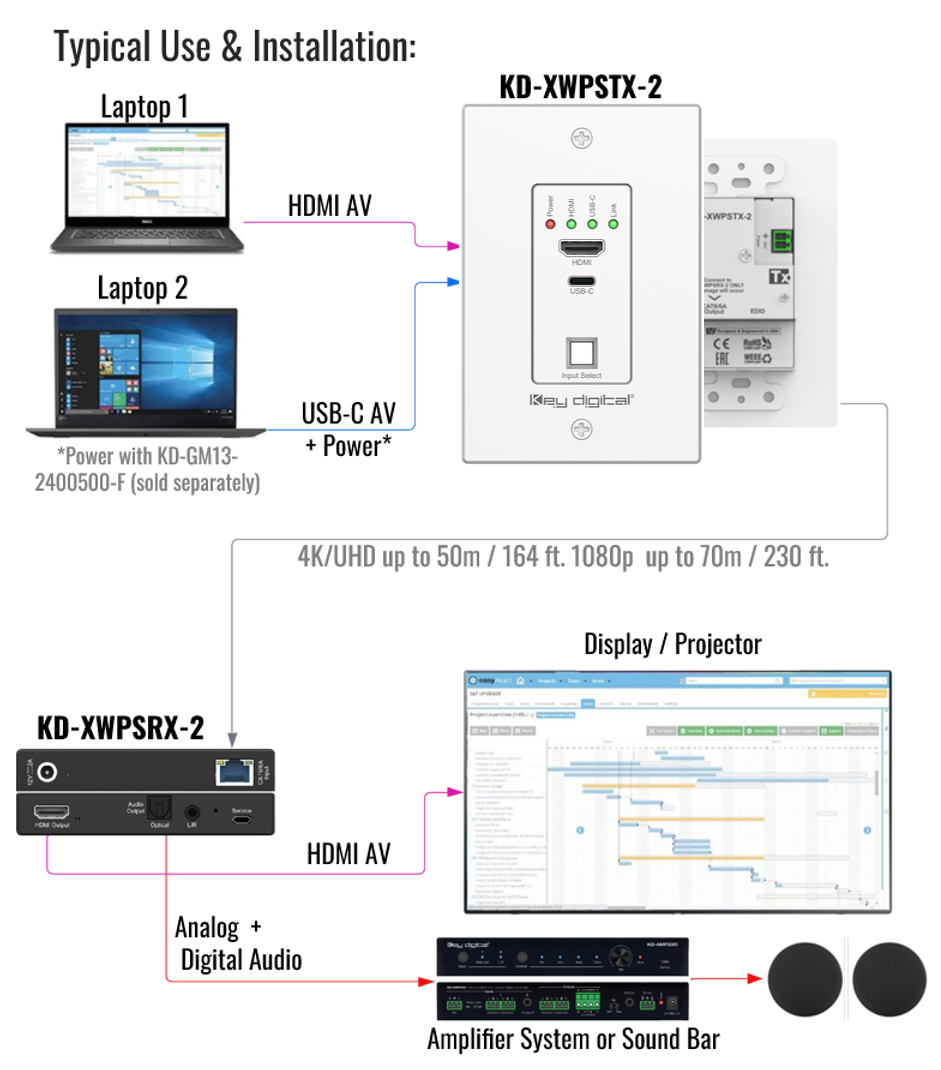

KD-XWPS-2 is a single-gang wall-plate switcher transmitter + receiver kit with one HDMI and one USB-C input.
It's ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more.
High-Resolution 4K/UHD Support
KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliance.
It extends video resolutions up to 4096x2160 at 60Hz with 4:4:4 chroma sub-sampling. This is accomplished over a single CAT6/6A cable up to 164ft (50m).
Optional USB-C Device Powering
Transmitter plate can provide power to connected USB-C devices when GMB36-120200-F (sold separately) is connected at the Tx unit.
System Integration Tools
KD-XWPS-2 features EDID handshake control and audio de-embedding overcoming common systems integration obstacles.
Power over CAT
The Rx unit can power the Tx Plate when the included power supply is connected at the Rx unit. Or, with additional purchase of the GMB36-120200-F power supply, the Tx unit may provide power to the Rx unit, as well as device charging on the USB-C port.
Features

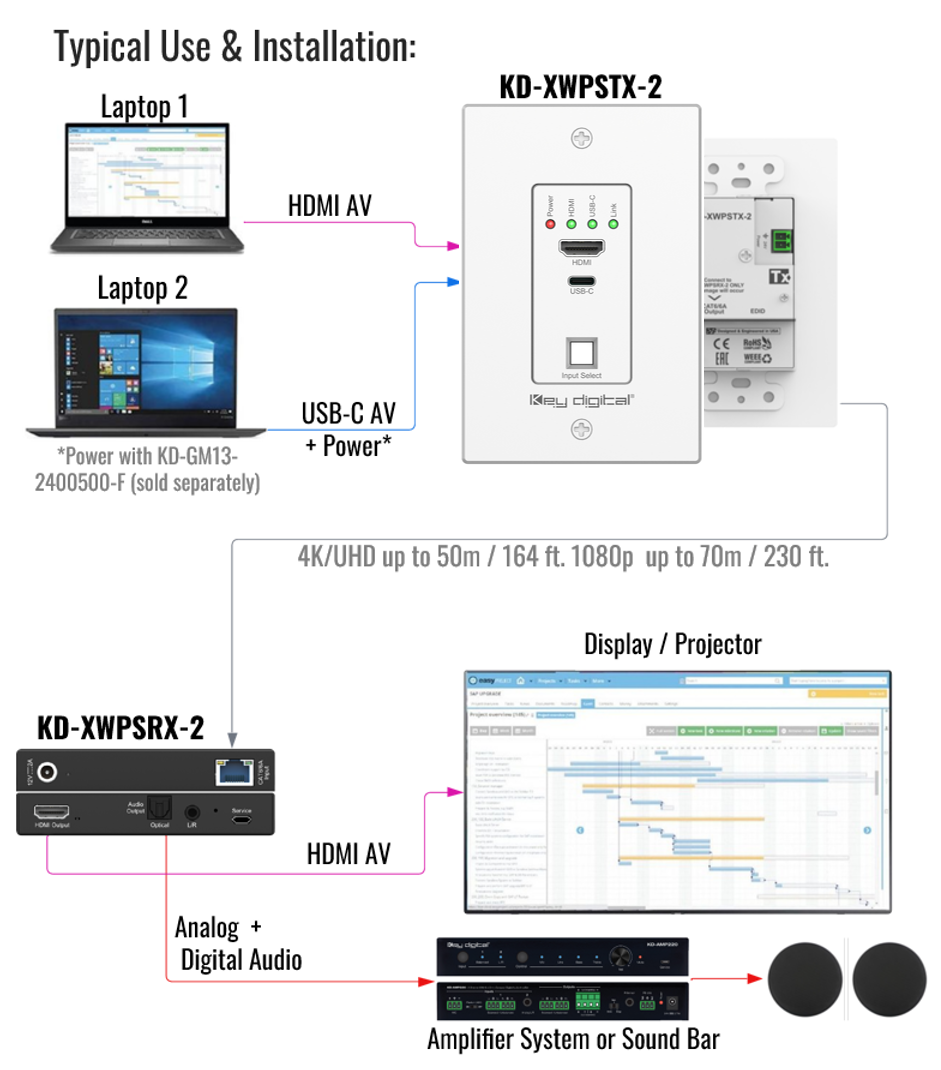

- Presentation Plate: Connect HDMI or USB-C laptop to send signal to receiver unit at Display or Projector.
- Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source.

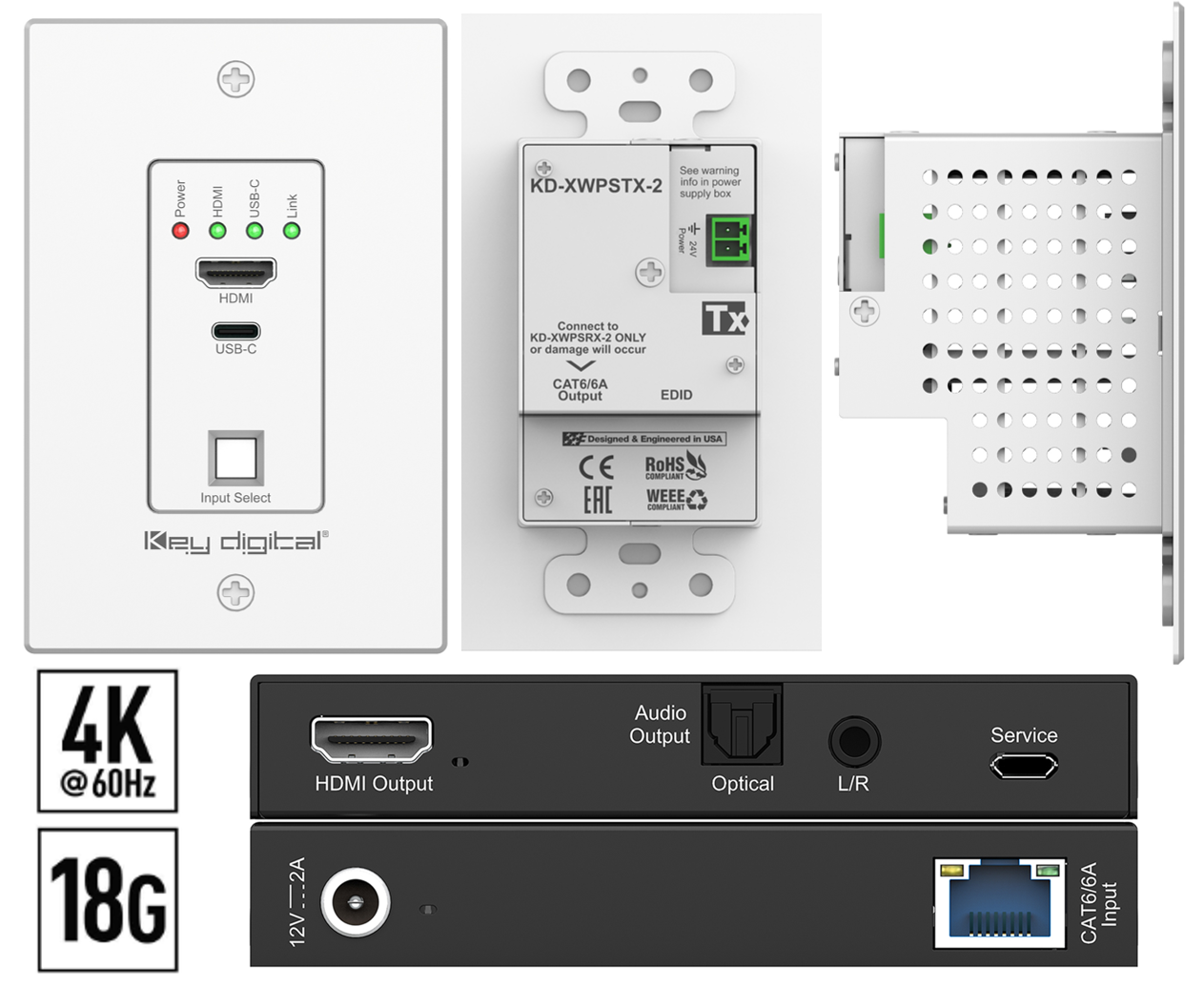

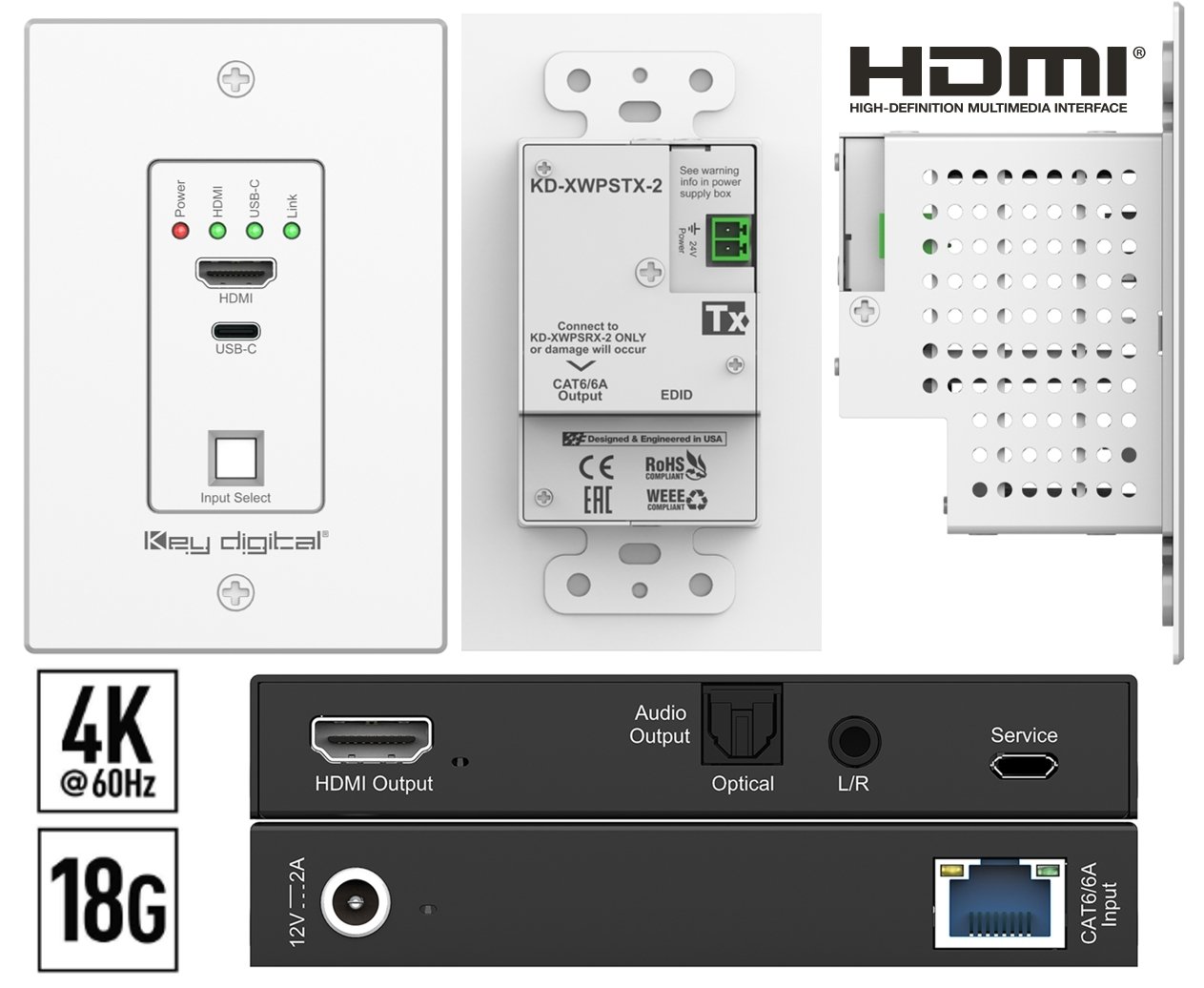

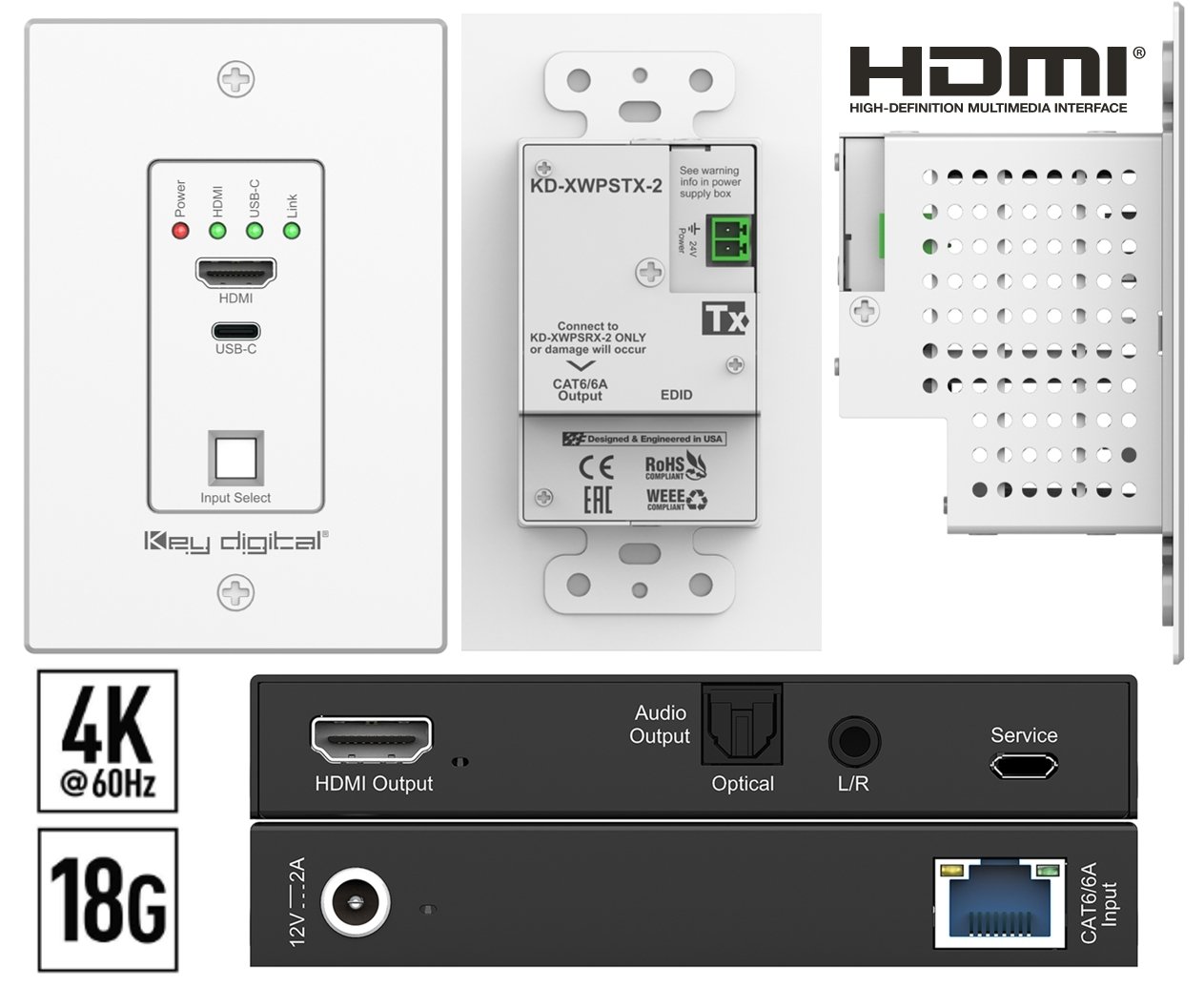

- Complete Kit: Includes Tx (model KD-XWPSTx-2), Rx (KD-XWPXRX-2), and Power Supply.
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth).
- Power over CAT: Only one power supply needed. Rx powers Tx Plate by default, or Transmitter plate can provide power to connected USB-C devices when GMB36-120200-F (sold separately) is connected at the Tx unit.
- Optional USB-C Device Powering: When GMB36-120200-F (sold separately) is connected at the Tx unit, Transmitter plate can provide power to connected USB-C devices as well as the Rx unit.

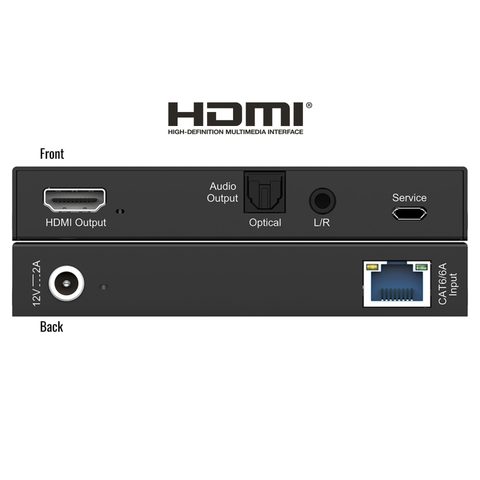

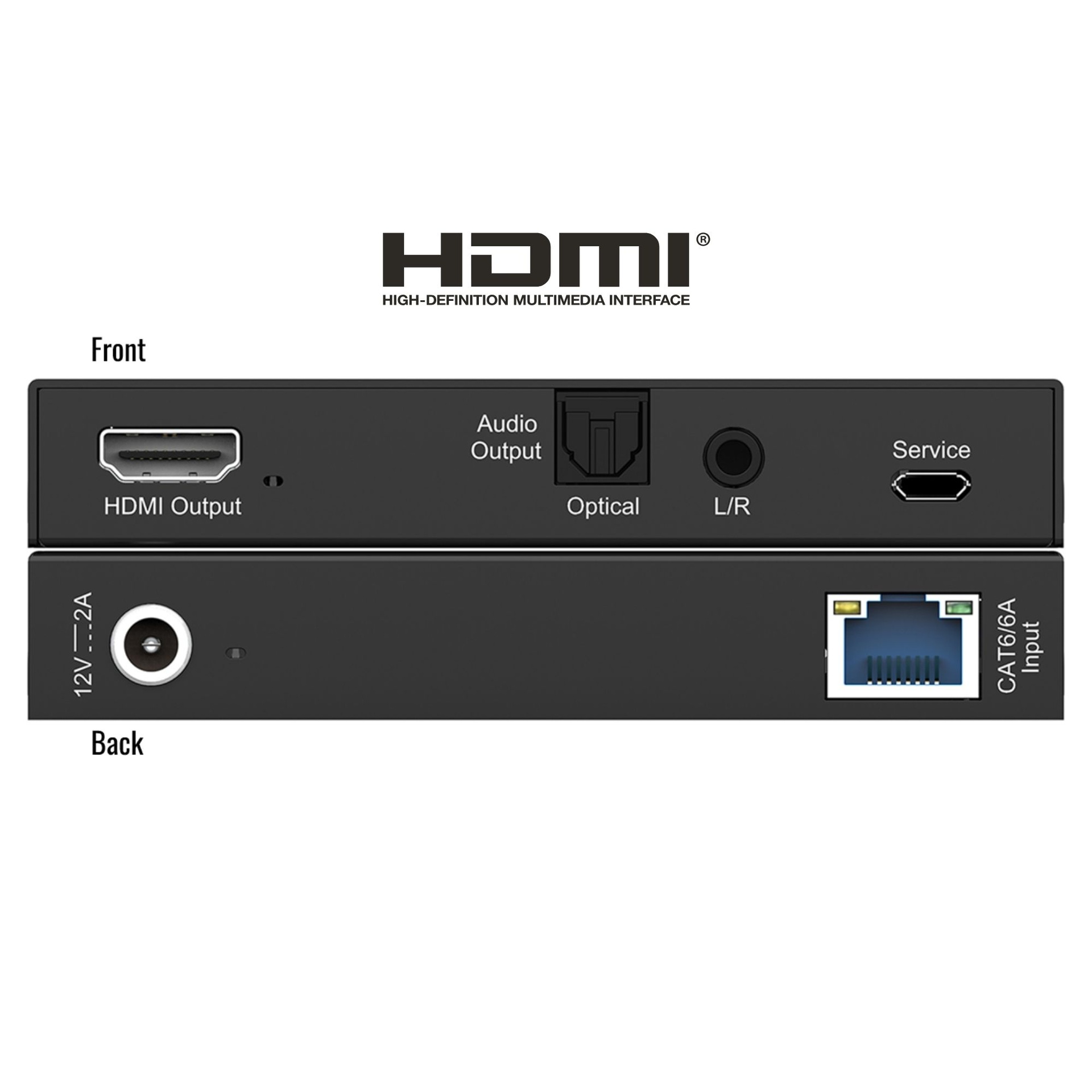

- Audio De-Embedding: Audio of the selected source is de-embedded at the Rx unit’s analog and digital audio connectors.
- Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate CAT6/6A transmission channel.
- Signal Extension: 4K/UHD (up to 18G) up to 164ft / 50m. 1080p and lower up to 230ft / 70m.
- Surround Audio Support: Dolby ®, DTS™ (formats up to 5.1 / 6.1).
Additional Features
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR (High Dynamic Range): More life-like images through a greater range of luminance levels
- Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 8 internal EDID handshakes including 4K with HDR, 1080p, 1920x1200, and 1080p DVI
downloads
Product Dimensions
Operation Manual
specifications
Technical:
- AV Inputs: 1x HDMI, 1x USB C
- AV Outputs: 1x CAT6/6A RJ45
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- USB-C Signal: Input Video Signal: 1.2 Volts p-p
- RJ45 Connectors: Shielded Link Connector, CAT6/6A
- RS-232 Connector: 3-pin phoenix terminal
- IR: 1x IR Sensor at Tx unit, 1x 3.5mm mono output at Rx unit
General:
- Regulation: CE, RoHS, WEEE, EAC
- Tx Wall plate: U.S. 1-gang wall plate in aluminum enclosure
- Decora plate: Brushed aluminum
- Rx Enclosure: Black Metal

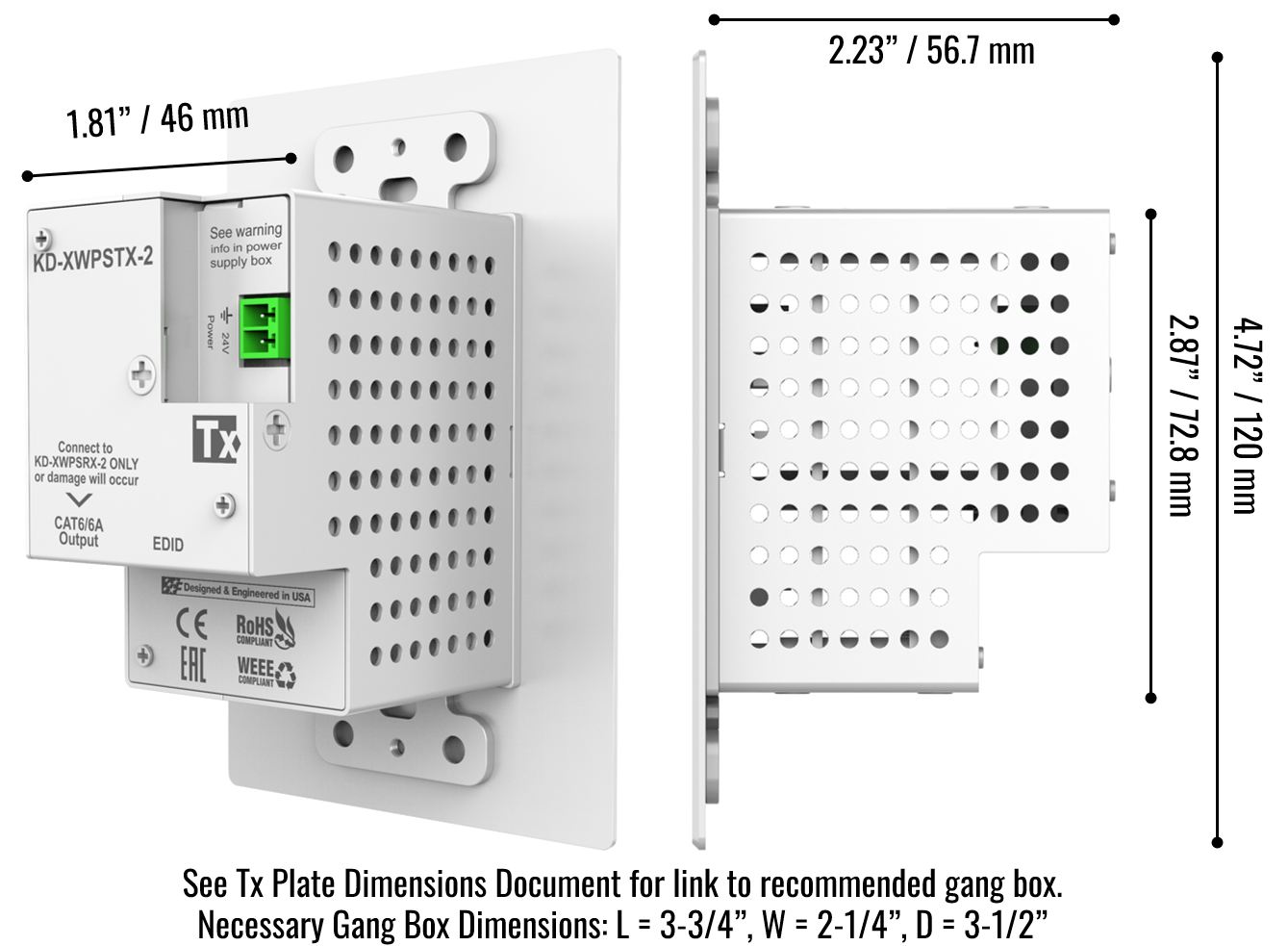

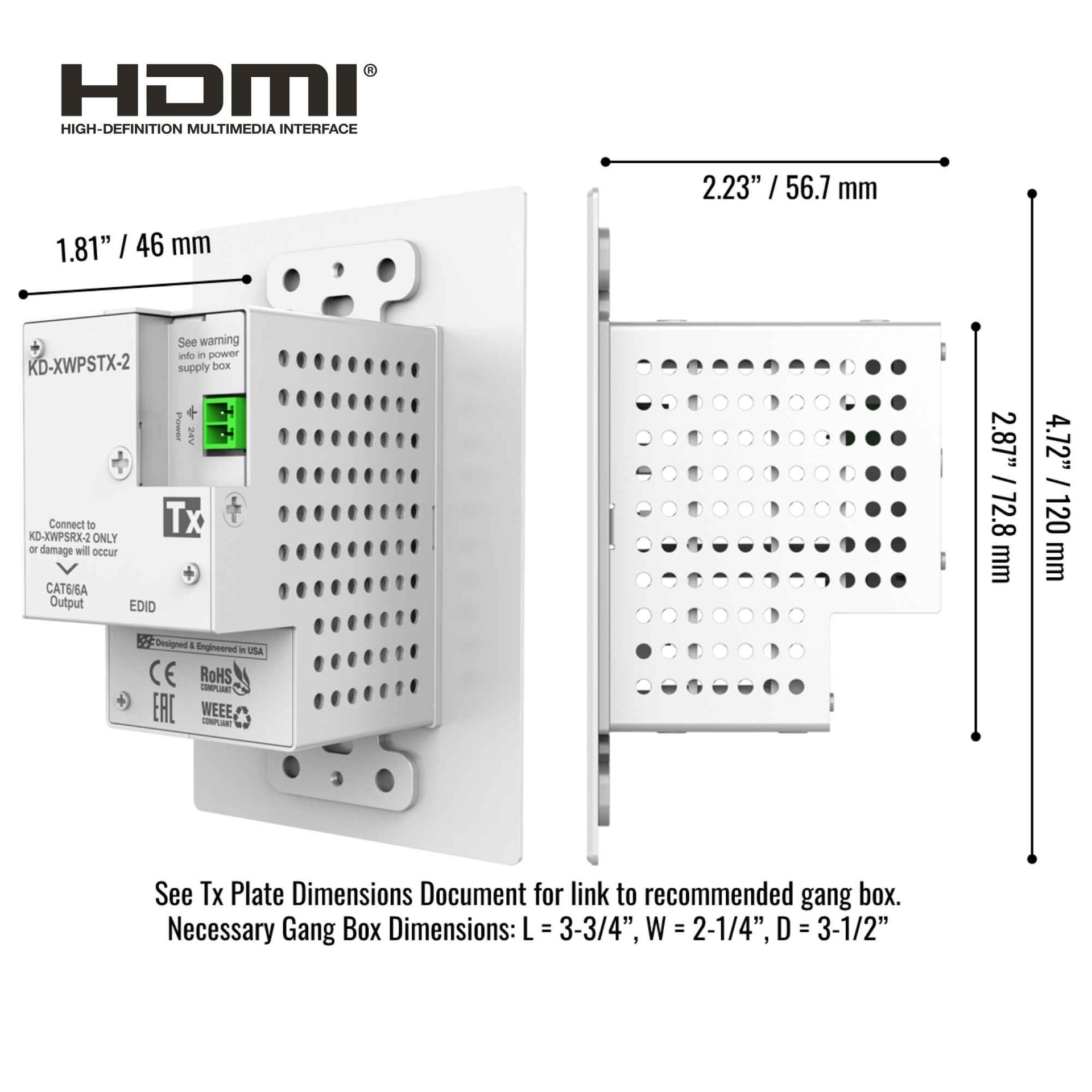

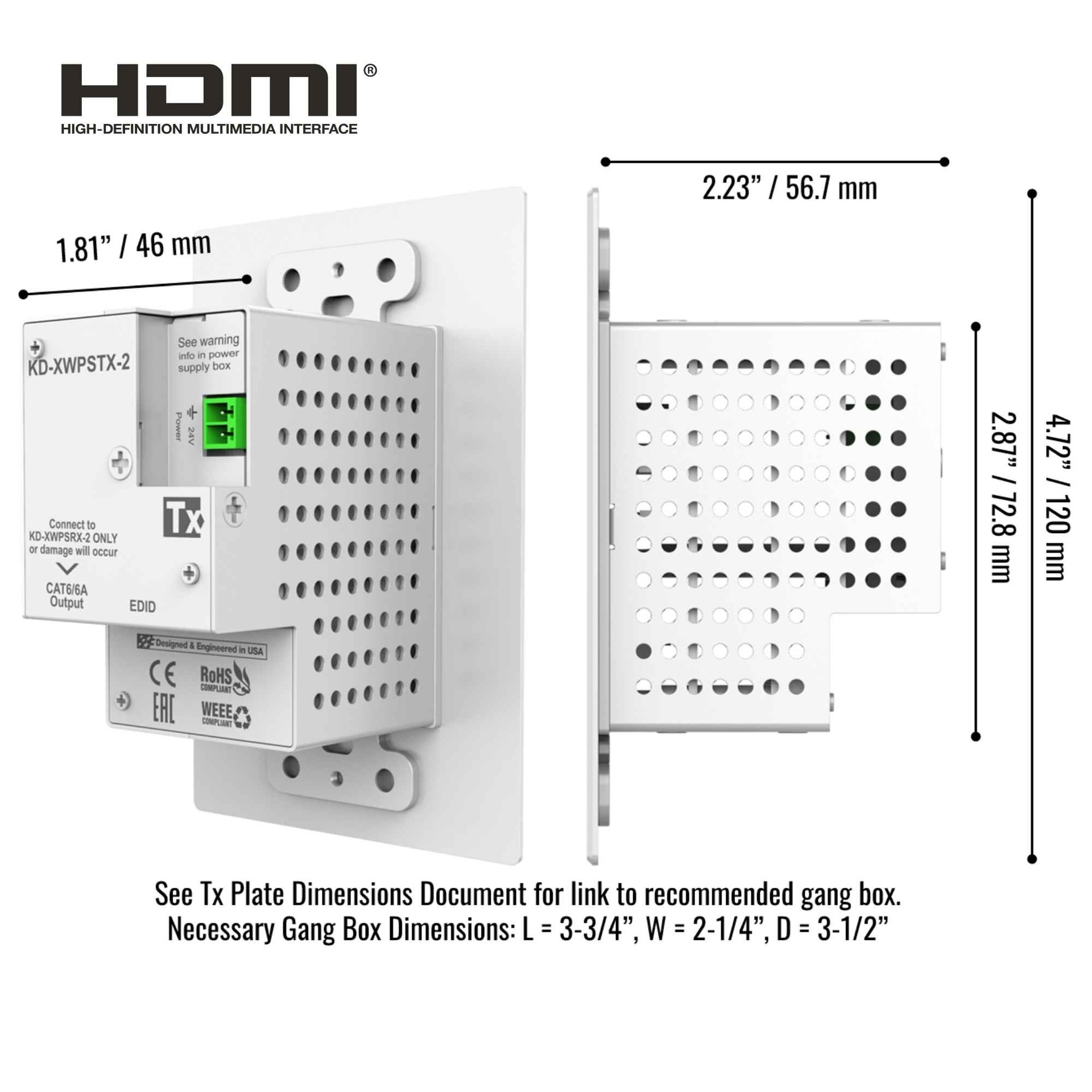

- Product Dimensions (Tx): 3.15 x 4.72 x 2.39” (80 x 120 x 60.7mm)
- Product Weight: Weight (Tx): 0.66 lbs (0.30 kg)

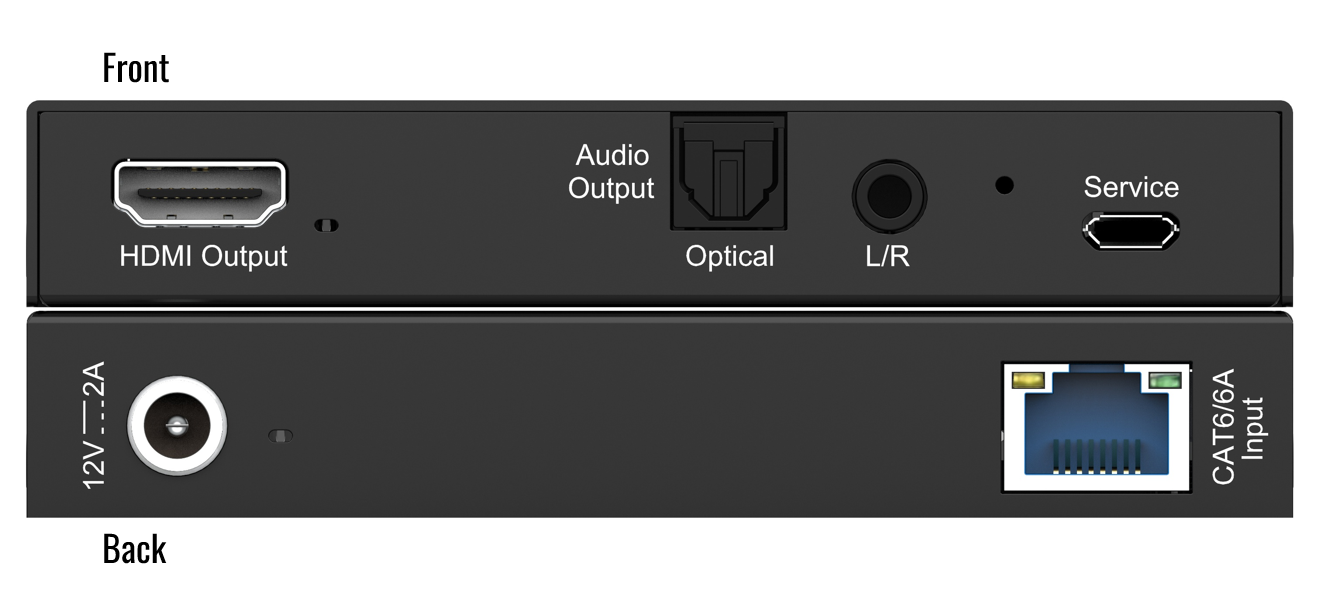

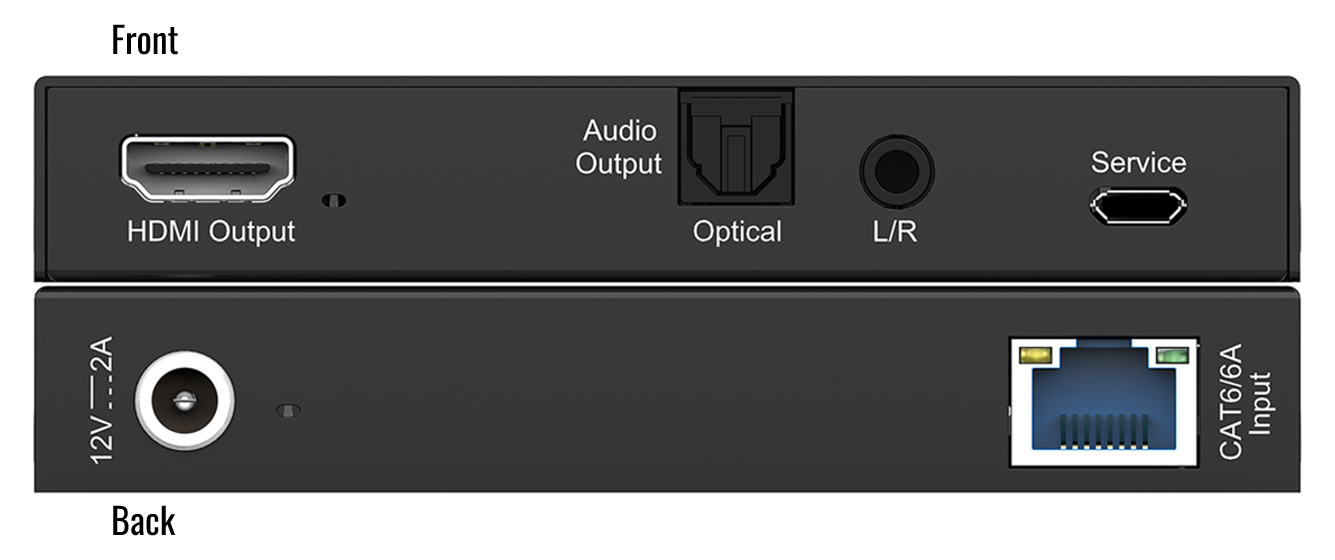

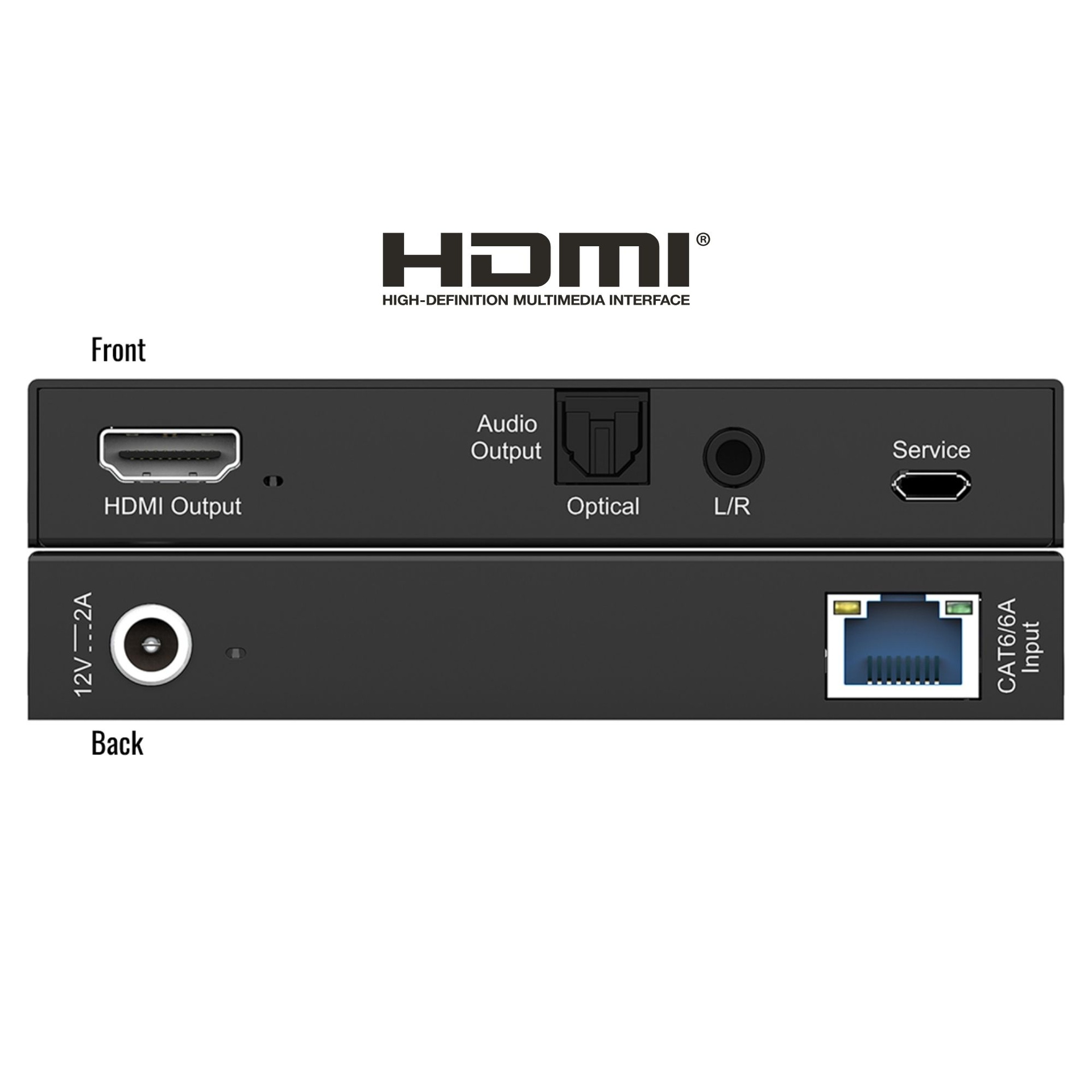

- Product Dimensions (Rx): 5.6 x 2.69 x 0.71” (142.2 x 68.3 x 18 mm)
- Product Weight: Weight (Rx): 1.54 lbs (0.7 KG)
- Packaging Dimensions: 8.66 x 8.66 x 4.72” (220 x 1220 x 120 mm)
- Packaging Weight: 2.71 lbs 1.23 kg
- BTU Rating: 42 per hour
- Packaging Weight: 1.98lbs (0.9 kg)
accessories
- Qty 1: Brushed aluminum decora plate
- Qty 2: Decora mounting screws
- Qty 2: Gang-box mounting screws
- Qty 1: 12V/2A (24W) Power supply with screw-in connector. Desktop type. Model GMB36-120200-F.
- Qty 2: L mounting bracket for Rx unit
- Qty 2: Velcro for Rx unit
- 2 Pin Phoenix Block (Green): 1pcs for connection with GM130-2400500-F transmitter power supply (sold separately) for USB-C device power.
specifications
Technical:
- AV Inputs: 1x HDMI, 1x USB C
- AV Outputs: 1x CAT6/6A RJ45
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- USB-C Signal: Input Video Signal: 1.2 Volts p-p
- RJ45 Connectors: Shielded Link Connector, CAT6/6A
- RS-232 Connector: 3-pin phoenix terminal
- IR: 1x IR Sensor at Tx unit, 1x 3.5mm mono output at Rx unit
General:
- Regulation: CE, RoHS, WEEE, EAC
- Tx Wall plate: U.S. 1-gang wall plate in aluminum enclosure
- Decora plate: Brushed aluminum
- Rx Enclosure: Black Metal
- Product Dimensions (Tx): 3.15 x 4.72 x 2.39” (80 x 120 x 60.7mm)
- Product Weight: Weight (Tx): 0.66 lbs (0.30 kg)
- Product Dimensions (Rx): 5.6 x 2.69 x 0.71” (142.2 x 68.3 x 18 mm)
- Product Weight: Weight (Rx): 1.54 lbs (0.7 KG)
- Packaging Dimensions: 8.66 x 8.66 x 4.72” (220 x 1220 x 120 mm)
- Packaging Weight: 2.71 lbs 1.23 kg
- BTU Rating: 42 per hour
- Packaging Weight: 1.98lbs (0.9 kg)
accessories
- Qty 1: Brushed aluminum decora plate
- Qty 2: Decora mounting screws
- Qty 2: Gang-box mounting screws
- Qty 1: 12V/2A (24W) Power supply with screw-in connector. Desktop type. Model GMB36-120200-F.
- Qty 2: L mounting bracket for Rx unit
- Qty 2: Velcro for Rx unit
- 2 Pin Phoenix Block (Green): 1pcs for connection with GM130-2400500-F transmitter power supply (sold separately) for USB-C device power.
