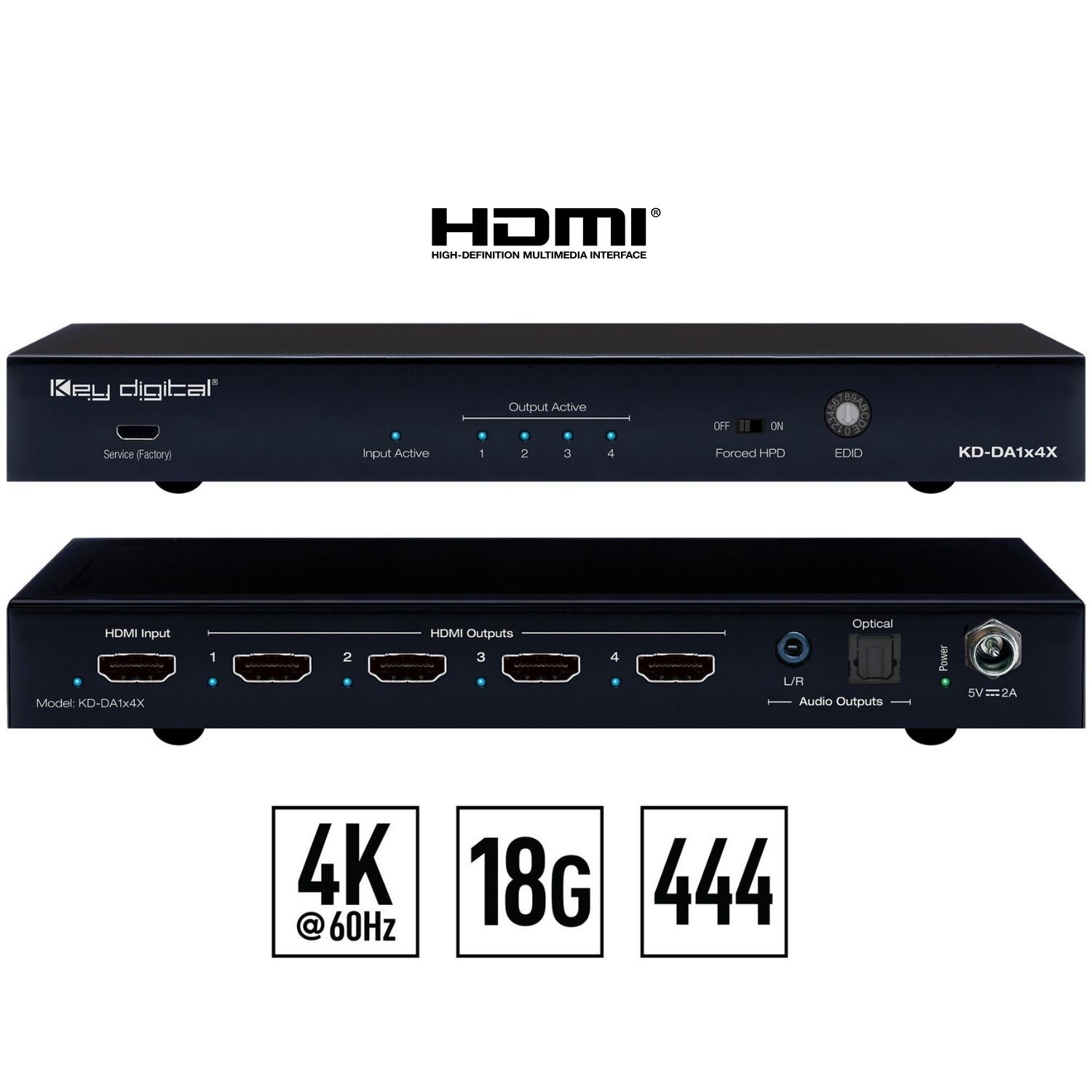

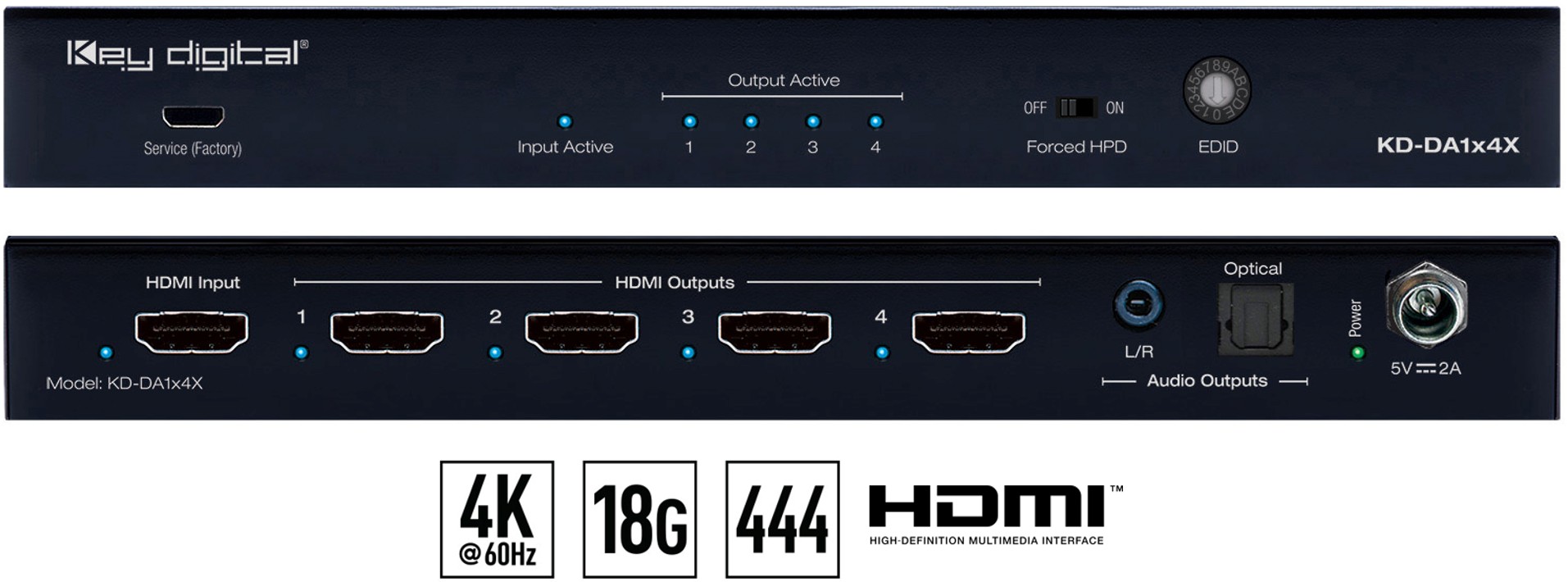

KD-DA1x4X 4 Output HDMI Splitter Distribution Amp

KD-DA1x4X
KD-DA1x4X
KD-DA1x4X
KD-DA1x4X
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
John Peterson · Innovative Sales Solutions | Lakewood Tavern

4 Output HDMI Splitter Distribution Amp

Find a Distributor

Free, no-commitment pricing. Typical reply within one business day.

KD-DA1x4X

  • Feeds video source to 4 HDMI displays

  • Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD

  • De-embeds audio for ease of integration with audio systems and soundbars

  • Repairs HDMI signals for integration with long HDMI cables

Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Get a Quote

KD-DA1x4X

Tell us a couple of details and we’ll come back with pricing within one business day. No phone calls until you say so.

By submitting, you agree to be contacted by Key Digital about this request.

Urgent? Call +1 914-667-9700, M–F 9–5 ET.

introduction

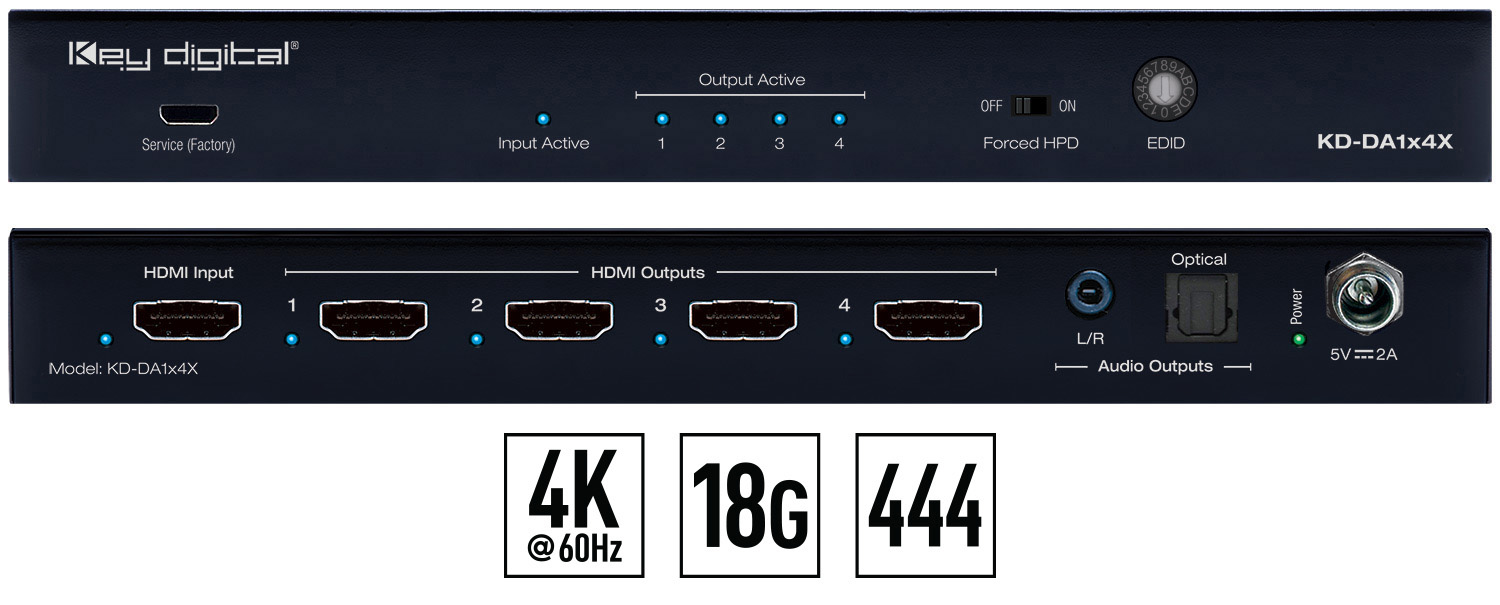

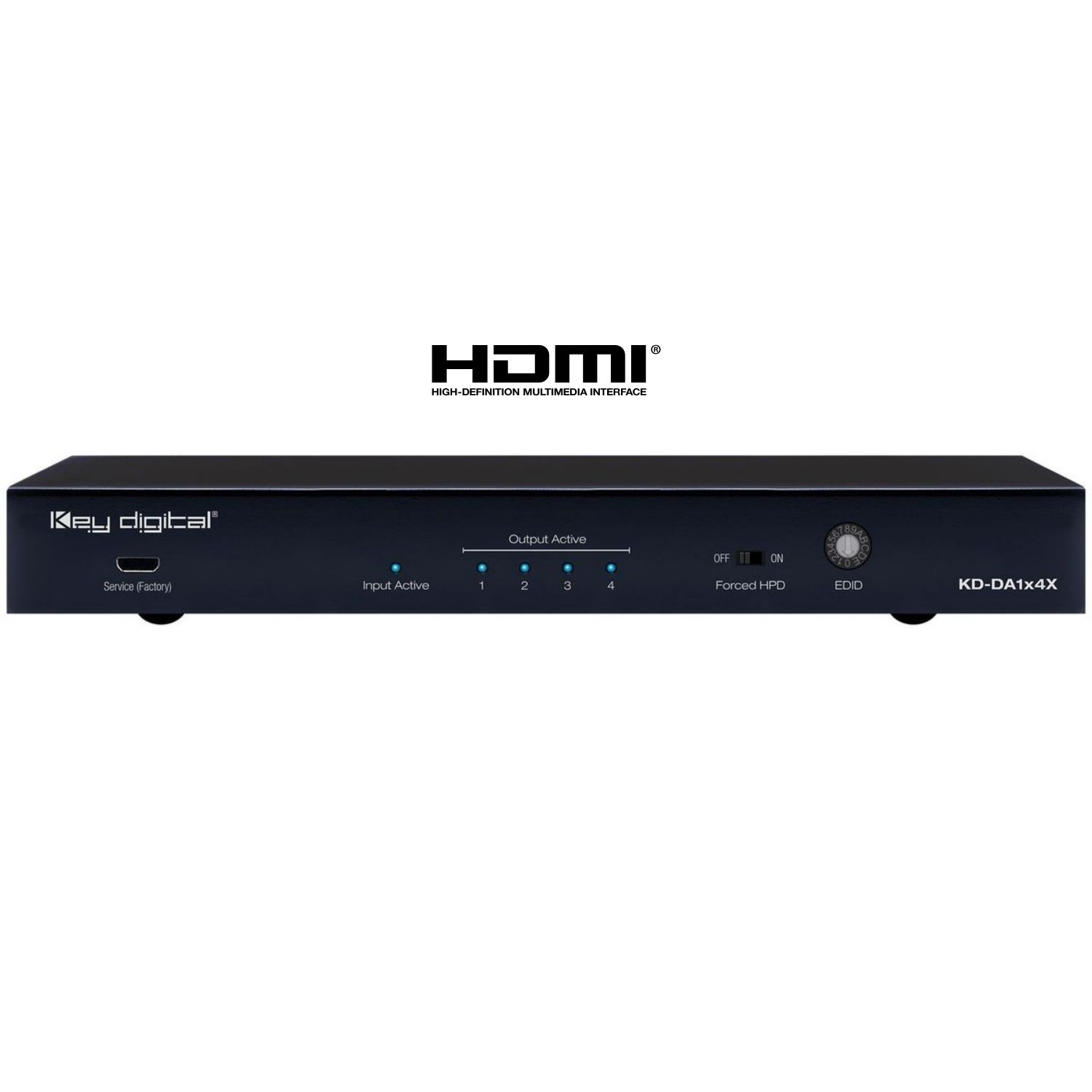

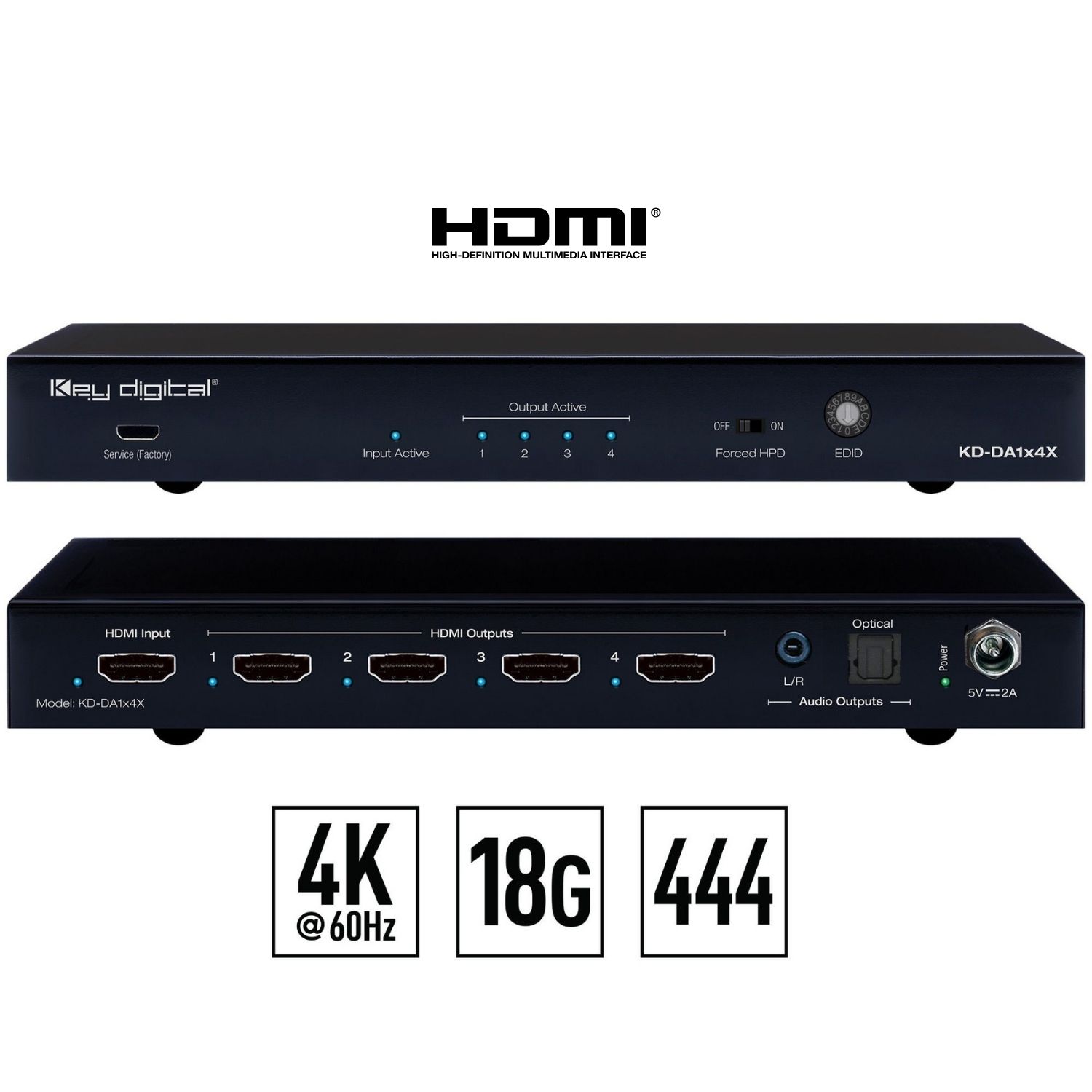

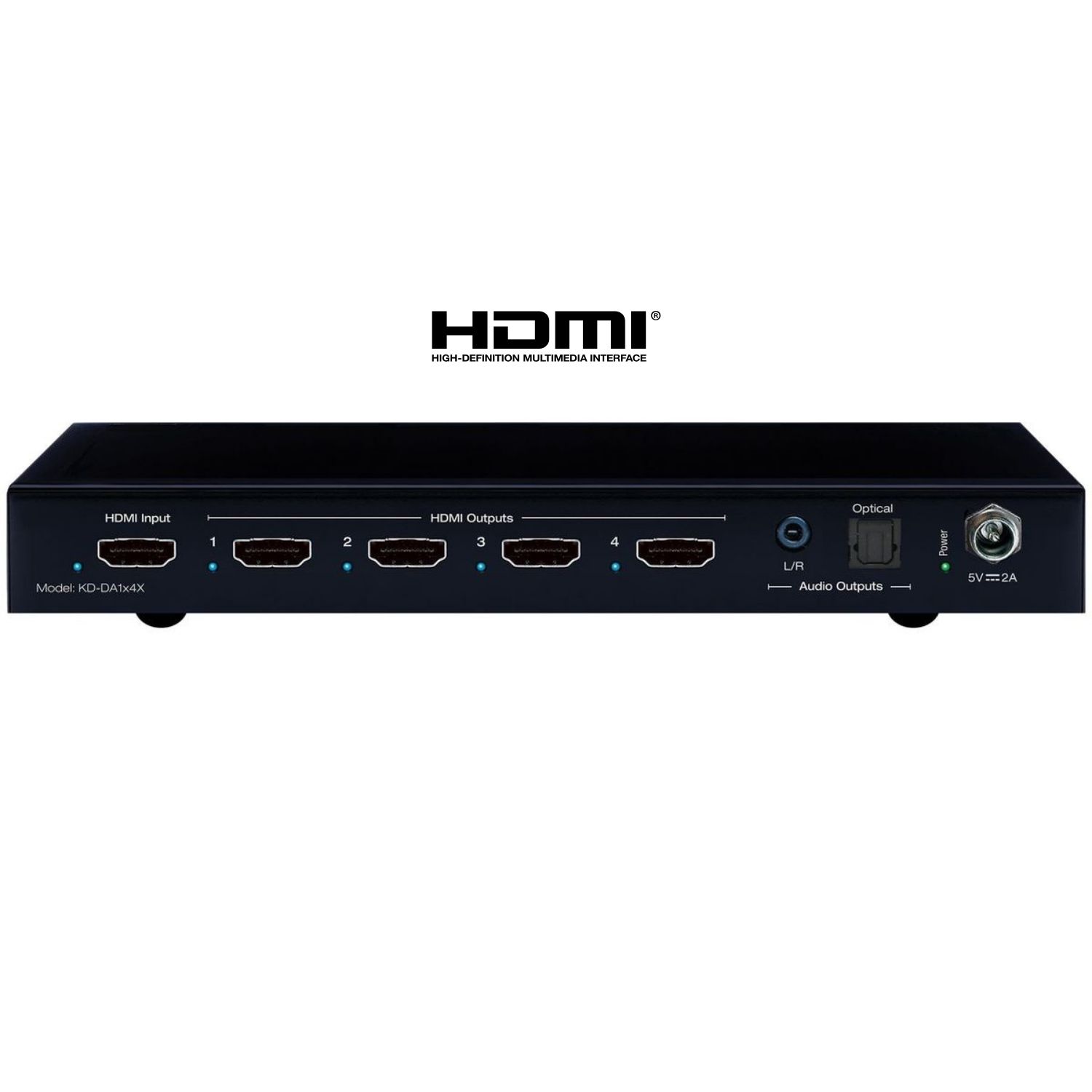

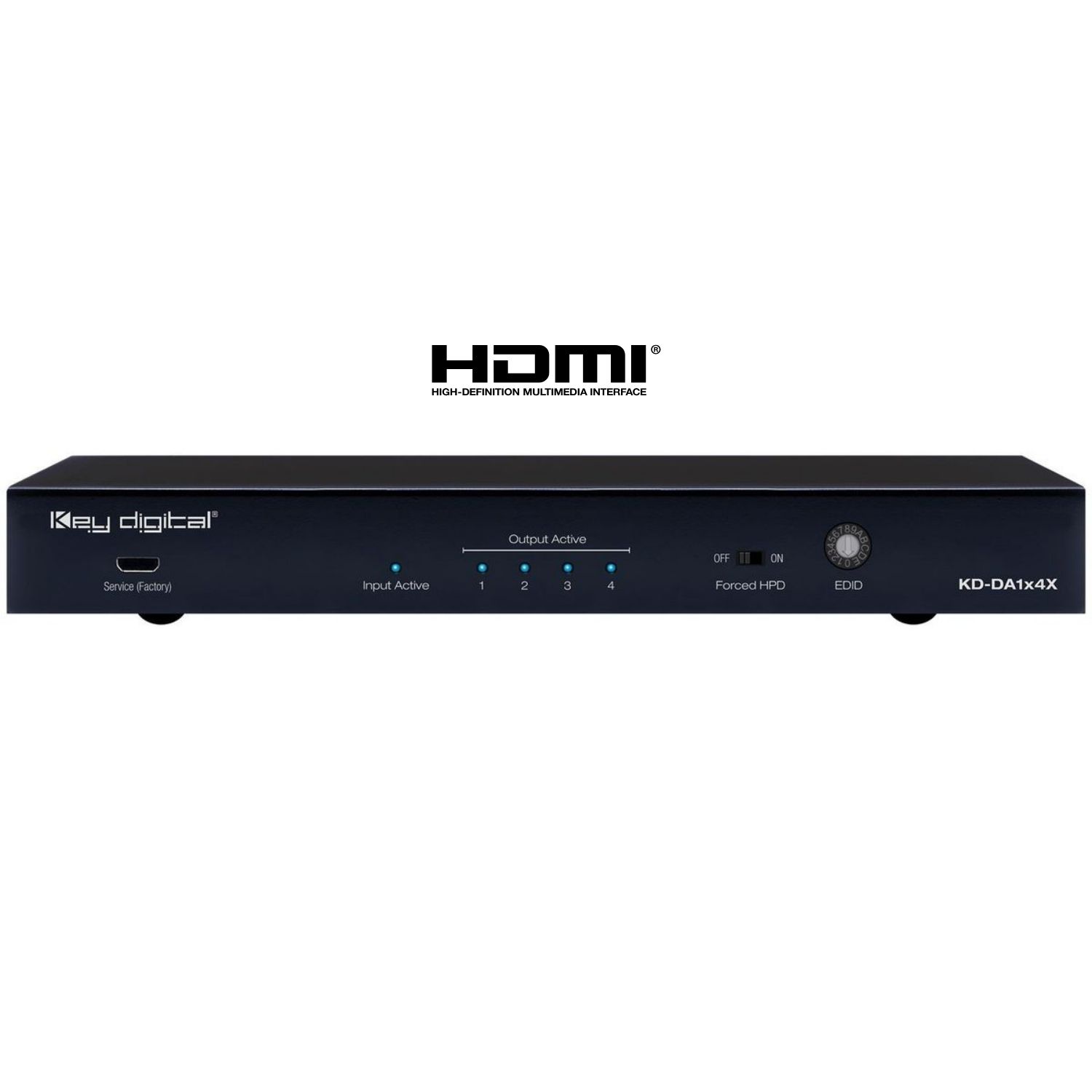

KD-DA1x4X is a 4K/18G HDMI Distribution Amplifiers engineered to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI signal distribution solution. Designed for professional audio video installations in digital signage applications, KD-DA1x4X enables a single video source to be displayed on multiple video displays. L/R analog and digital Optical de-embed ports provide an external audio signal of the connected source so it may be fed into amplifiers, distributed audio systems, and digital audio sound bars. KD-DA1x4X HDMI Distribution Amplifiers support all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. The Distribution Amplifiers feature status-monitoring LEDs, and support of HDR10, HDCP 2.2 and 4K.

Features

  • HDMI Signal Distribution: 1 HDMI source to 2/4 HDMI outputs/displays

  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

  • Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors

  • Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

Additional Features

  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2

  • HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels

  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1

  • CEC Disconnect: Prevents unwanted control of source

downloads

Hi-res Image
Catalog Page
Operation Manual

Diagrams

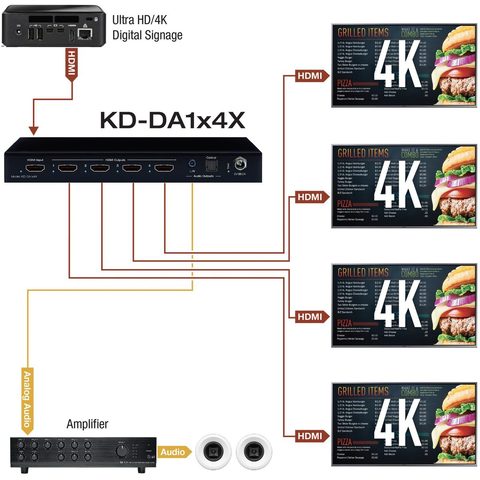

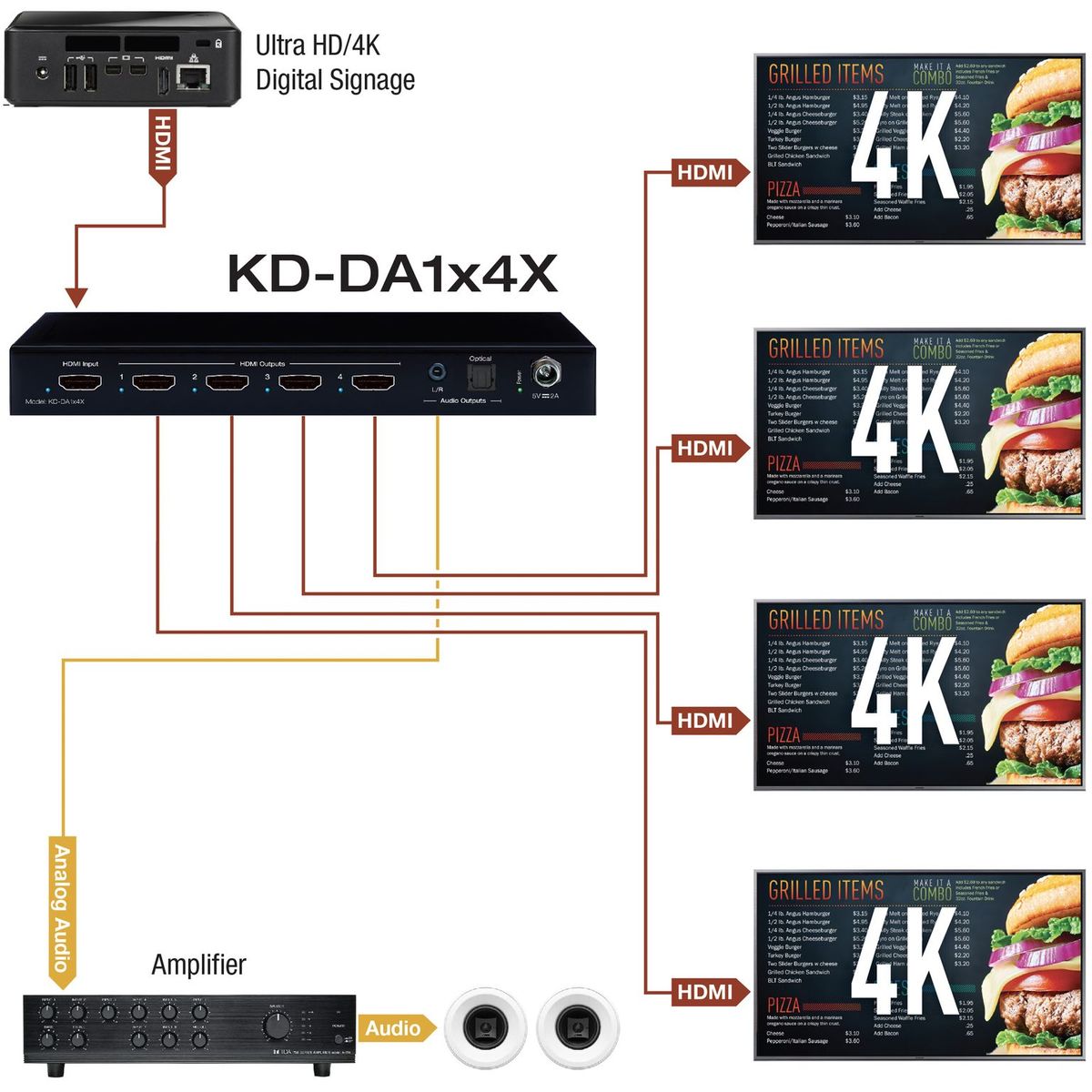

Application Example

specifications

  • Technical:

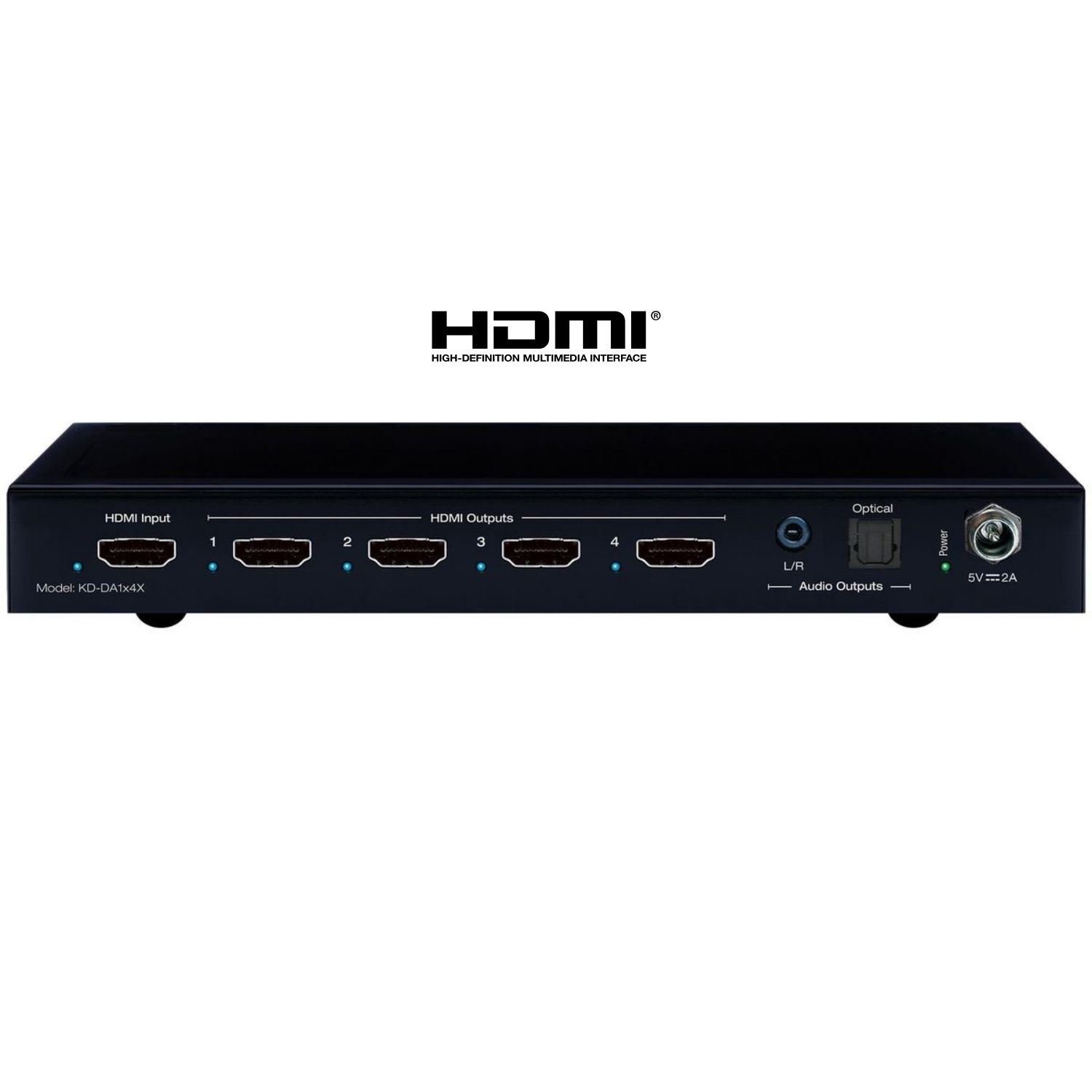

    • Input (Each): HDMI Connector, Type A, 19 Pin Female
    • Output: HDMI Connector, Type A, 19 Pin Female
    • Bandwidth: TMDS bandwidth 18 Gbps
    • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
    • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
    • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

    General:

    • Regulation: CE, RoHS, WEEE
    • Enclosure: Black Metal
    • Product Dimensions: KD-S2x1X - 4.3” x 1.1” x 2.8”; KD-S4x1X - 6.25” x 1.1” x 3.1”
    • Packaging Dimensions: KD-S2x1X - 6.3” x 4.2” x 3.7”; KD-S4x1X - 9.8” x 4.5” x 3.35”
    • Product Weight: KD-S2x1X - 0.5 lb; KD-S4x1X - 0.9 lb
    • Shipping Weight: KD-S2x1X - 0.7 lb; KD-S4x1X - 1.5 lb

accessories

  • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
  • Mounting Brackets: 2 L-shaped

technical documents

Hi-res Image
Catalog Page
Operation Manual

Images and Diagrams

Application Example

specifications

  • Technical:

    • Input (Each): HDMI Connector, Type A, 19 Pin Female
    • Output: HDMI Connector, Type A, 19 Pin Female
    • Bandwidth: TMDS bandwidth 18 Gbps
    • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
    • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
    • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

    General:

    • Regulation: CE, RoHS, WEEE
    • Enclosure: Black Metal
    • Product Dimensions: KD-S2x1X - 4.3” x 1.1” x 2.8”; KD-S4x1X - 6.25” x 1.1” x 3.1”
    • Packaging Dimensions: KD-S2x1X - 6.3” x 4.2” x 3.7”; KD-S4x1X - 9.8” x 4.5” x 3.35”
    • Product Weight: KD-S2x1X - 0.5 lb; KD-S4x1X - 0.9 lb
    • Shipping Weight: KD-S2x1X - 0.7 lb; KD-S4x1X - 1.5 lb

accessories

  • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
  • Mounting Brackets: 2 L-shaped
purchased together
KD-X444L
4K/18G POH HDBaseT HDMI Extenders (Includes KIT TX/RX 4K/70Meters 1080P/100Meters) - DISCONTINUED
KD-X444S
HDMI over 40m CAT6 HDBaseT Extender Set. DISCONTINUED - SUGGESTED REPLACEMENT KD-X444SP.
similar products
KD-DA1x2X

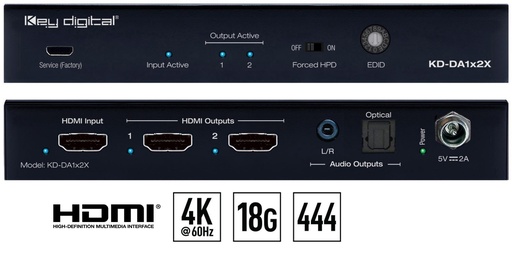

1x2 4K/18G HDMI Distribution Amplifier with L/R/Optical Audio & De-Embedded Audio Output
