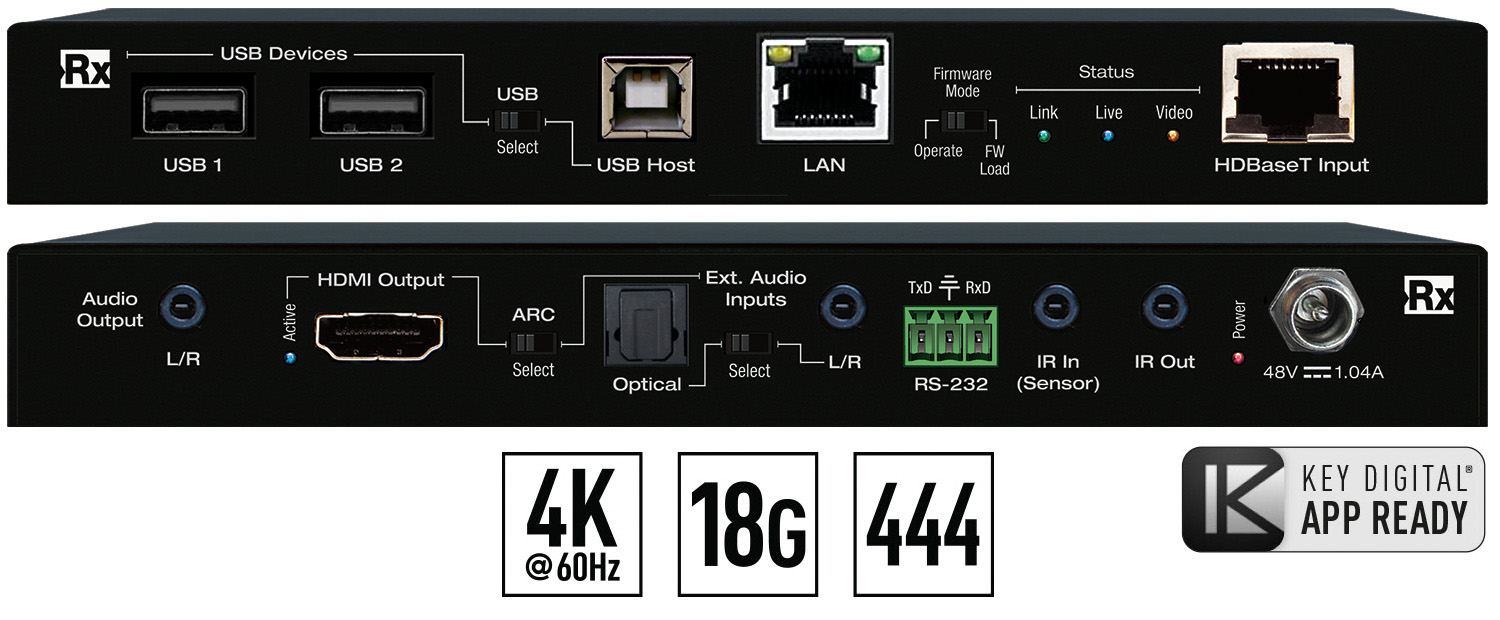

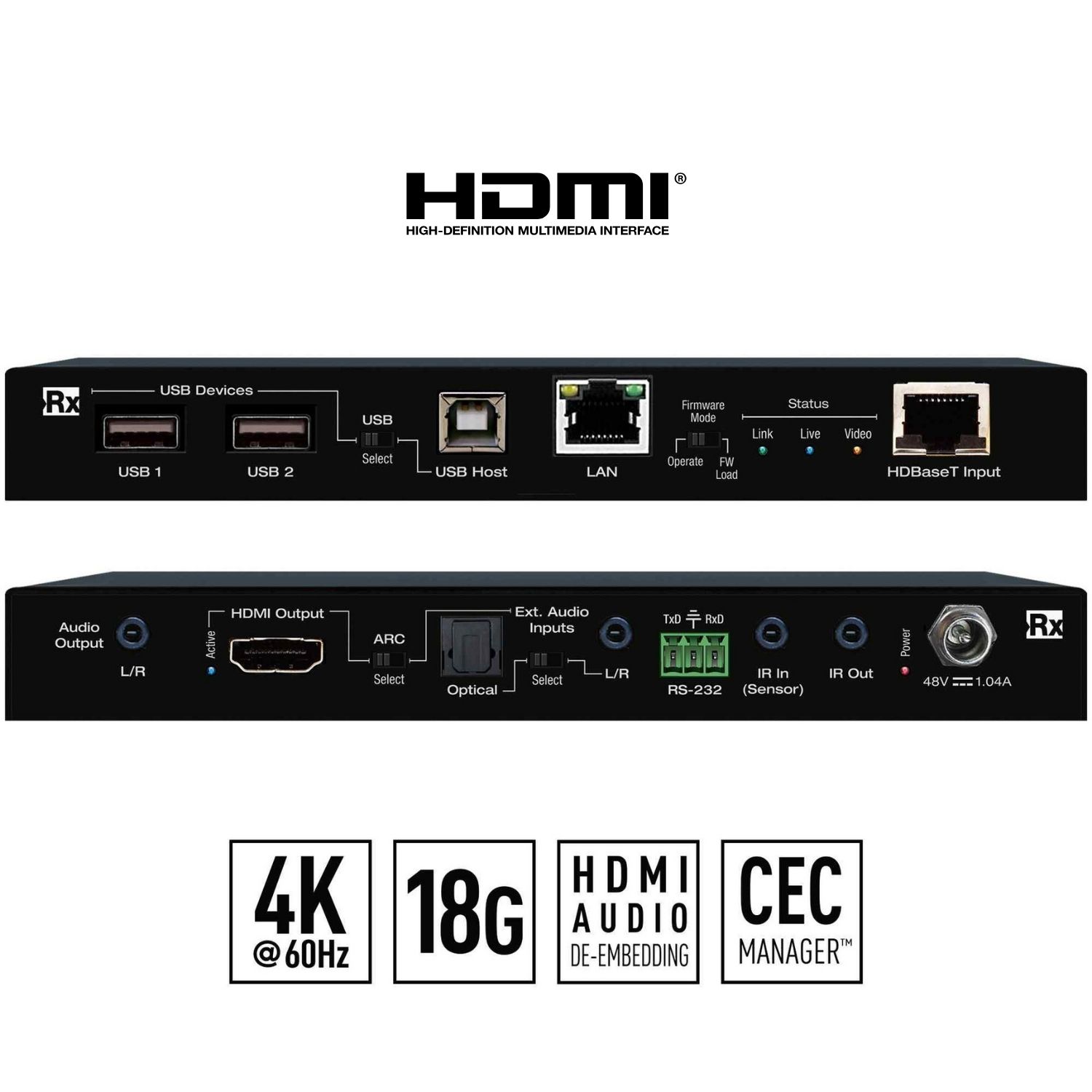

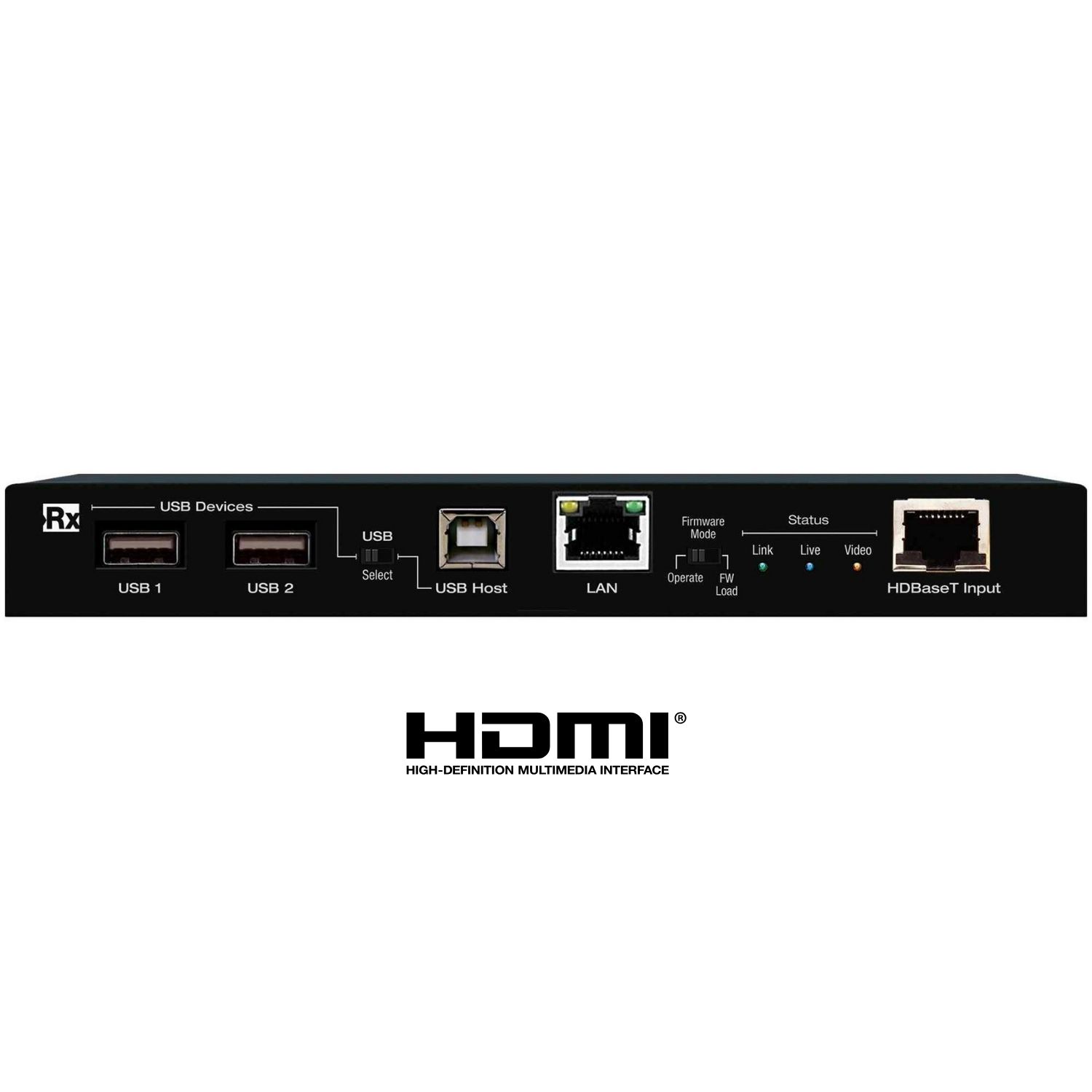

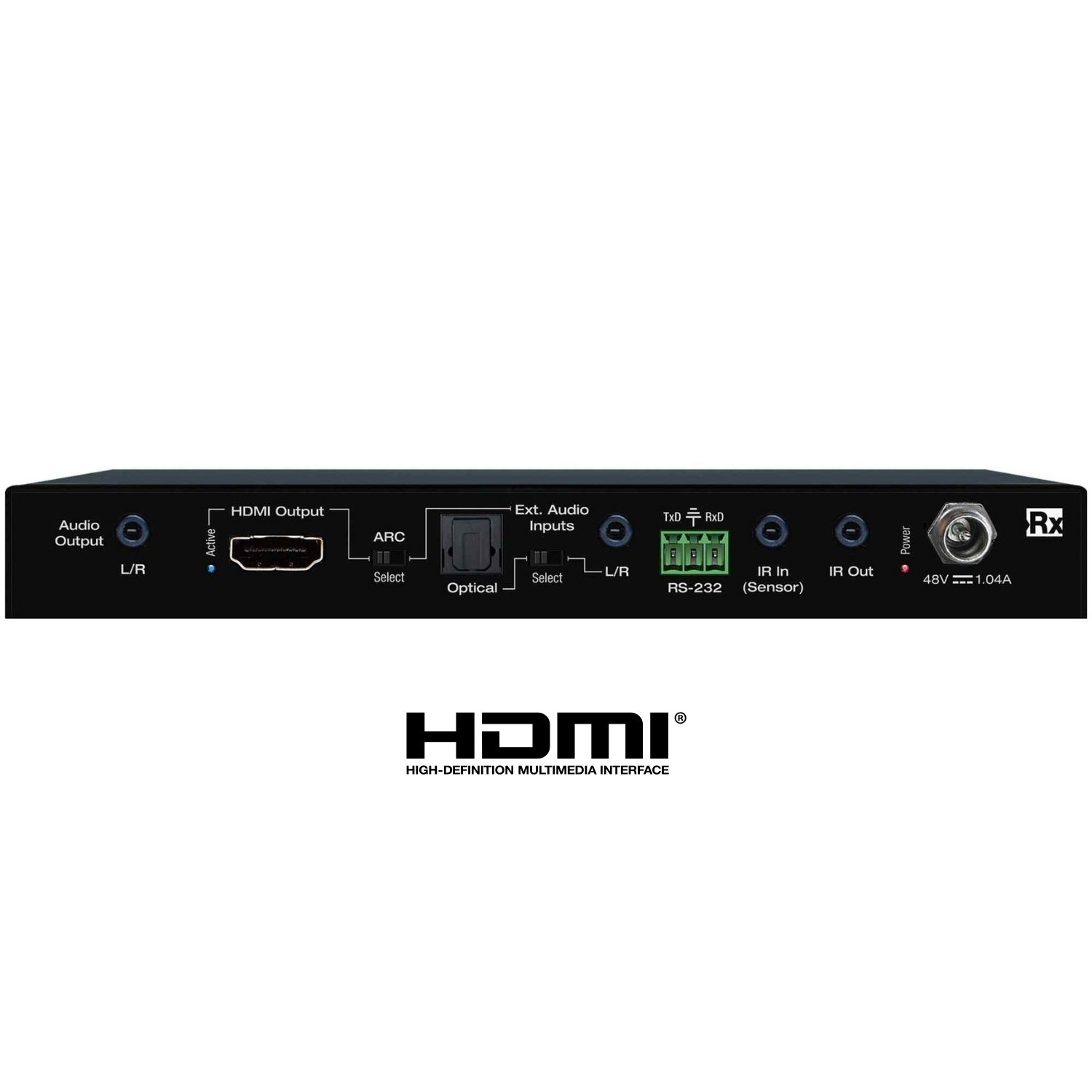

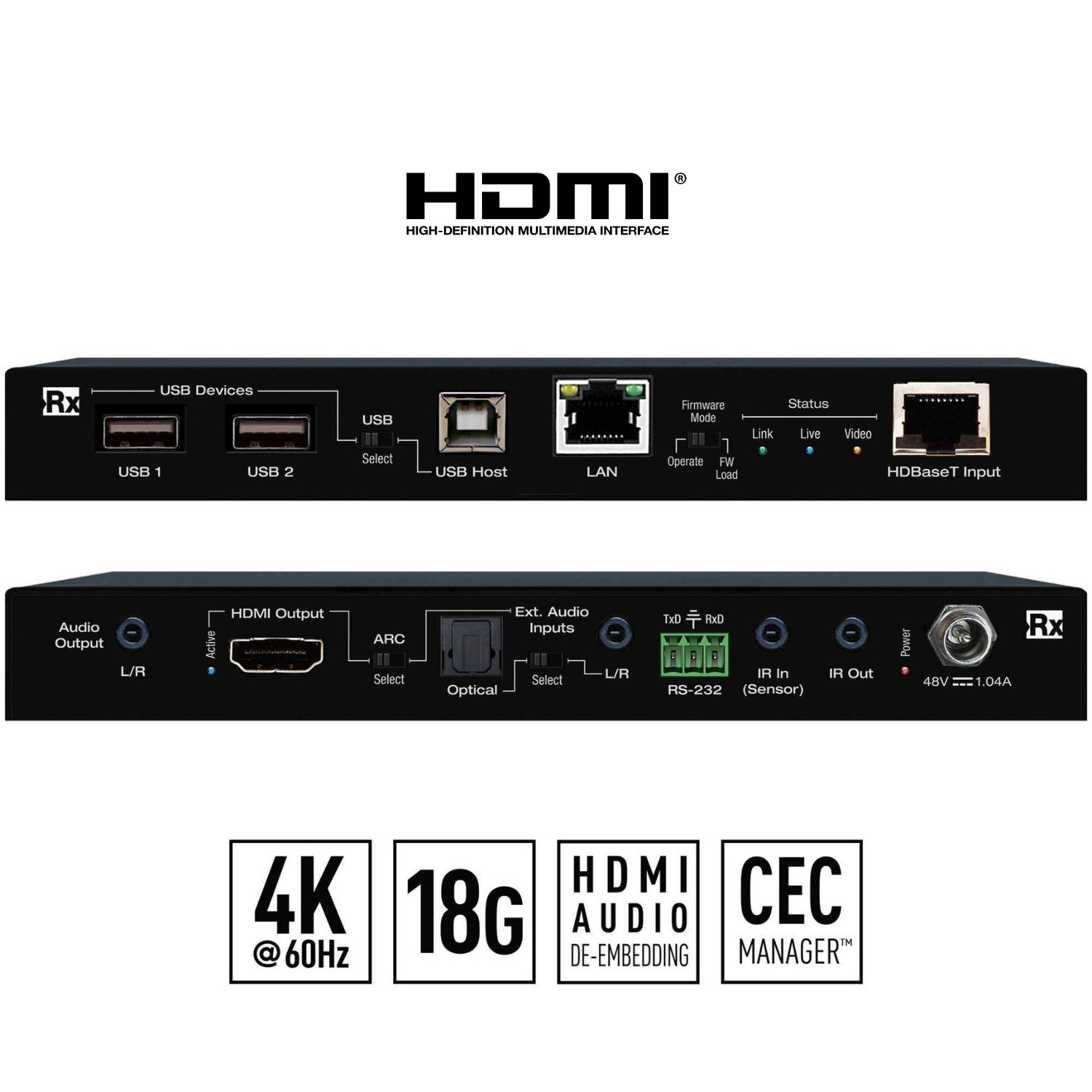

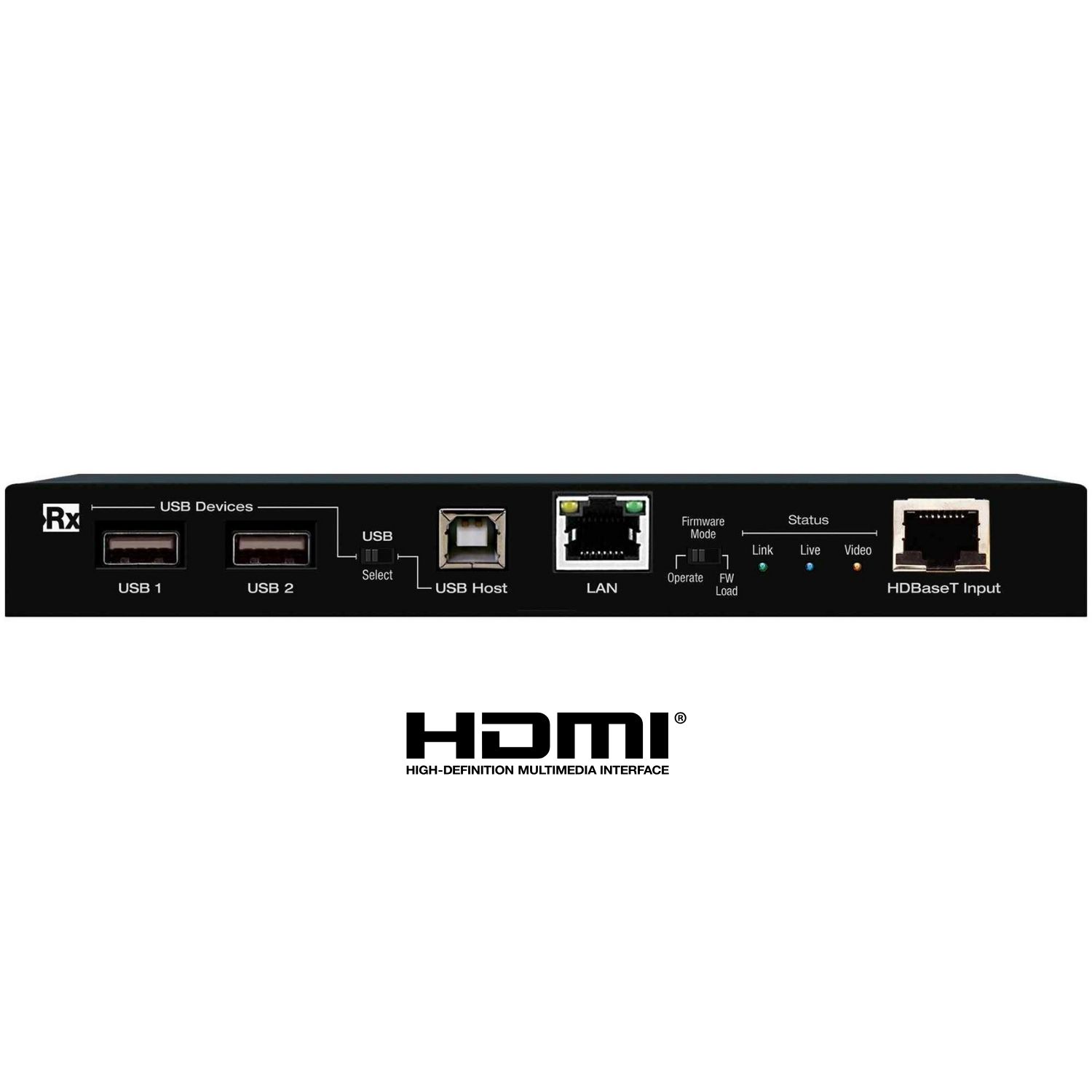

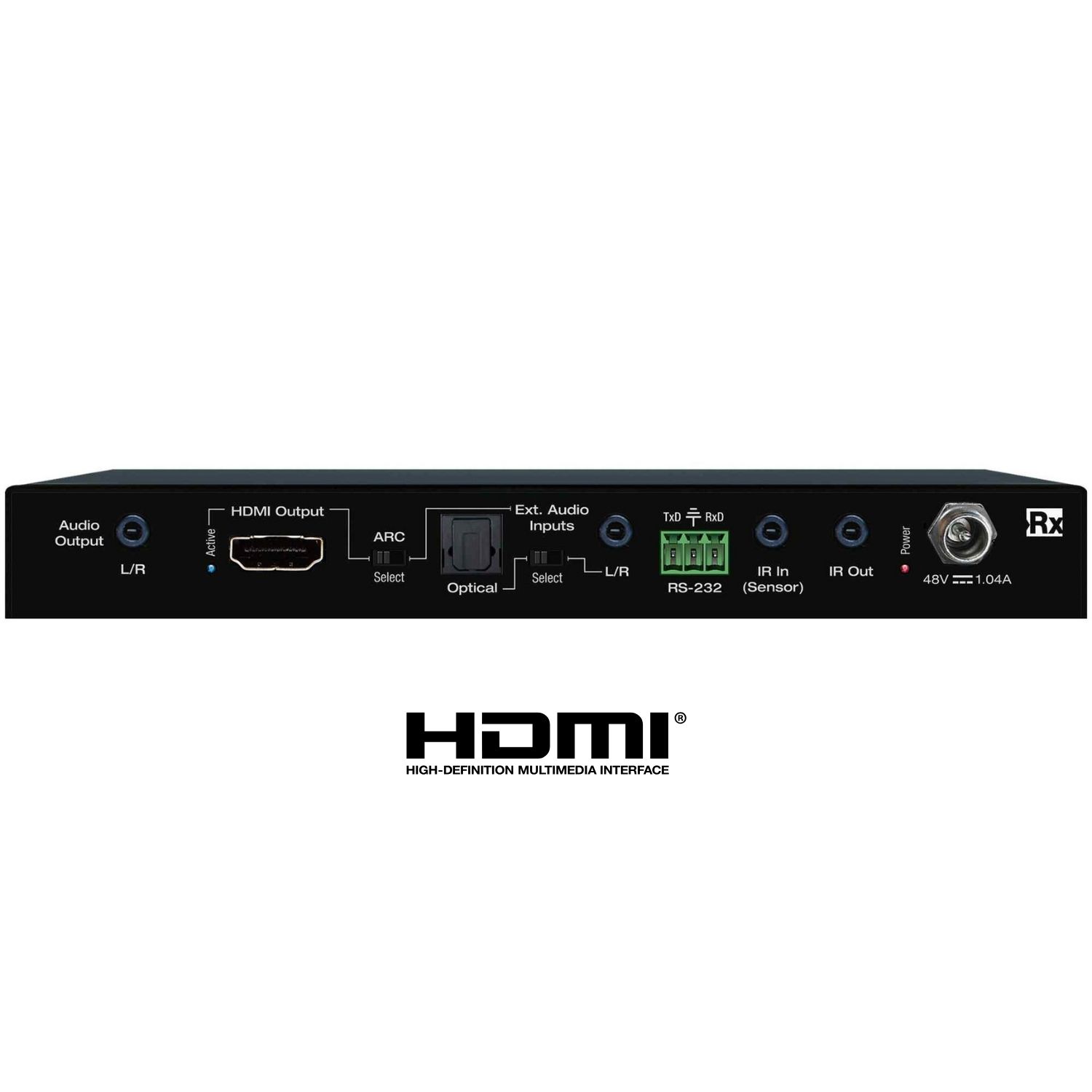

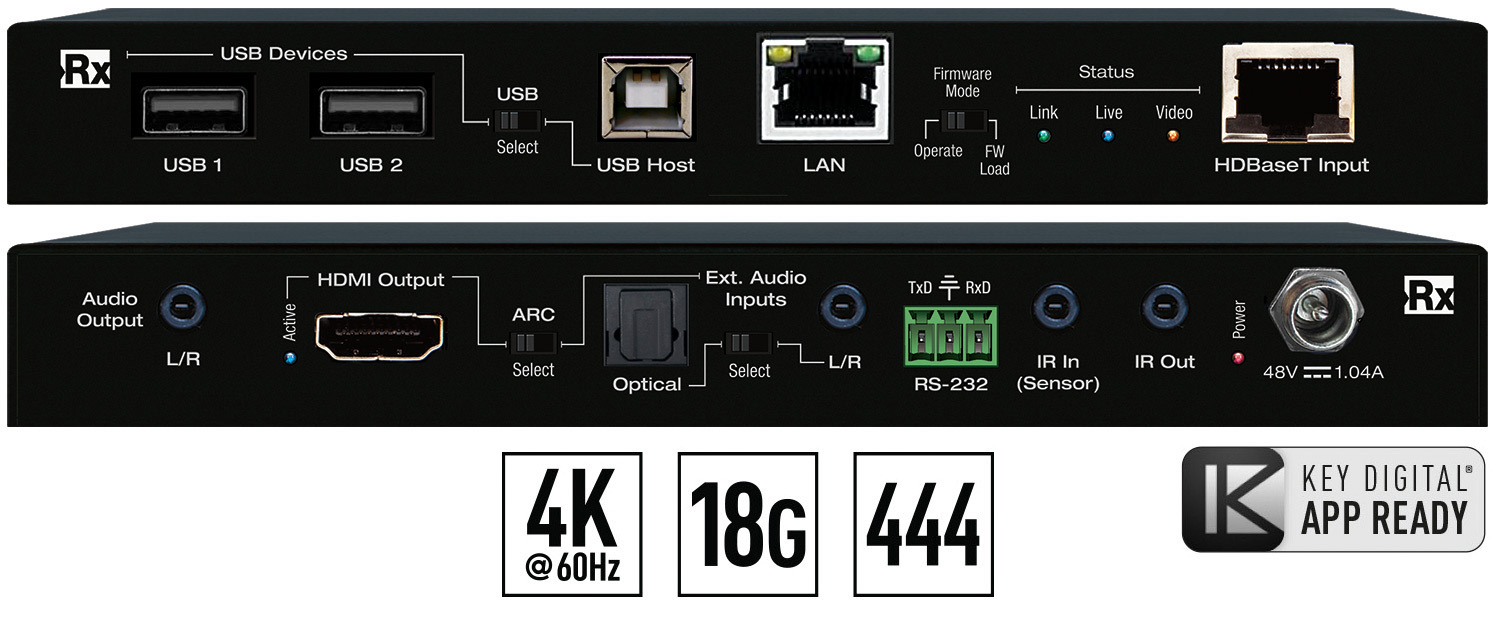

KD-X100MRx
HDMI over 100m CAT6 HDBaseT Receiver for UCC Solutions
- Integrates natively with KD-X4x1WUTx, KD-X3x1WUTx, or KD-PS22UTx transmitters (sold separately)
- Provides power to transmitter
- Part of a complete AV + USB 2.0 singal management solution for conference space
- Extends 4K 18Gbps signals with HDR up to 328ft / 100m and 1080p signals up to 492ft / 150m
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
where to purchase
introduction
KD-X100MRx is a 4K/UHD, HDCP2.2 compliant HDBaseT receiver with 18Gbps bandwidth, flexible Audio Return Channel (ARC), audio de-embedding, and USB 2.0 for a complete soft-codec enabling extension receiver. KD-X100MRx is sold a la carte to natively integrate with KD-X4x1WUTx, KD-X3x1WUTx, or KD-PS22UTx (sold separately), provides power to the Tx unit, and de=embeds audio for ease of integrating the selected source with audio systems. USB Host and Device ports enable keyboard, mouse, cameras, USB microphones or mixed audio signals from DSPs to be fed back to the conferencing host Computer at the Wall plate or presentation switcher. In addition to AV signals, KD-X4x1WUTx extends IR, RS-232, and TCP/IP for controlling remotely located equipment.
Features
- Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters (sold separately). Also integrates natively and is included with KD-UPS52U
- Video Conference USB Hub: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
- Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-PS22UTx. Rx is powered by Tx when integrated with KD-UPS52U
- Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R connector
- ARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs
- CEC Manager™: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U
- PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher
- KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Signal Extension: 4K/UHD (18G) up to 100m / 328 ft. 1080p Up to 150m / 492 ft
- Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
- Low Profile: Super slim chassis design
Additional Features
HDR: More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
RS-232: Bi-Directional control to/from Tx/Presentation Switch and Rx unit
downloads
UCC Product Power Supplies
Operating Manual
Catalog Page
Hires Image
Diagrams

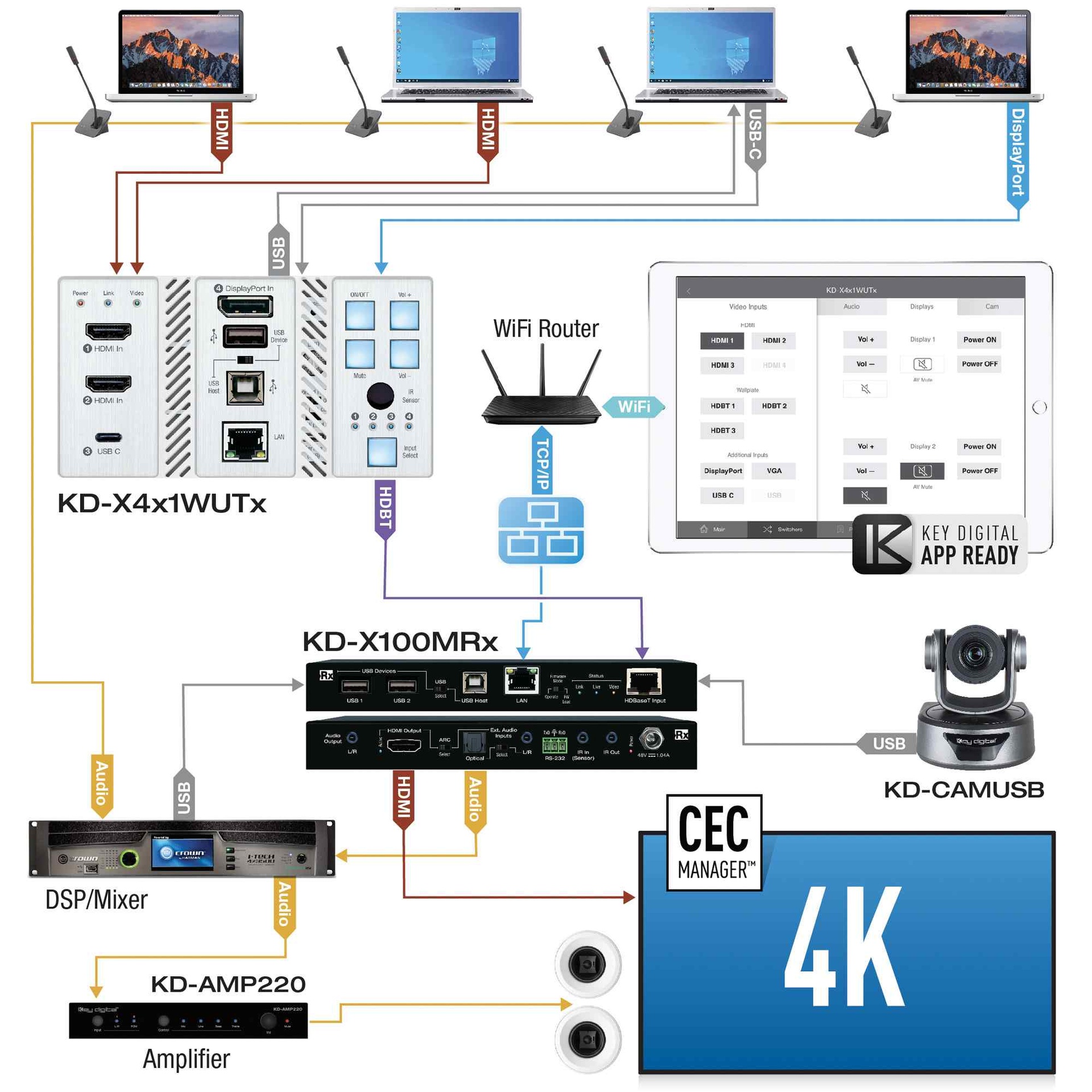

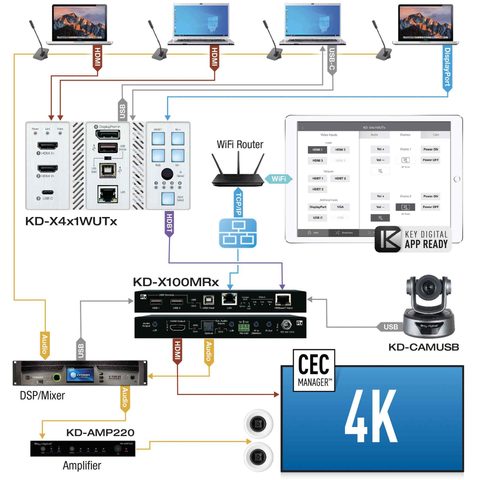

Conference Room Application
Training Room Application
Huddle Space Application
Conference Room Application
Training Room Application
Lecture Hall Application
Huddle Space Application
Conference Room Application
Board Room Application
Application Example
specifications
Technical:
- Inputs: 1 HDBaseT, 1 L/R Stereo Audio, 1 Optical Audio, 1 Bi-Directional RS-232, 1 IR
- Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
- USB: USB2.0 on 2 USB A and 1 USB B connection
- LAN: Shielded TCP/IP 1G/100 BaseT
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- HDMI Connector: Type A, 19 Pin Female
- Analog Audio: Line level audio on 3.5mm TRS connector
- Digital Audio Output: TOSlink optical female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 96KHz
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR Connector: 2-pin phoenix terminal
- RS-232 Connector: 3-pin phoenix terminal
- Power: 48V / 1.04A, 50W
General:
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black metal
- Product: 7.16 x 4.8 x 0.87” (182 x 122.5 x 22.2mm); Weight: 1 lbs
- Packaging: 9.3” x 6.5” x 3.5” (235 x 165 x 90 mm); Weight: 2.0 lbs
accessories
- Power Supply (qty 1) 48V/1.04A, 50W, desktop type, model KDPS50W48VC
- Mounting bracket (qty 2)
- 3-pin phoenix terminal (qty 1)
- IR Sensor (qty 1)
- IR Emitter (qty 1)
technical documents
UCC Product Power Supplies
Operating Manual
Catalog Page
Hires Image
Images and Diagrams
Conference Room Application
Training Room Application
Huddle Space Application
Conference Room Application
Training Room Application
Lecture Hall Application
Huddle Space Application
Conference Room Application
Board Room Application
Application Example
