KD-XUSB2

USB 2.0 over CAT5e/6 Extender

  • Extends USB 2.0 devices such as webcams, keyboard, mouse, and audio DSPs to host computer up to 164ft / 50m away

  • Generic USB Video Class Driver for effortless use on Windows, Mac OS, and Linux machines with any video conference sotware or application

  • Rx unit with 2 USB A ports, for connecting multiple devices. Hub compatible

  • Only requires power supply on Tx unit. Can provide 5V 500mA power to USB devices.

Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2

introduction

KD-XUSB2 extender kit extends high bandwidth USB 1.1 - USB 2.0 signals over a single CAT5e/6 cable, without any driver installation required. KD-XUSB2 is an excellent choice for applications like conference rooms, classrooms, offices, and connected homes.

USB Device Integration

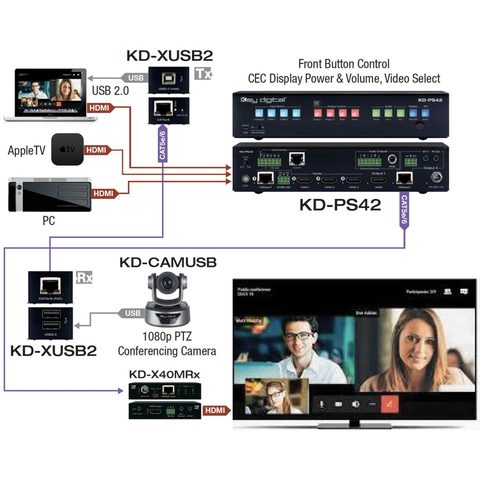

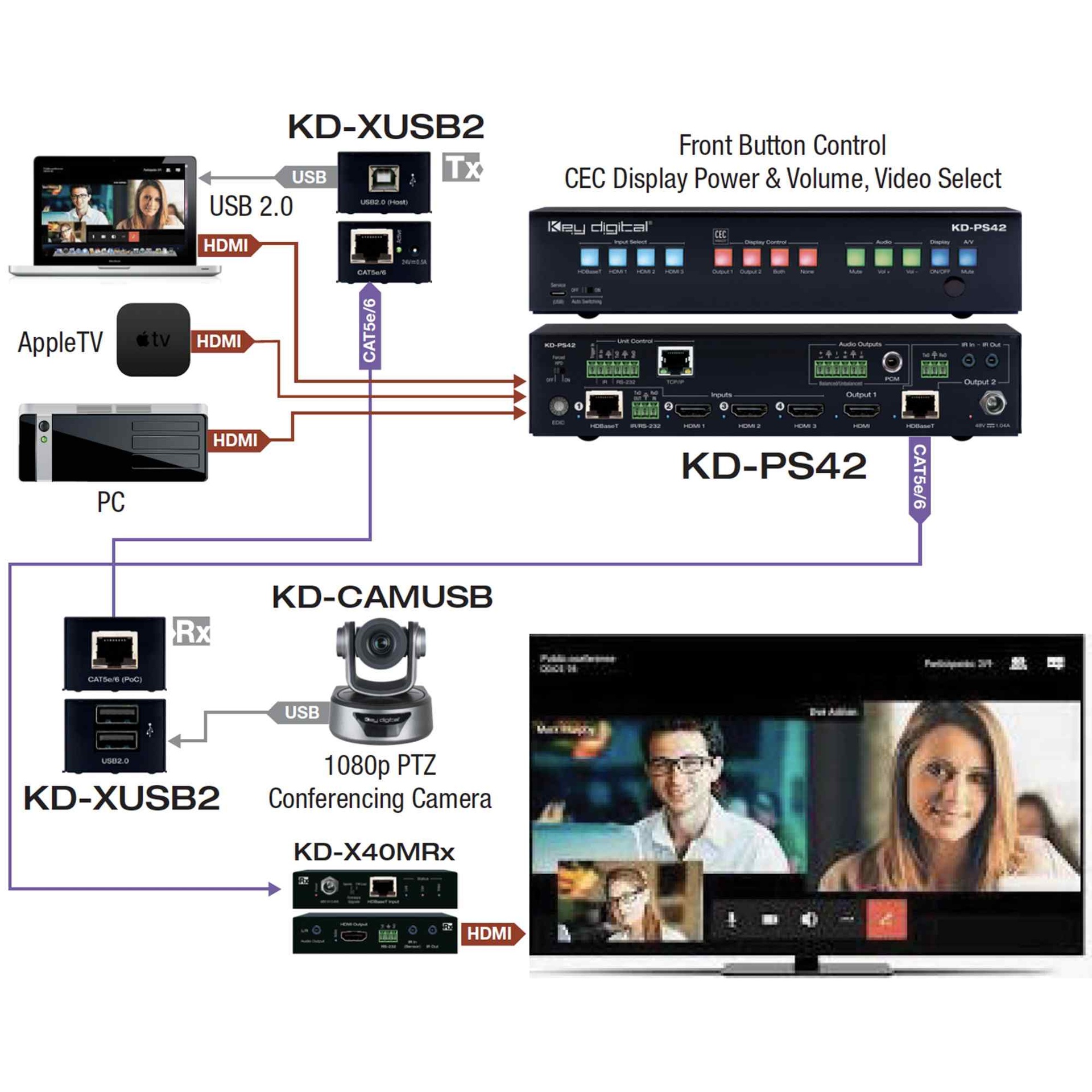

The KD-XUSB2 USB 2.0 extender allows host laptops, computers, smart TVs, and appliances to establish connections with an array of USB 2.0 devices. They include webcams, keyboard & mouse, hard drives, printers, scanners, USB microphones, touchscreen displays, conferencing DSPs, and more. This versatility ensures that users can easily integrate a diverse set of USB peripherals into their setups.

Extended Signal Range

The KD-XUSB2 USB CAT5 extender allows users to extend USB signals up to 164ft/50m using only one CAT5e/6 cable.

This extender kit streamlines cable management and installation, providing flexibility in device placement, and delivering reliable data far beyond the cable length limitations of passive USB cabling.

Transmitter and Receiver Connectivity

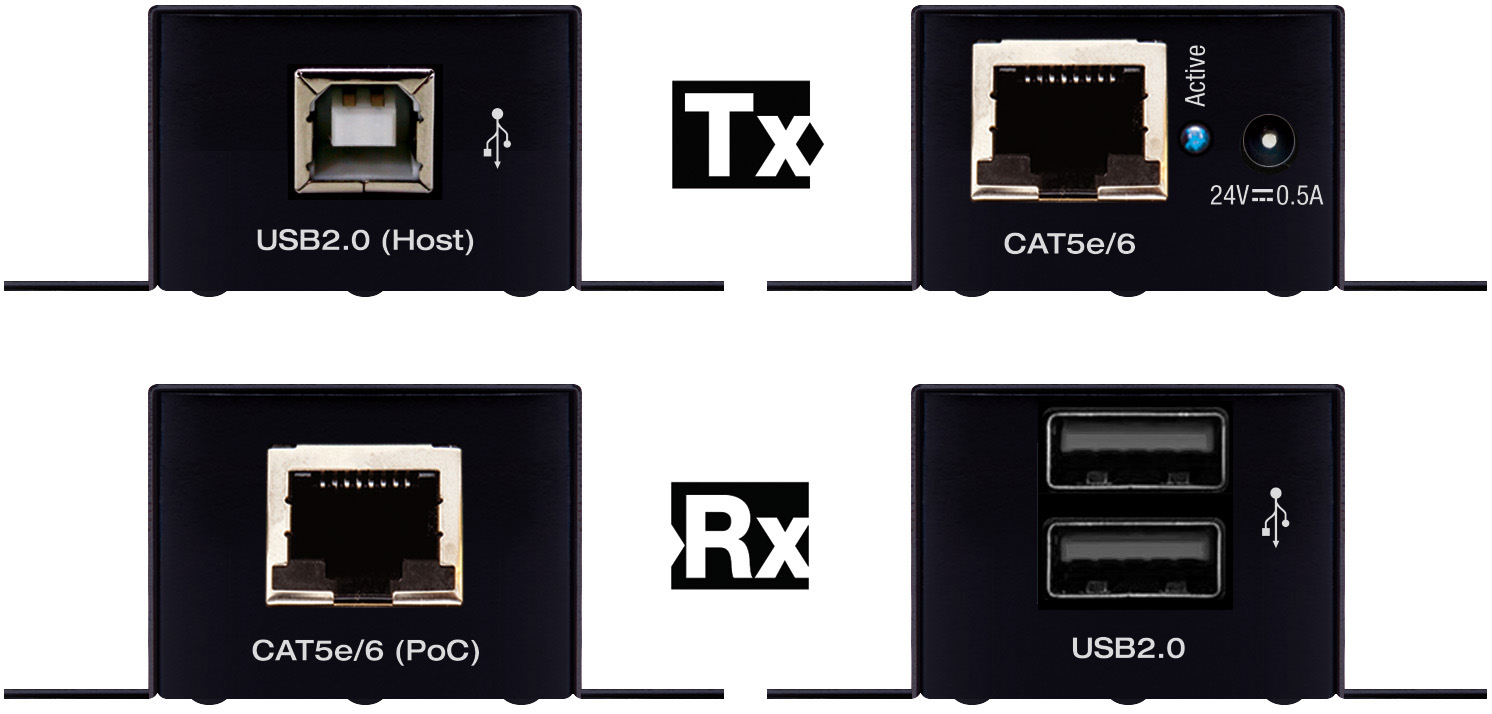

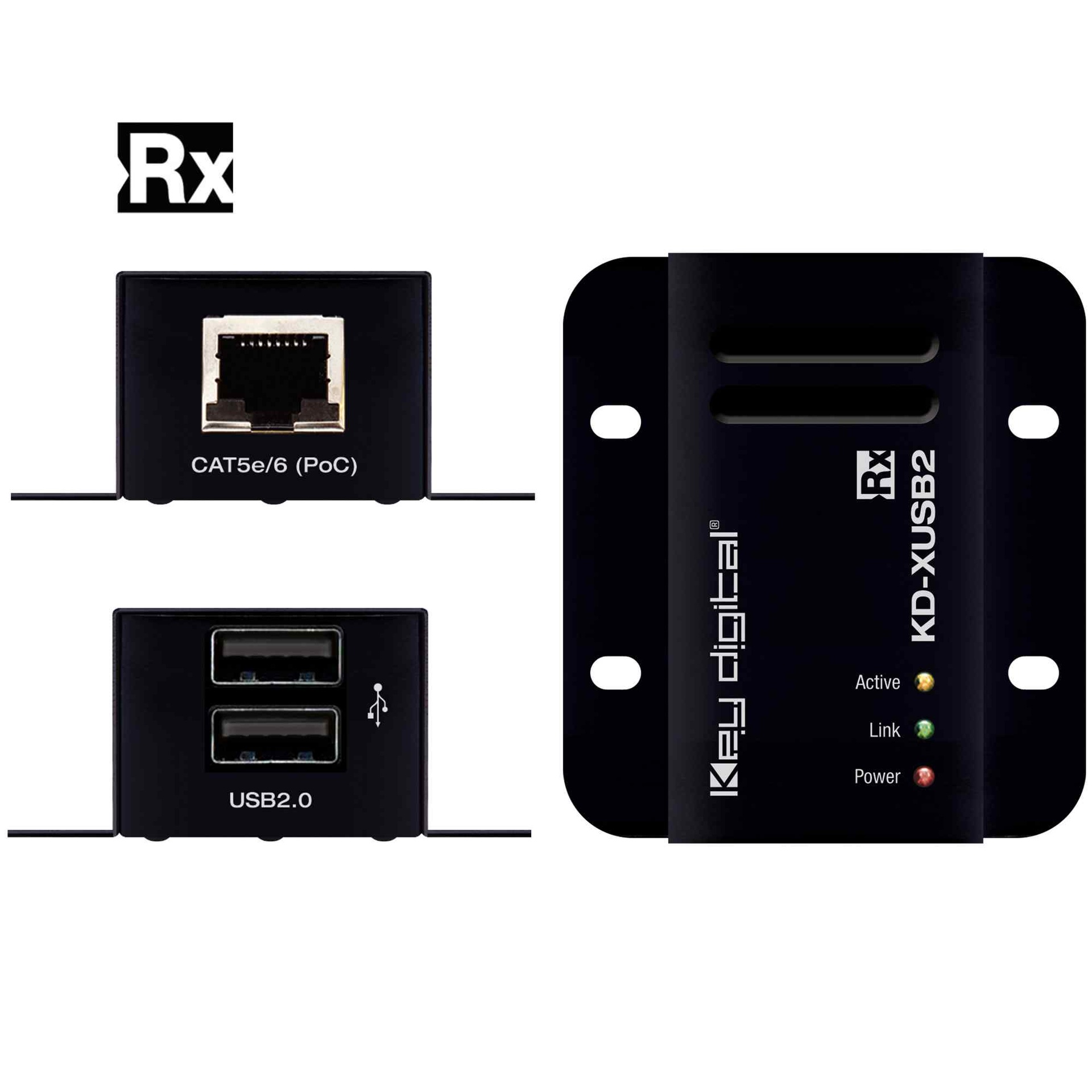

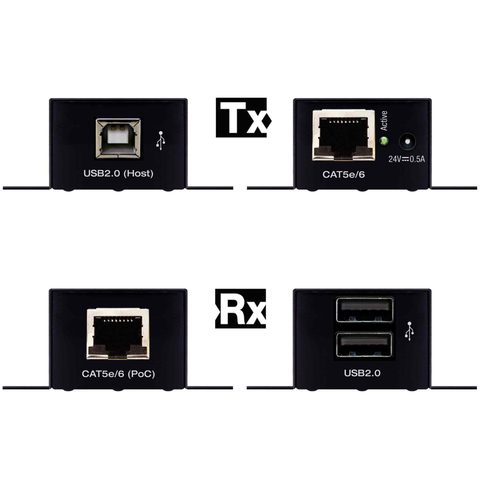

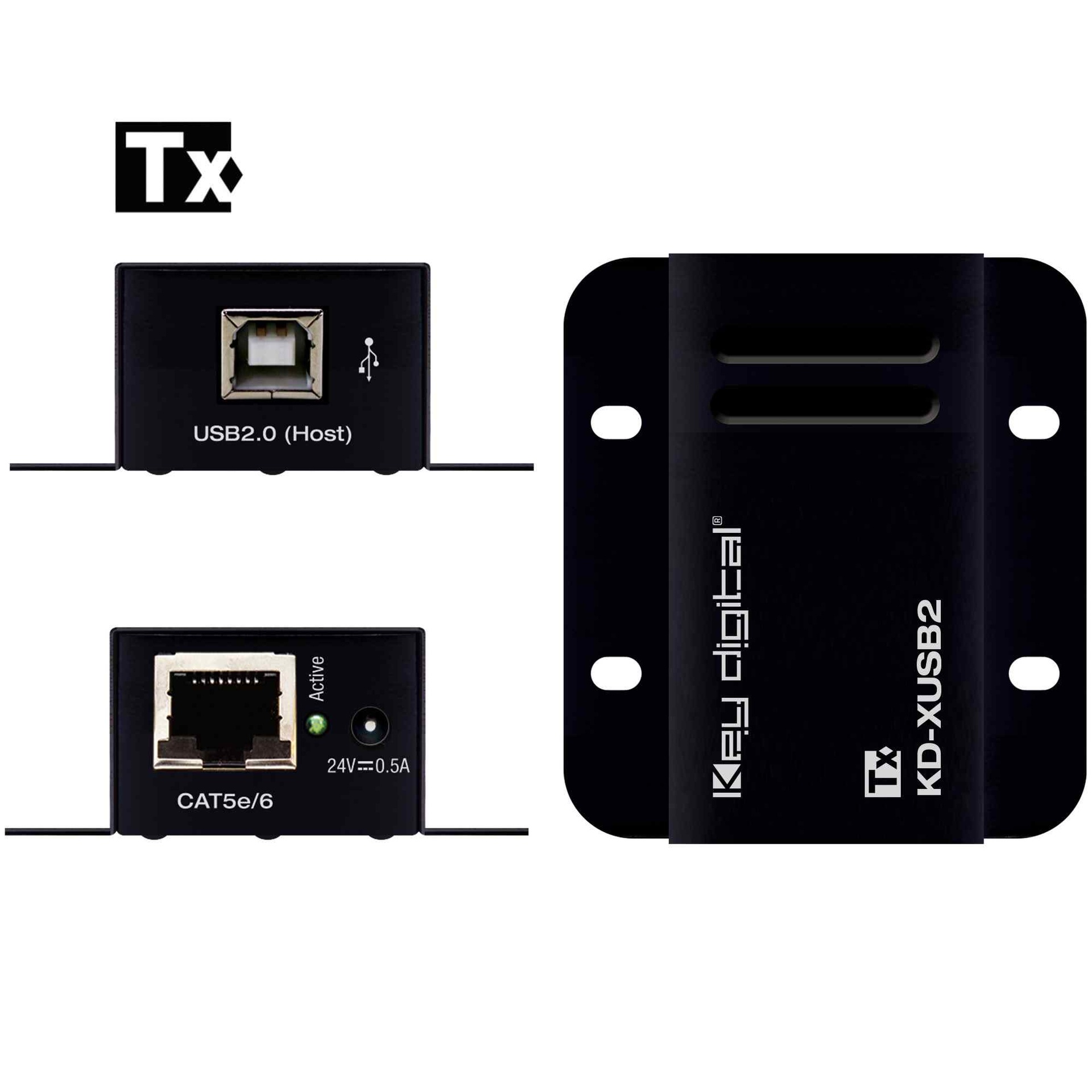

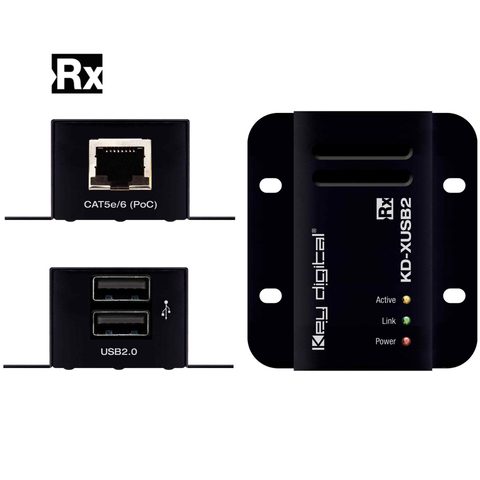

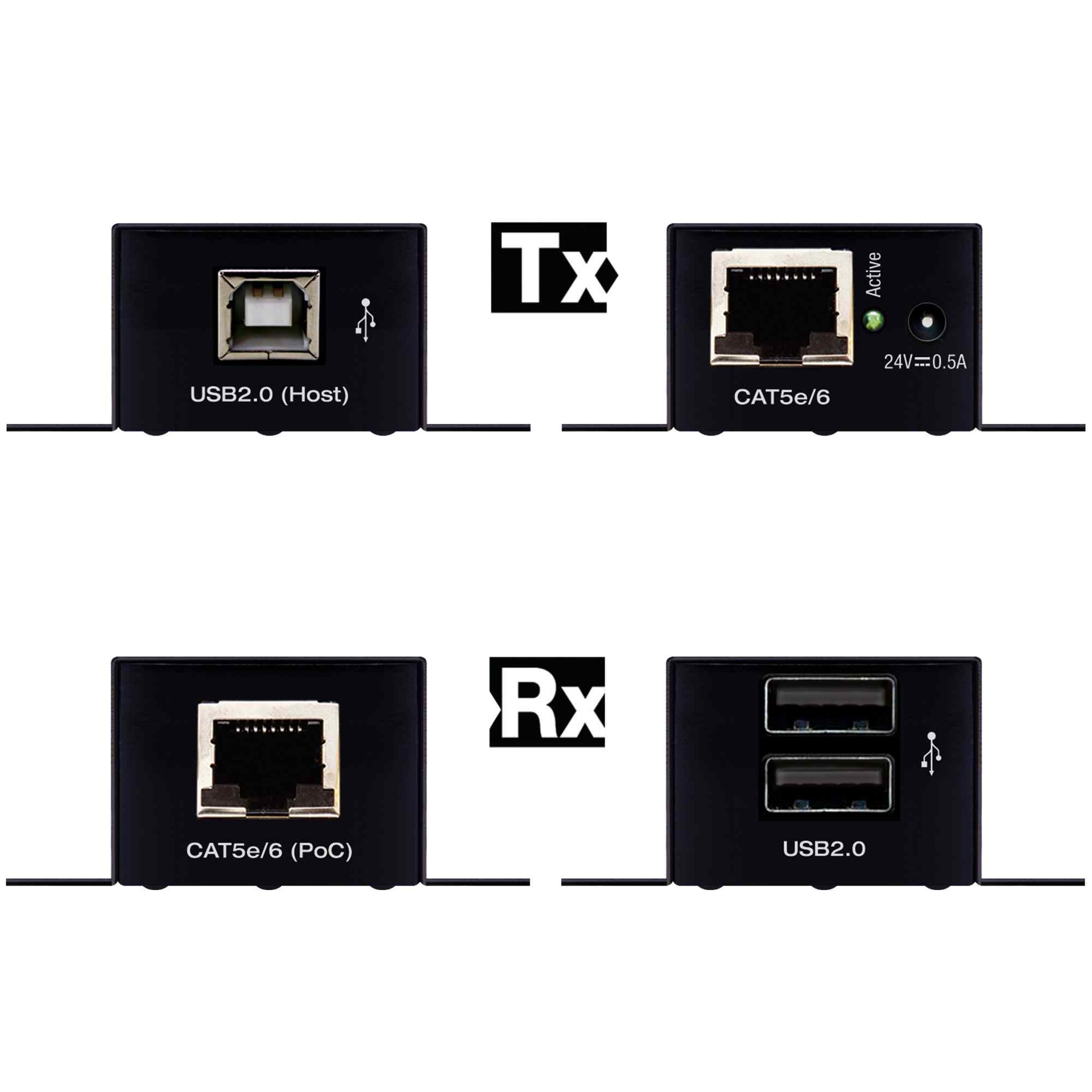

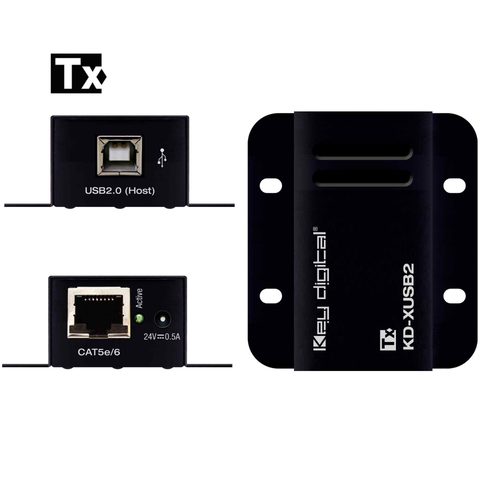

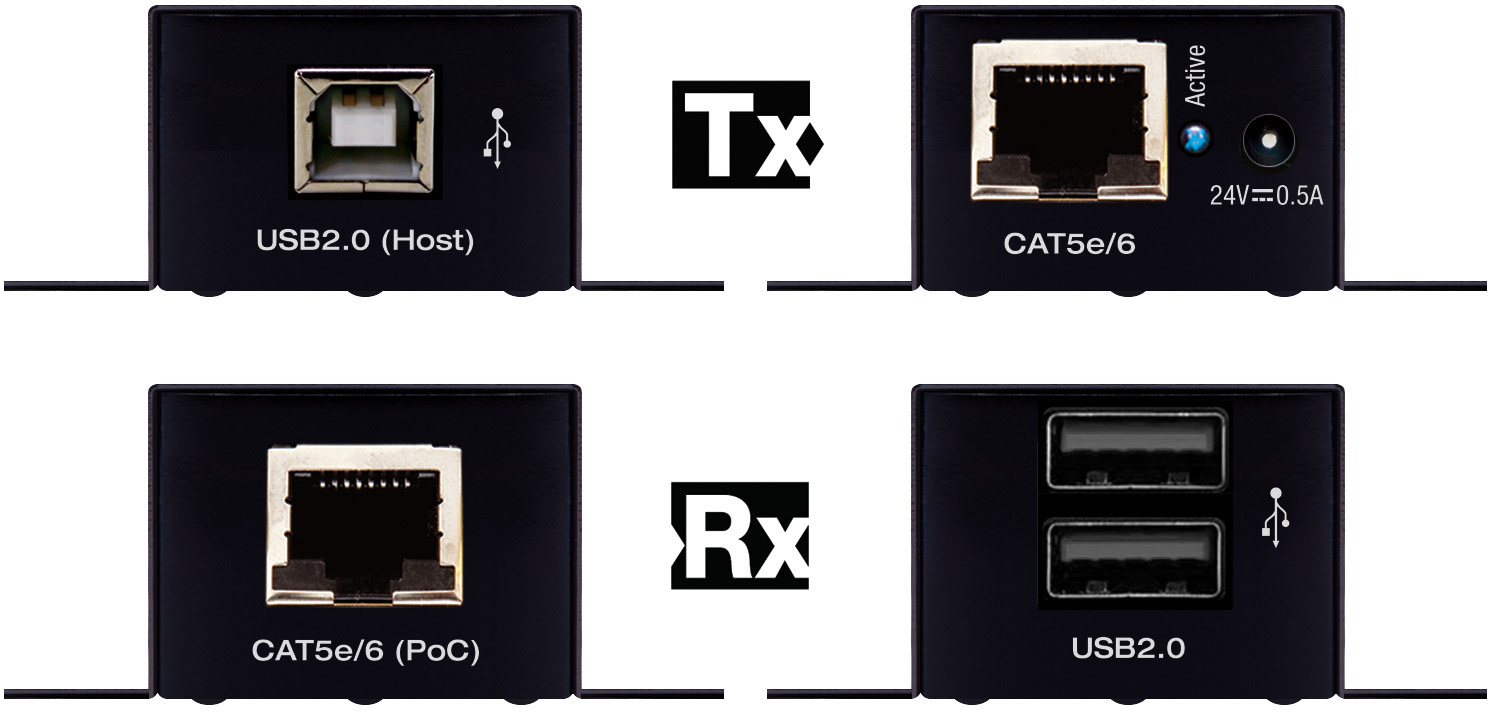

The transmitter has a USB-B port for connecting to the host, while the receiver boasts two USB-A ports for the USB peripheral devices.

Users can also connect the receiver to a USB hub, for support up to 15 devices.

Additionally, only the transmitter requires a power connection, simplifying the installation process.

Features

  • Signal Extension: Extends USB signals up to 50m / 164ft using CAT5e/6 cable
  • Data transfer rate: Supports Low, Full, and High data transfer speeds up to 480Mbps
  • Power Over CAT (PoC): Rx unit powered by Tx
  • USB Power to device: Rx unit may provide 5V 500mA powering to connected device
  • Backward Compatible: Supports USB versions 1.1 thru 2.0
  • Installation: Compact size with L bracket chassis, ideal for mounting at tables, desks, or walls
  • Hub Compatible: Supports up to 15 connect USB devices with USB hub connected to Rx unit
  • No software required: Effortless use on Windows, Mac, and Linux machines

Additional Features

downloads

Catalog Page
Operation Manual
Hires Image

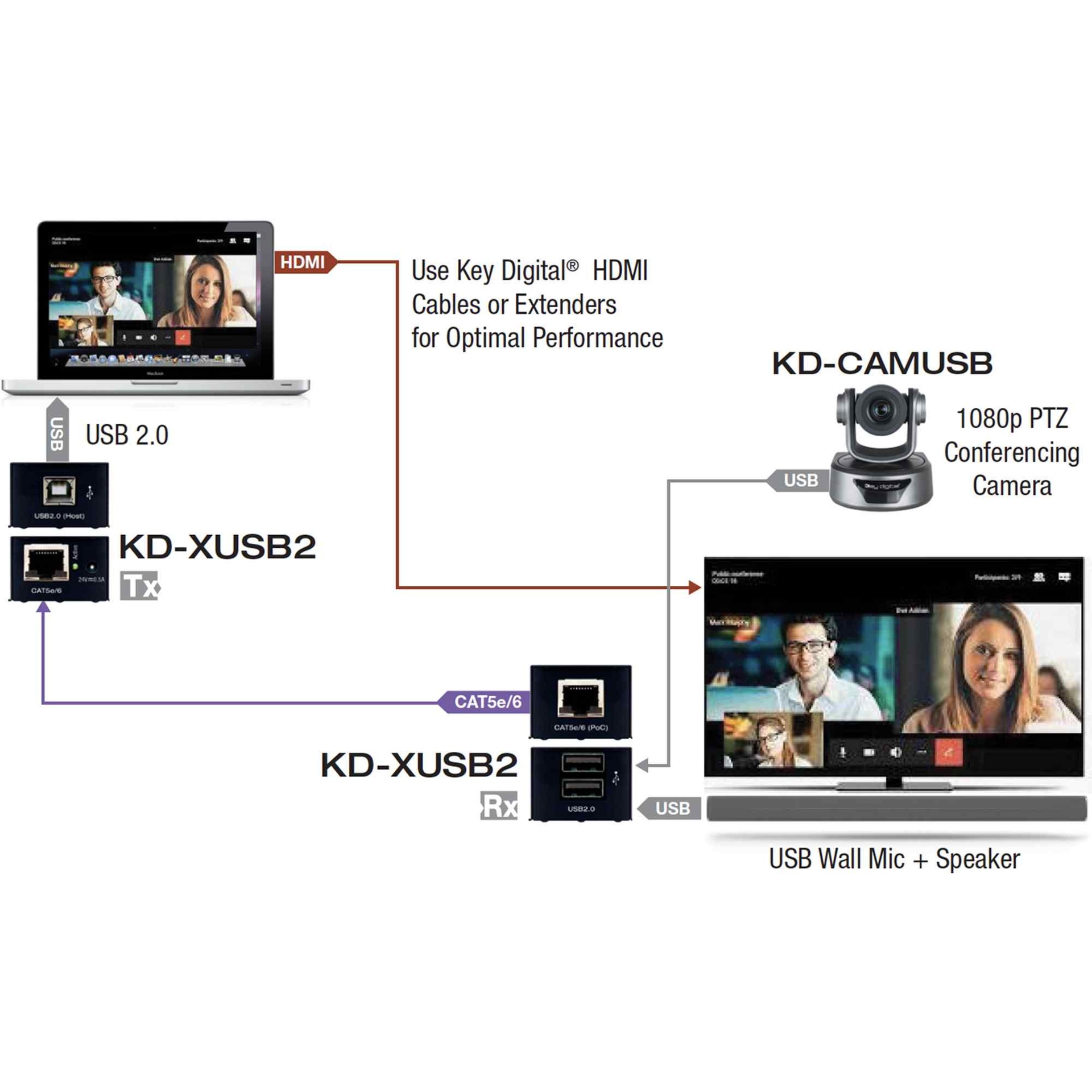

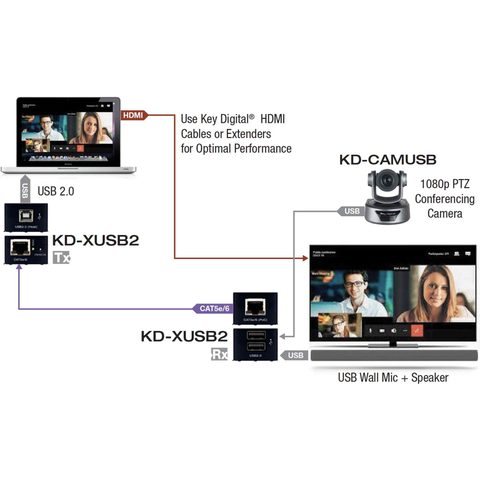

Diagrams

Classroom Application
Conference Room Application

specifications

Technical:

  • Inputs Tx (Each): 1 USB-B
  • Outputs Tx (Each): 1 CAT5e/6
  • Inputs Rx (Each): 1 CAT5e/6
  • Outputs Rx (Each): 2 USB-A

General:

  • Regulation: CE, FCC, RoHS, WEEE, EAC
  • Enclosure: Black Metal
  • Product (Tx): 2.6 x 2.37 x 0.93” (67 x 60.2 x 23.7mm), Weight: 0.3 lbs
  • Product (Rx): 2.6 x 2.37 x 1.1” (67 x 60.2 x 26.1mm), Weight: 0.3 lbs
  • Packaging: 9 x 7.8 x 2.5” (230 x 198 x 63mm), Weight: 1 lbs

accessories

  • Power supply (24V / 0.5A) (qty 1)
  • 2 ft USB-A – USB-B cable (qty 1)
