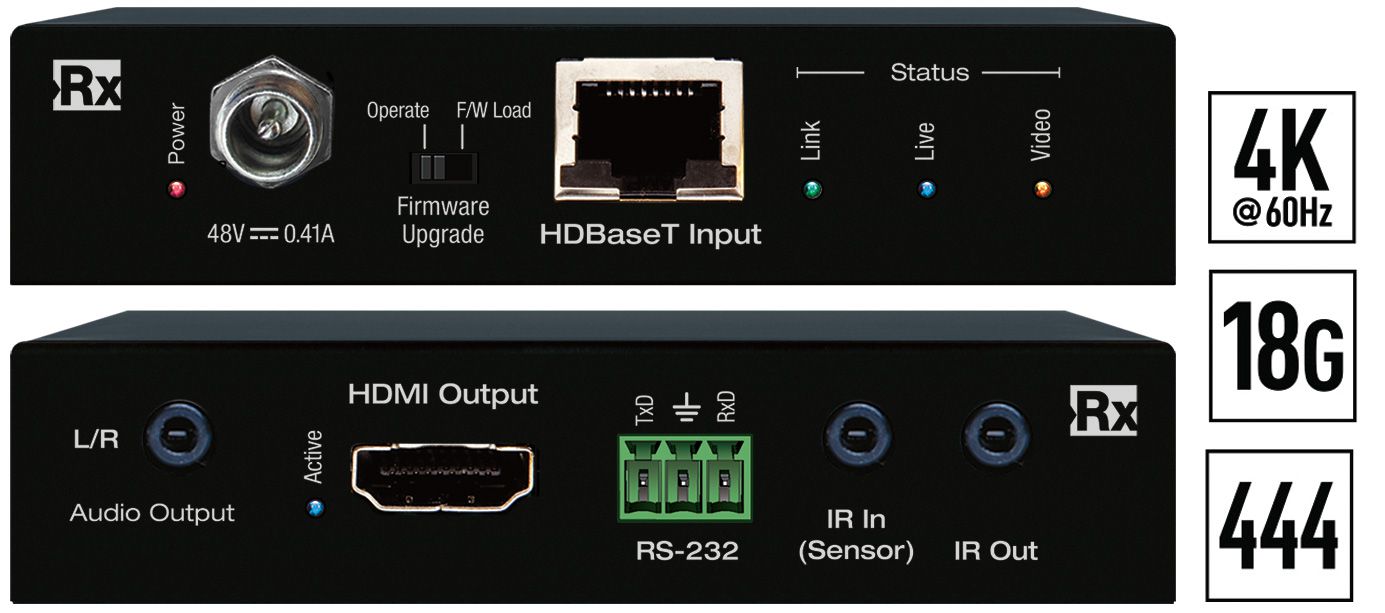

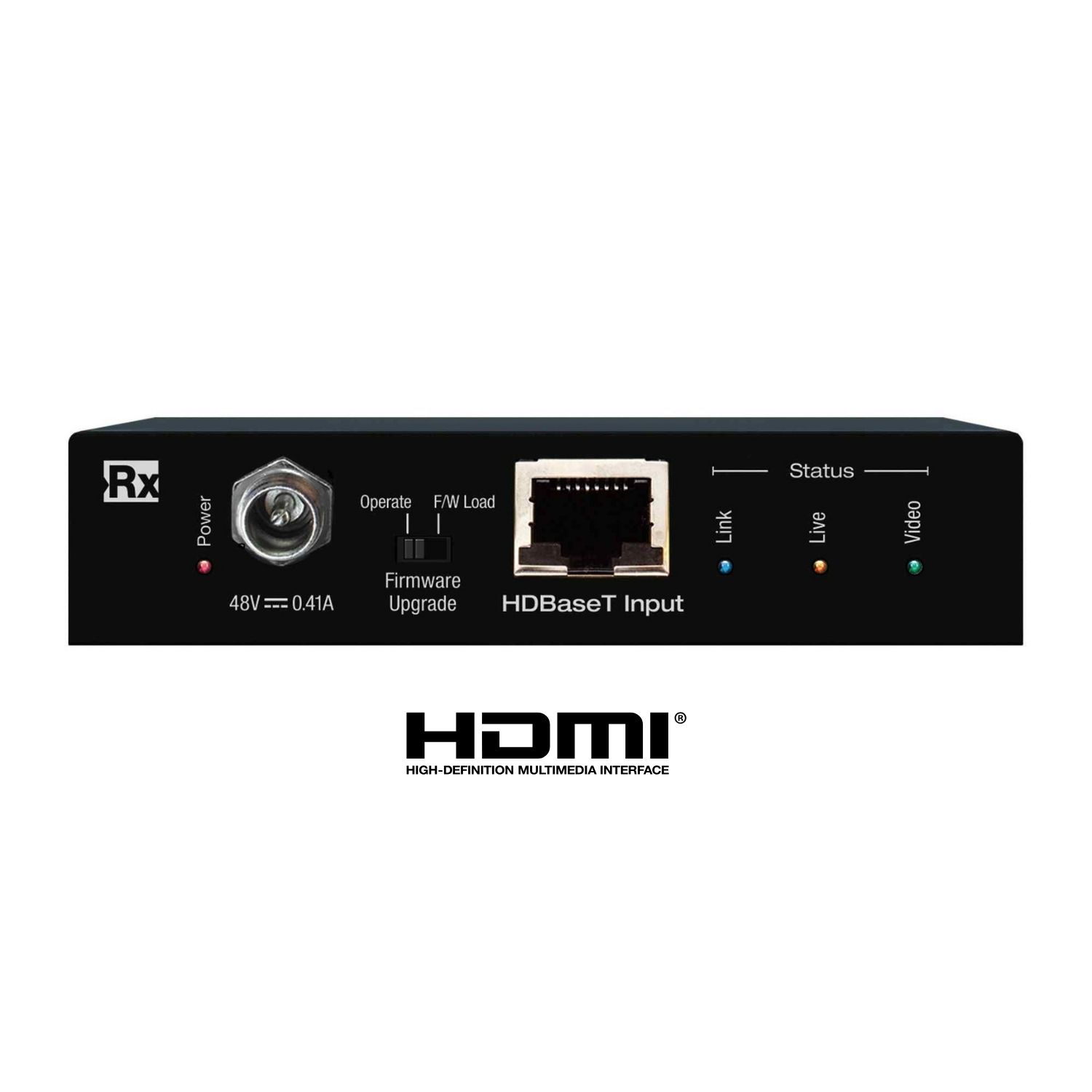

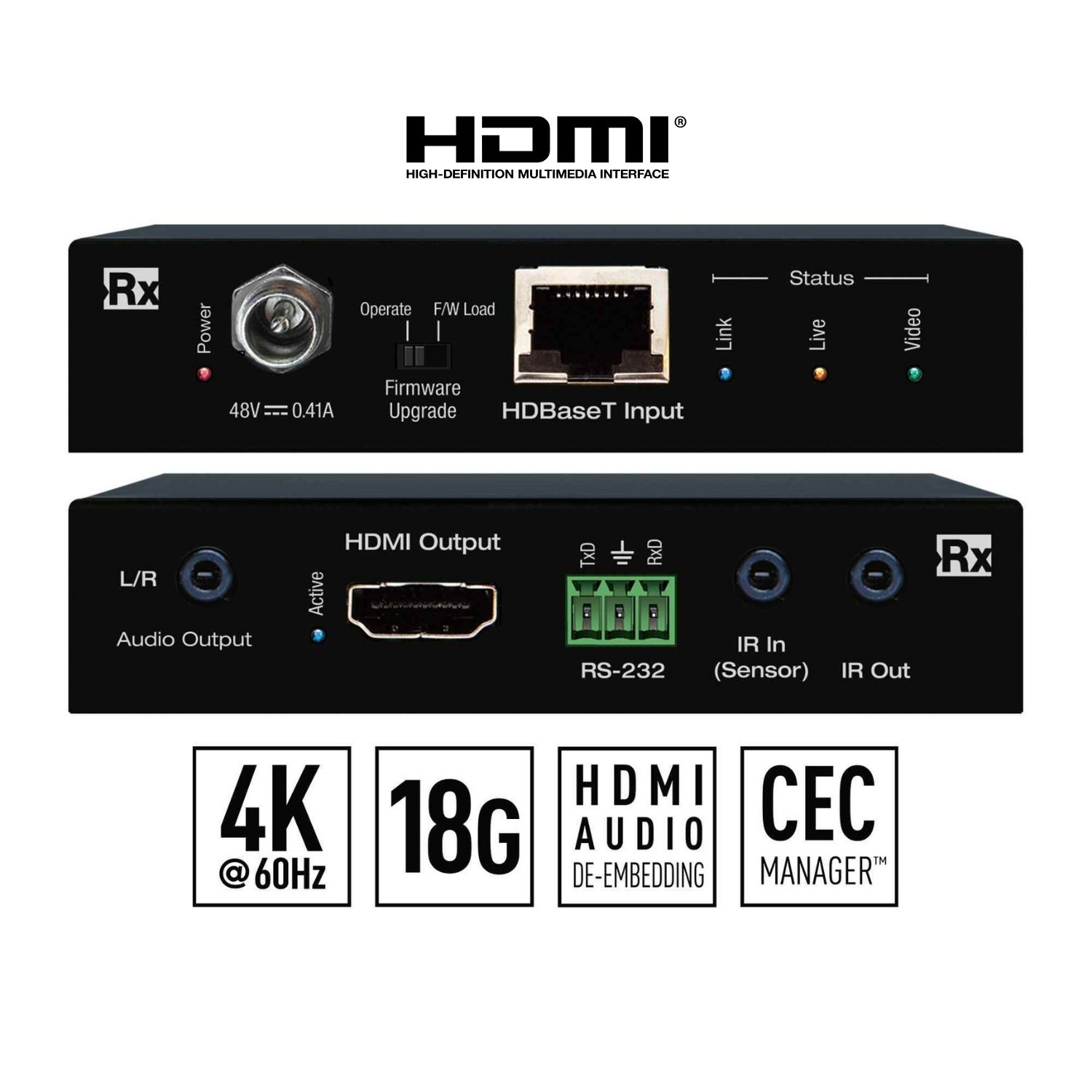

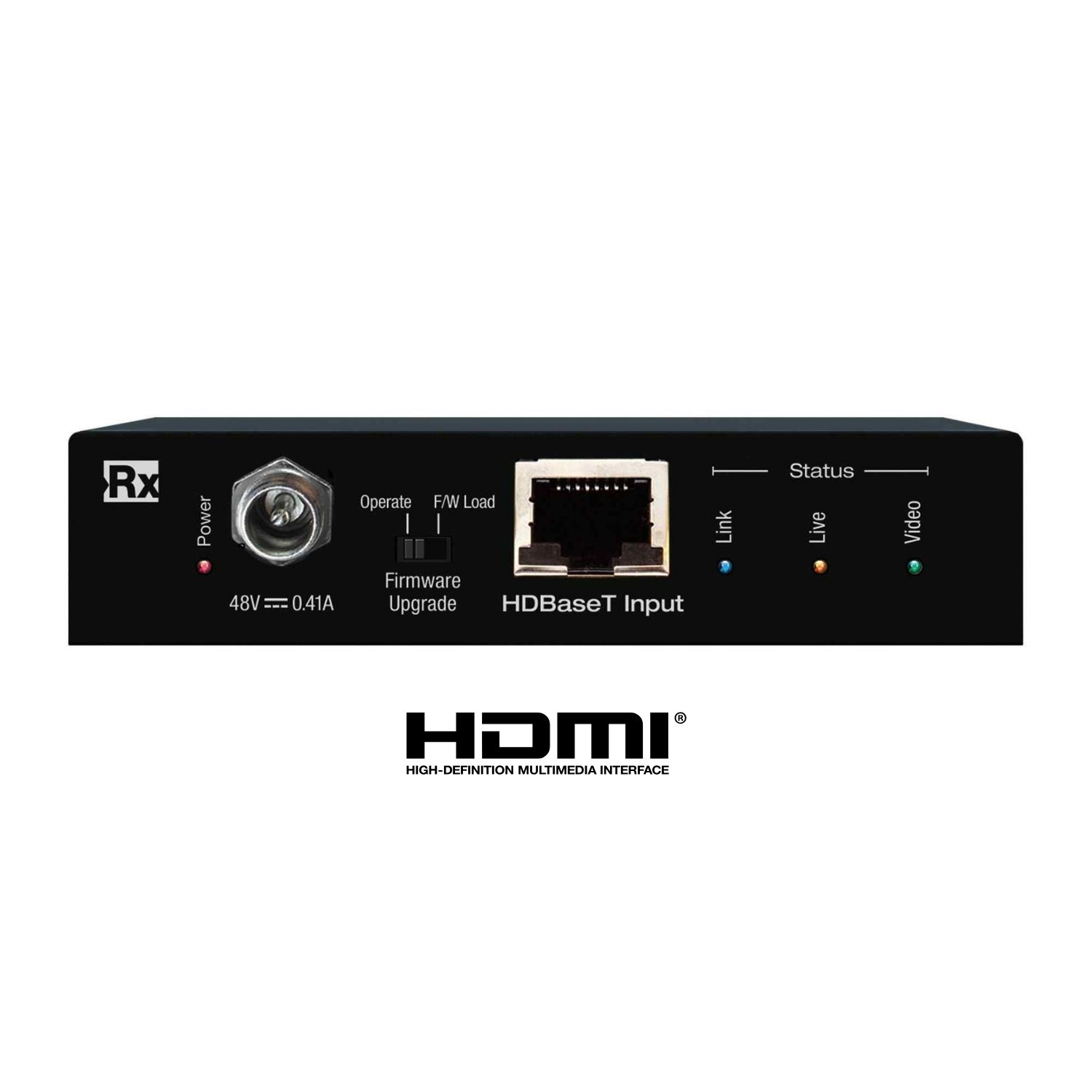

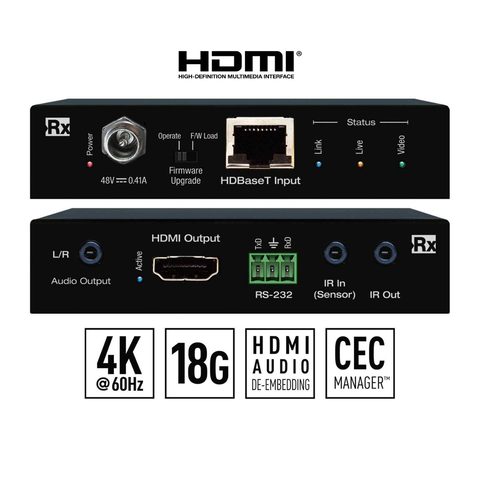

KD-X40MRx
HDMI over 40m CAT6 HDBaseT Receiver for UCC Solutions

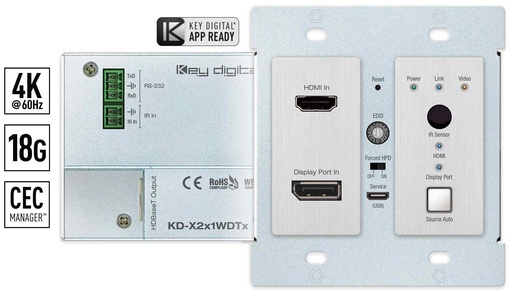

Integrates natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately)
Provides power to transmitter
De-embeds audio from incoming signal
Extends 4K 18Gbps signals with HDR up to 130ft / 40m and 1080p signals up to 230ft / 70m
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
where to purchase
introduction

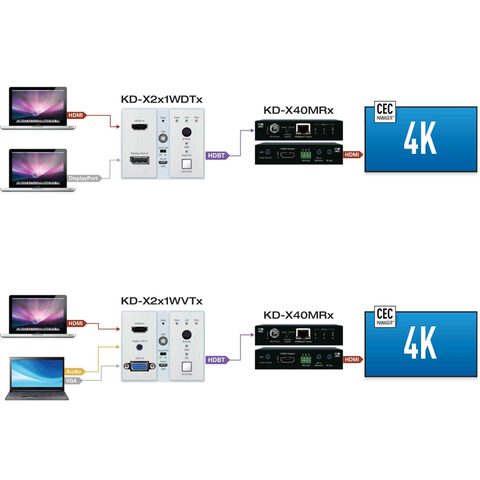

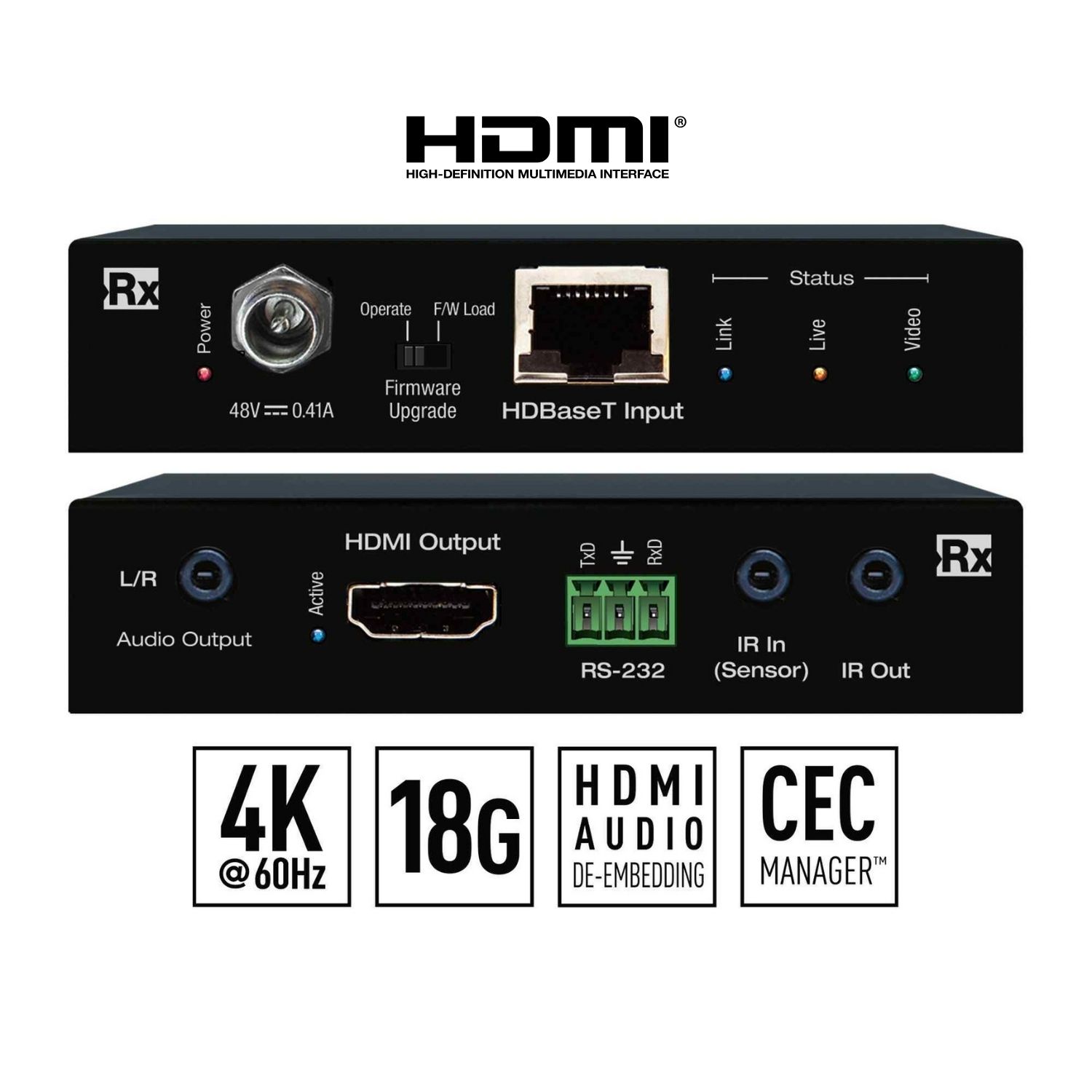

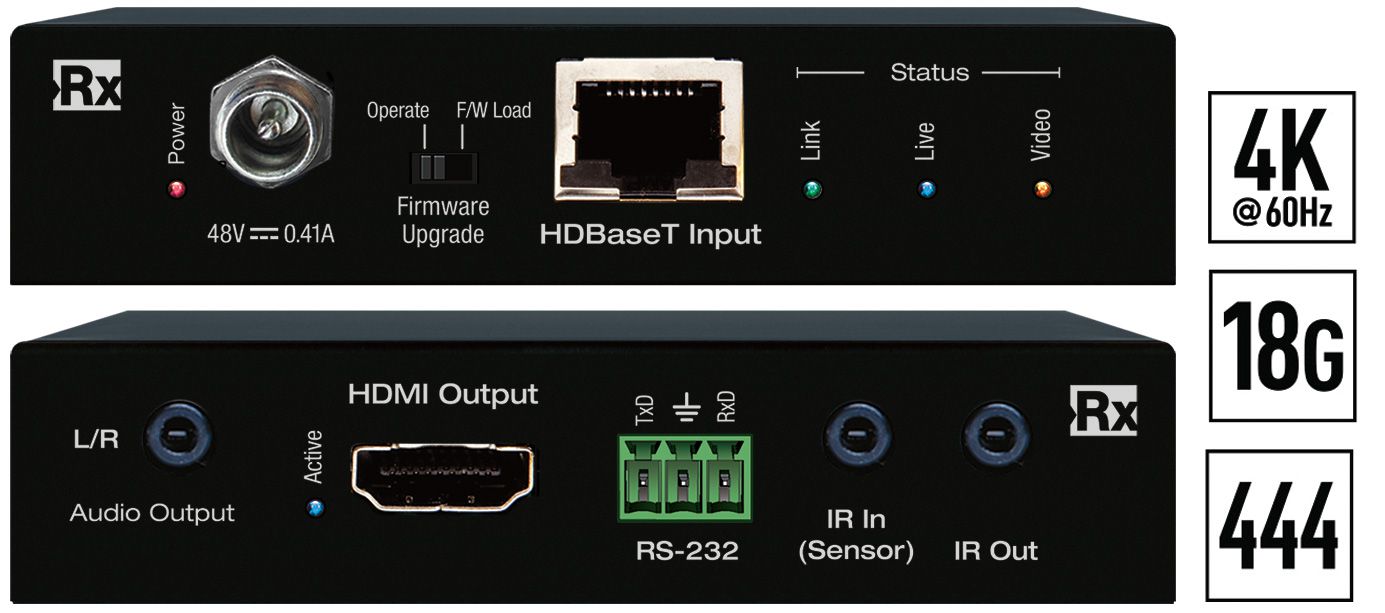

KD-X40MRx is a 4K/UHD, HDCP2.2 compliant HDBaseT receiver with 18Gbps bandwidth for extension of digital video signals with the latest standards in resolution, HDR, and Chroma. KD-X40MRx is sold a la carte to natively integrate with Key Digital HDBaseT wall-plate transmitters, KD-X2x1WDTx or KD-X2x1WVTx. KD-X40MRx provides power to the wall plate transmitter, and de-embed the incoming audio signal for ease of integrating the selected wall plate source with audio systems. In addition to AV signals, KD-X40MRx extends IR and RS-232 for controlling remotely located equipment.
Features
- Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
- Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately)
- Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
- Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
- CEC Manager™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Low Profile: Super slim chassis design
Additional Features
HDR: More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
downloads
UCC_PowerSupplyNotice.pdf
KD-X40MRx Manual.pdf
KD-X40MRx_CatalogPage.pdf
Diagrams
Diagram_6.pdf
Diagram_4.pdf
Diagram_3.pdf
Diagram_2.pdf
Diagram_5.pdf
Diagram_8.pdf
Diagram_7.pdf

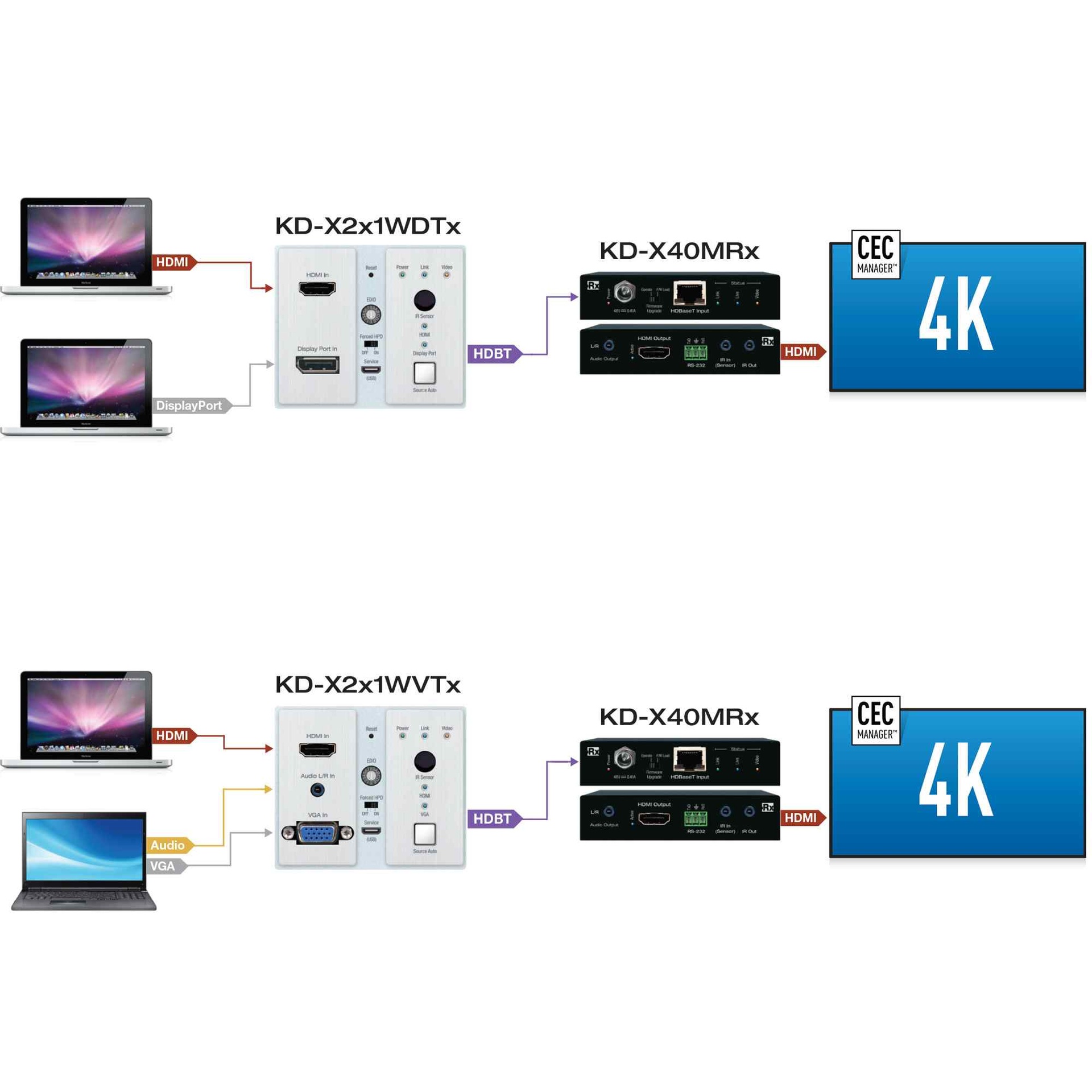

KD-X40MRx_AppExample.pdf
specifications
Technical:
- Inputs: 1 HDBaseT, 1 Bi-Directional RS-232, 1 IR

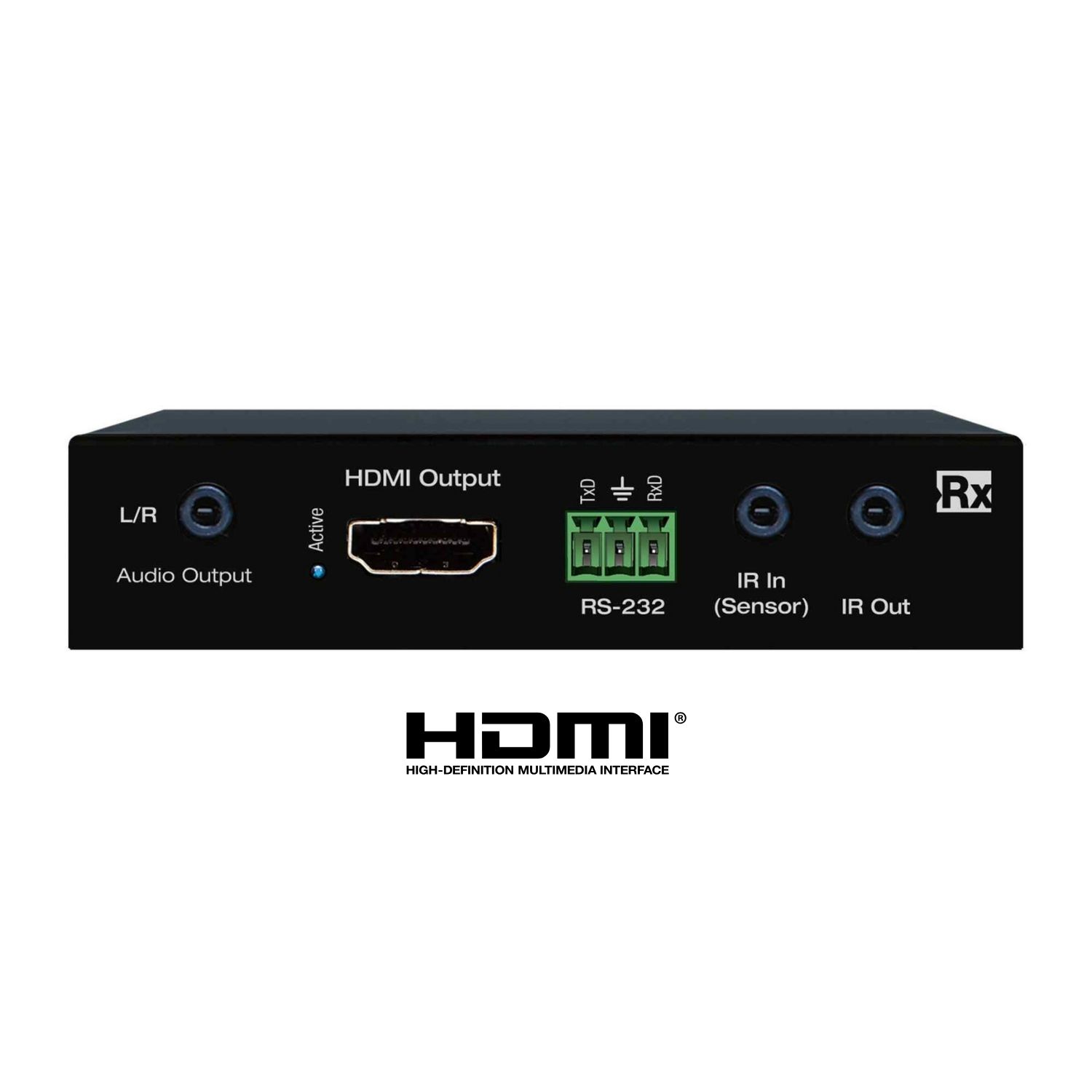

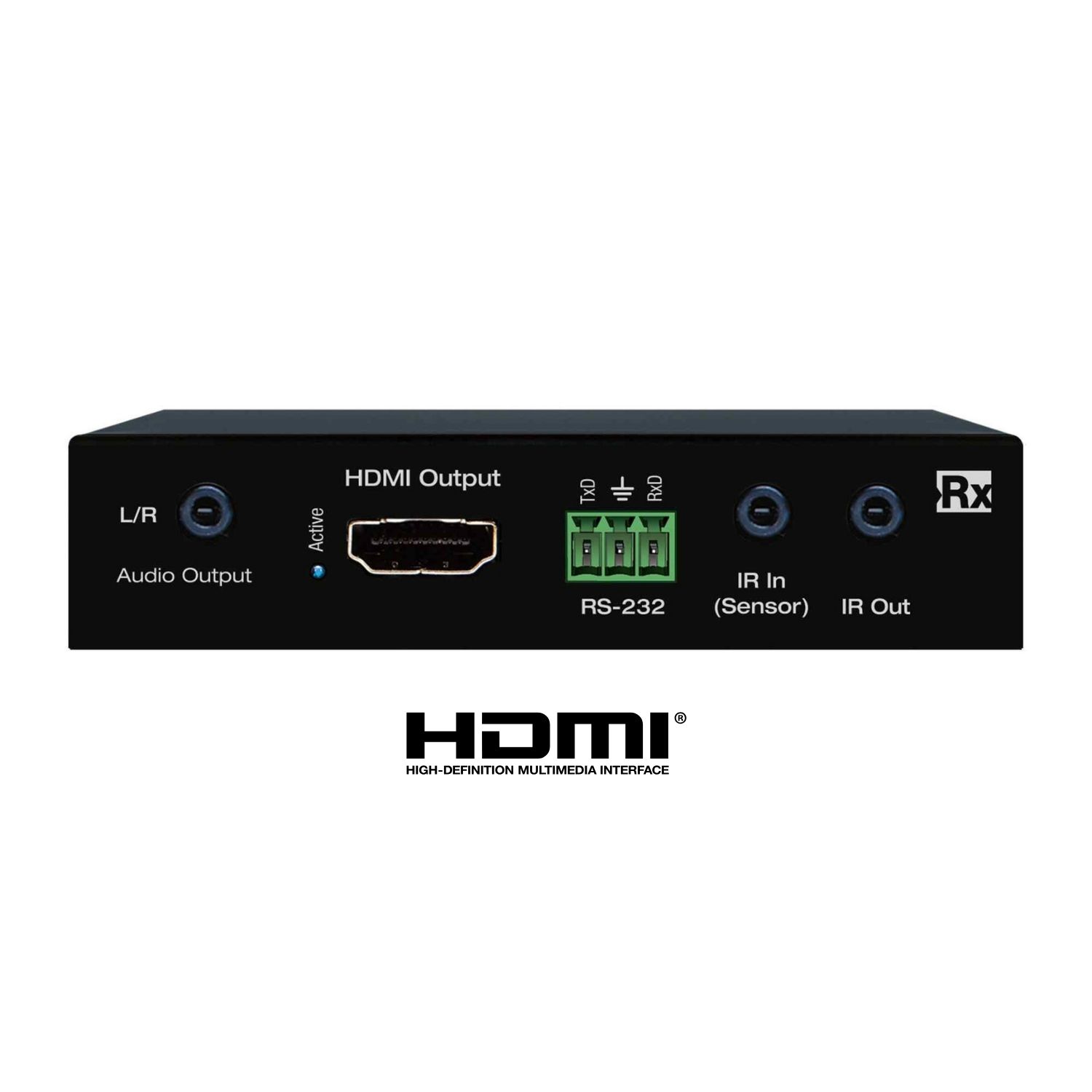

- Outputs: 1 HDMI, 1 L/R Stereo Audio, 1 Bi-Directional RS-232, 1 IR
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- HDMI Connector: Type A, 19 Pin Female
- Audio Connector: 3.5mm Stereo Female
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR In Connector: 3.5mm Stereo female
- IR Out Connector: 3.5mm Mono female
- RS-232 Connector: 3-pin phoenix terminal
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black meta
- Dimensions: 5.35” x 3.95” x 0.9” (136 x 100.4 x 22.95 mm)
- Product Weight: 0.4 lbs
- Packaging: 10” x 7.3” x 2.1” (255 x 185 x 55 mm)
- Packaging Weight: 1.3 lbs
accessories
- Power Supply (qty 1) 48V/0.41A, 20W, desktop type, model KDPS20W48VC
- Mounting bracket (qty 2)
- IR Sensor (qty 1)
- IR Emitter (qty 1)
- 3-pin phoenix terminal (qty 1)
