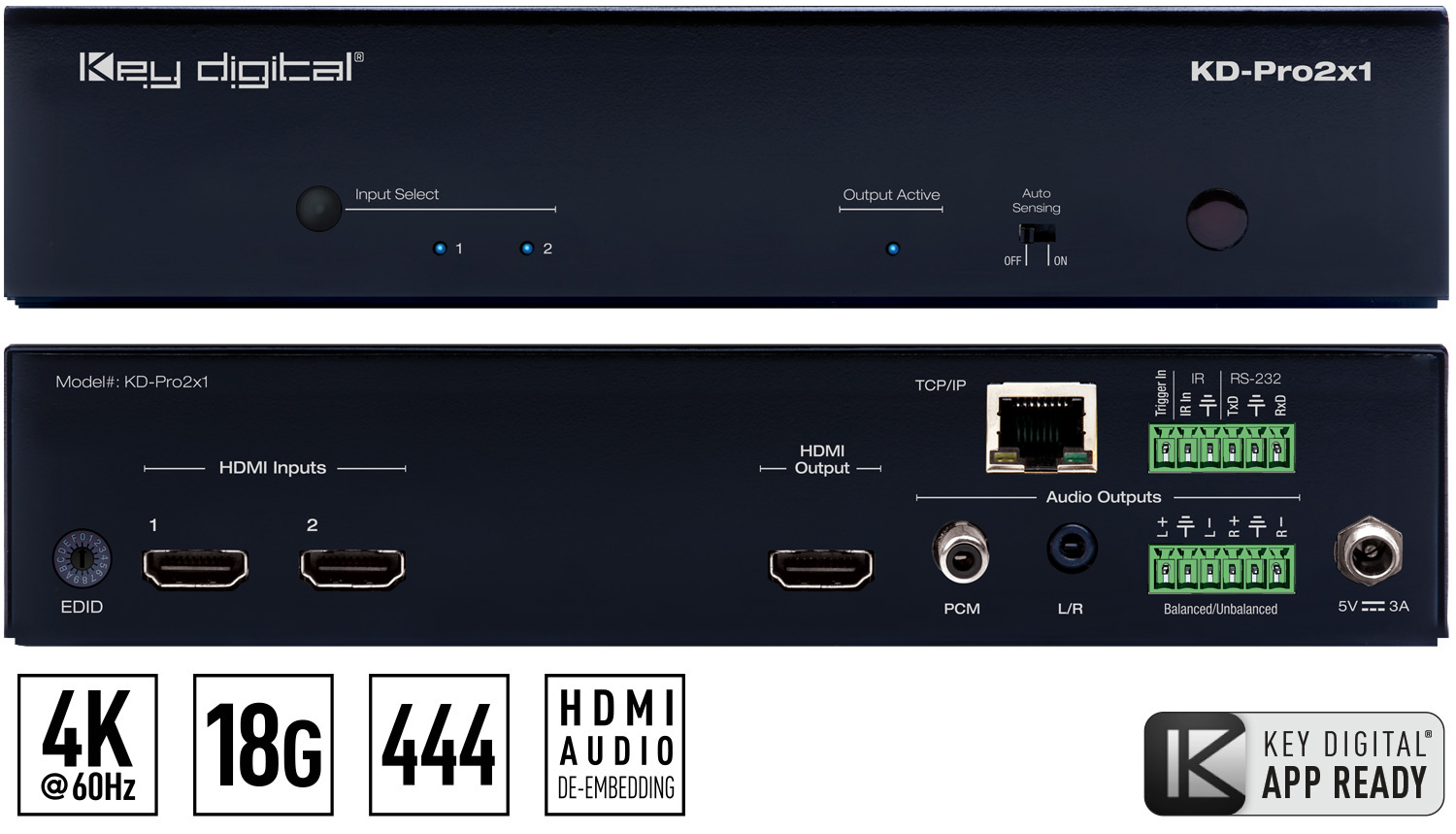

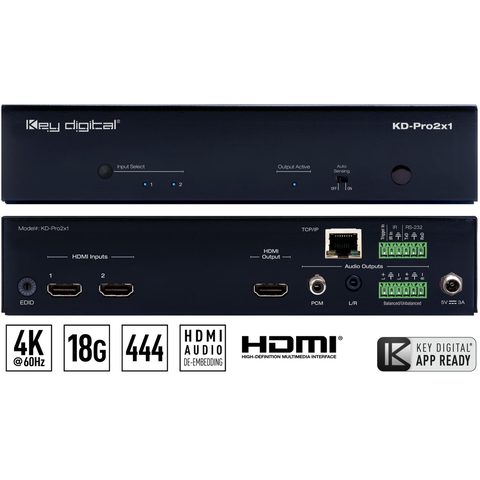

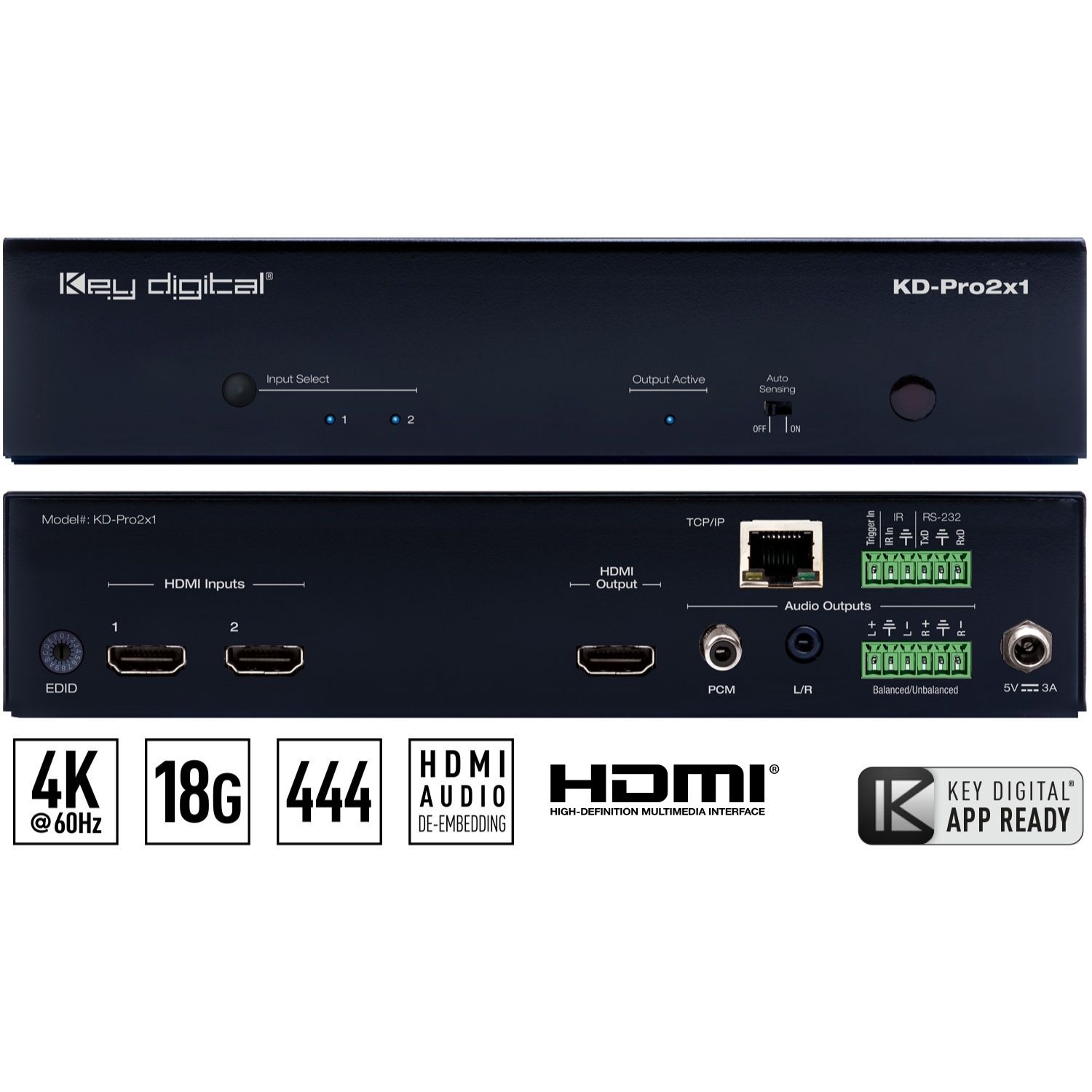

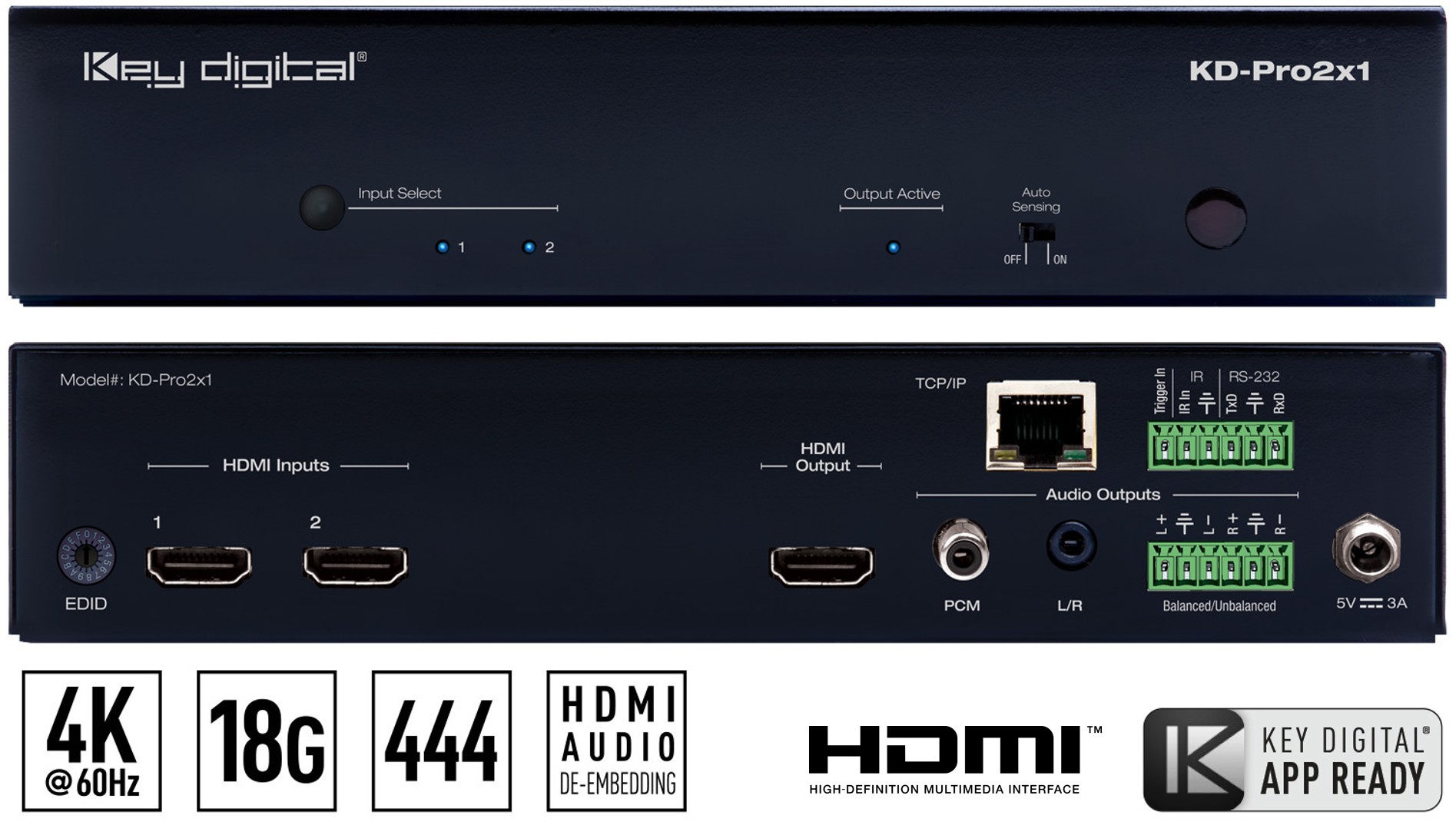

KD-Pro2x1

2x1 4K/18G HDMI Switcher, Audio De-embedding of Analog L/R Balanced/Unbalanced & Digital Coaxial Audio (NOTE: LIMITED SUPPLY)


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2

introduction


Features

Key Features:
  • HDMI Switching: 2 HDMI sources to 1 HDMI output
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA)
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
  • 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
  • HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Audio De-Embedder: Audio from the selected HDMI input is de-embedded through the Coax digital (PCM) or Analog L/R Balanced/Unbalanced
  • 3D Ready: Capability to pass 3D stereoscopic signal formats
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: Internal library with 15 default EDID handshakes for inputs, in addition to native EDID data for Output/Display
  • TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
  • Control: Front panel buttons/LEDs, Trigger In, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App

Additional Features


downloads

Operation Manual
Hi-res Photo
Application Example
Pronto Hex IR Sheet
Catalog Page

Diagrams

Application Example

control drivers

URC
Elan 20x22 Matrix ESR
Control4

specifications

Technical:

  • Input: HDMI Connector, Type A, 19 Pin Female
  • Output (Each): HDMI Connector, Type A, 19 Pin Female
  • Bandwidth: TMDS bandwidth 18 Gb/s
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Metal
  • Product Dimensions: 8.25” x 4.0” x 1.7”
  • Packaging Dimensions: 10.75” x 8.9” x 2.2”
  • Product Weight: 0.9 lb
  • Shipping Weight: 2 lb

accessories

  • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP12W5VC
  • Rack Ears
  • Remote Control
  • 6-Pin Terminal Blocks (qty 2)
