KD-SX440WP

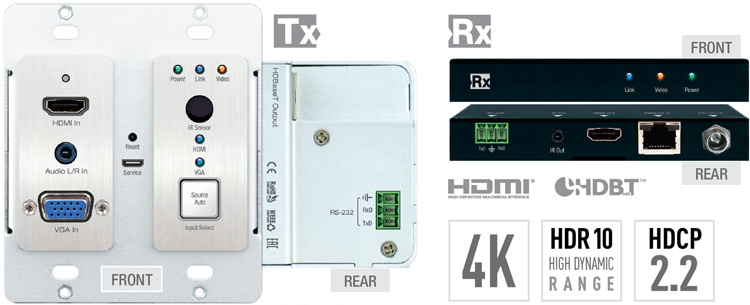

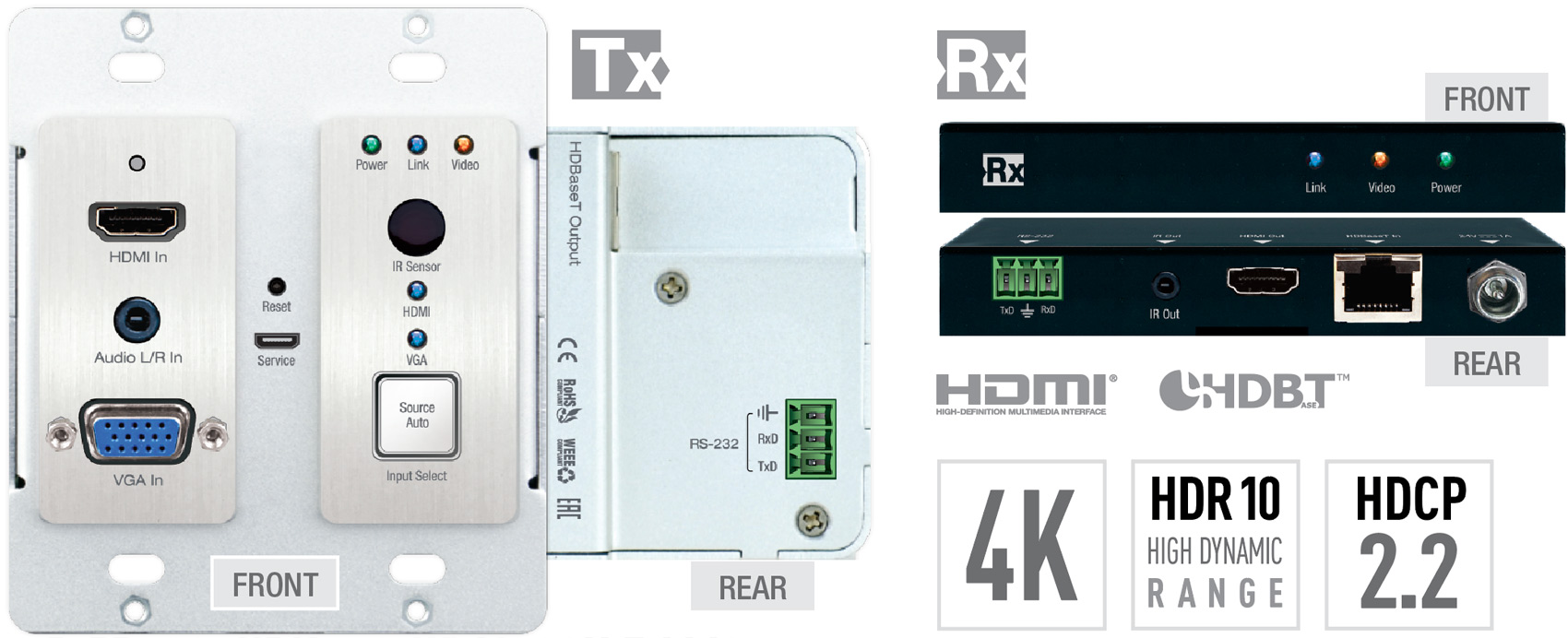

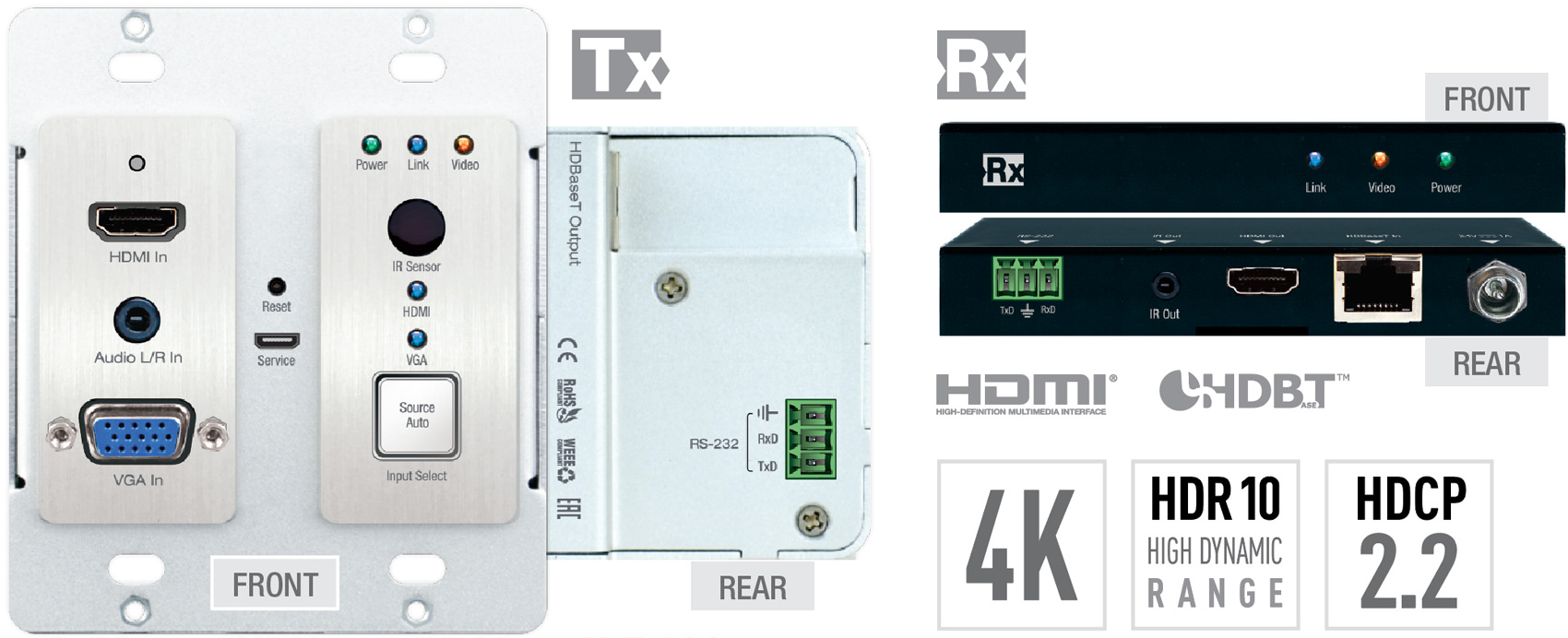

4K 2x1 POH HDBaseT HDMI VGA Wall-Plate Switcher, Scaler & Extender with HDBaseT Output (Includes KIT Wall-Plate Tx/Rx 4K/70meters 1080P/100meters)


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2

introduction


Features

Key Features:
  • 4K Support: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
  • Presentation Switching: 1 HDMI and 1 VGA + Audio source to 1 HDBaseT/HDMI output
  • Auto Switching: Newly connected source is discreetly selected
  • Converts: VGA video and analog audio to HDMI
  • Video Scaling: Processing of VGA signals ensures proper display
    • Aspect ratio / Resolution adjust
    • Image shift / stretch
  • Signal Extension: For resolution and cable quality
    • 4K/UHD: U p to 230 ft. (70m) using CAT5e/6 Up to 328 ft. (100m) using CAT6A STP / CAT7
    • 1080p: Up to 328 ft. (100m) maximum
  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Power Over HDBaseT: Wall-plate (Tx) unit powered by Rx unit
  • Installation: Tx unit designed for installation in standard US dual-gang box
  • Bandwidth: TMDS bandwidth 10.2 Gbps
  • Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
  • HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s
  • EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
  • RS-232: Bi-Directional control to/from Tx and Rx unit
  • IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
  • Unit Control Mode: Provides RS-232 control and status of/from Tx unit
  • Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
  • CEC Support: For inter-device control between input and output HDMI channel
  • I2C Communication: EDID and HDCP authentication to Display and Source
  • Control System Support: Compass Control® Pro ready. Fully controllable by all RS supported control systems.
