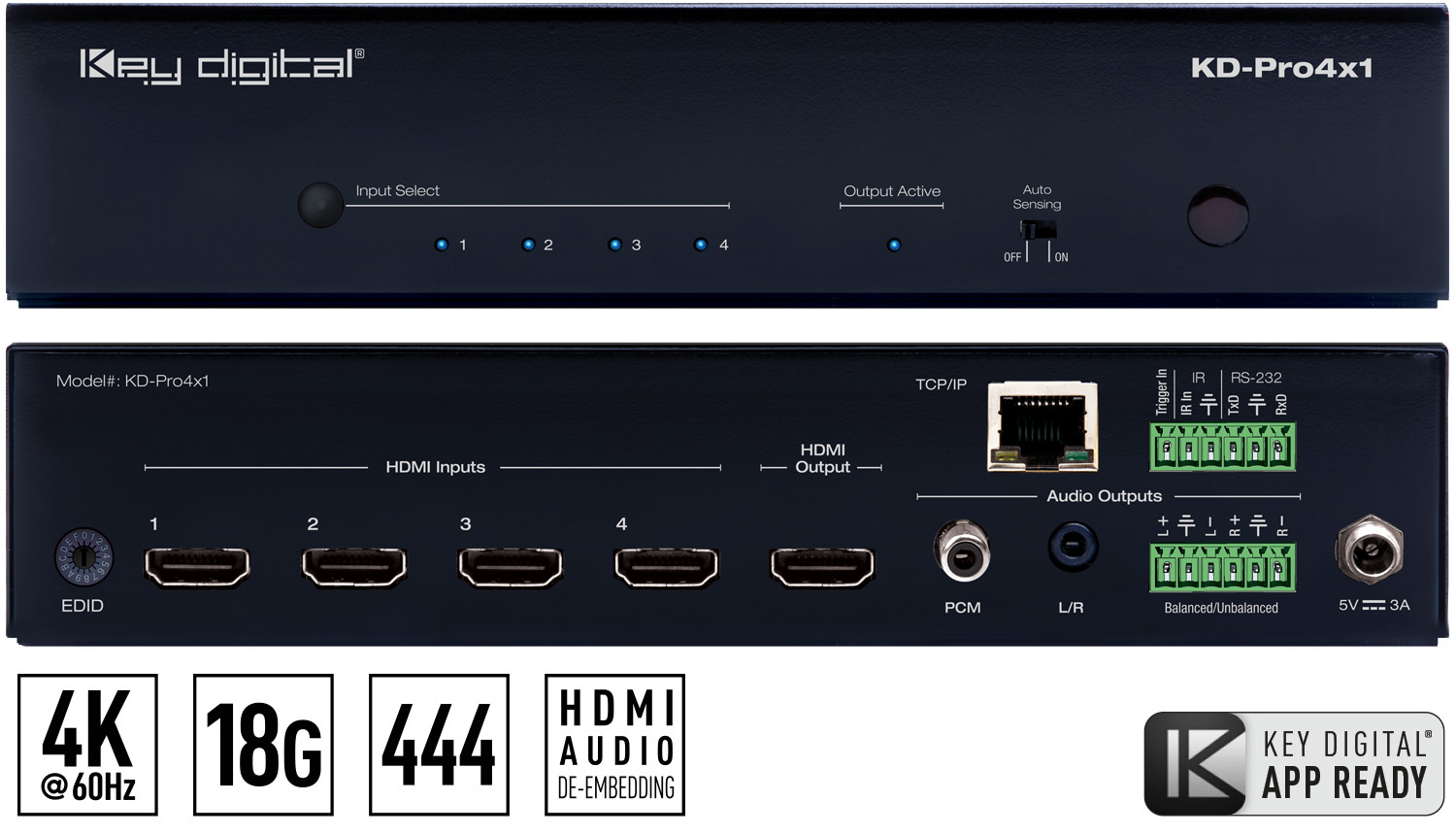

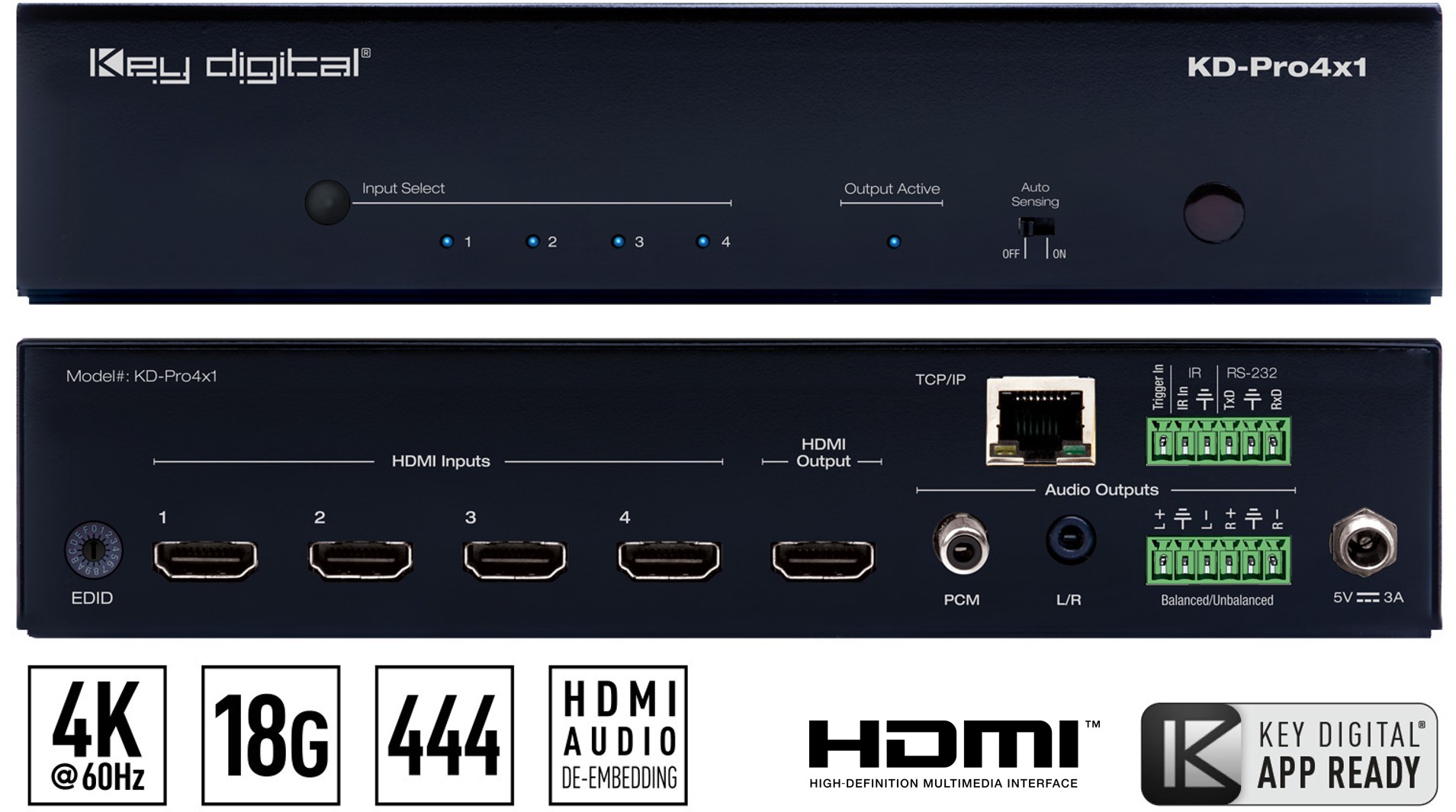

KD-Pro4x1 4K 18G HDMI Switcher, Audio De-embedding of Analog L/R
4K 18G HDMI Switcher, Audio De-embedding of Analog L/R Balanced/Unbalanced & Digital Coaxial Audio
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
4K 18G HDMI Switcher, Audio De-embedding of Analog L/R Balanced/Unbalanced & Digital Coaxial Audio
Find a Distributor
Free, no-commitment pricing. Typical reply within one business day.

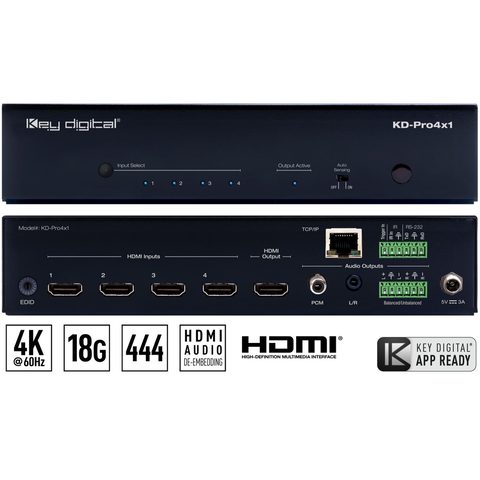

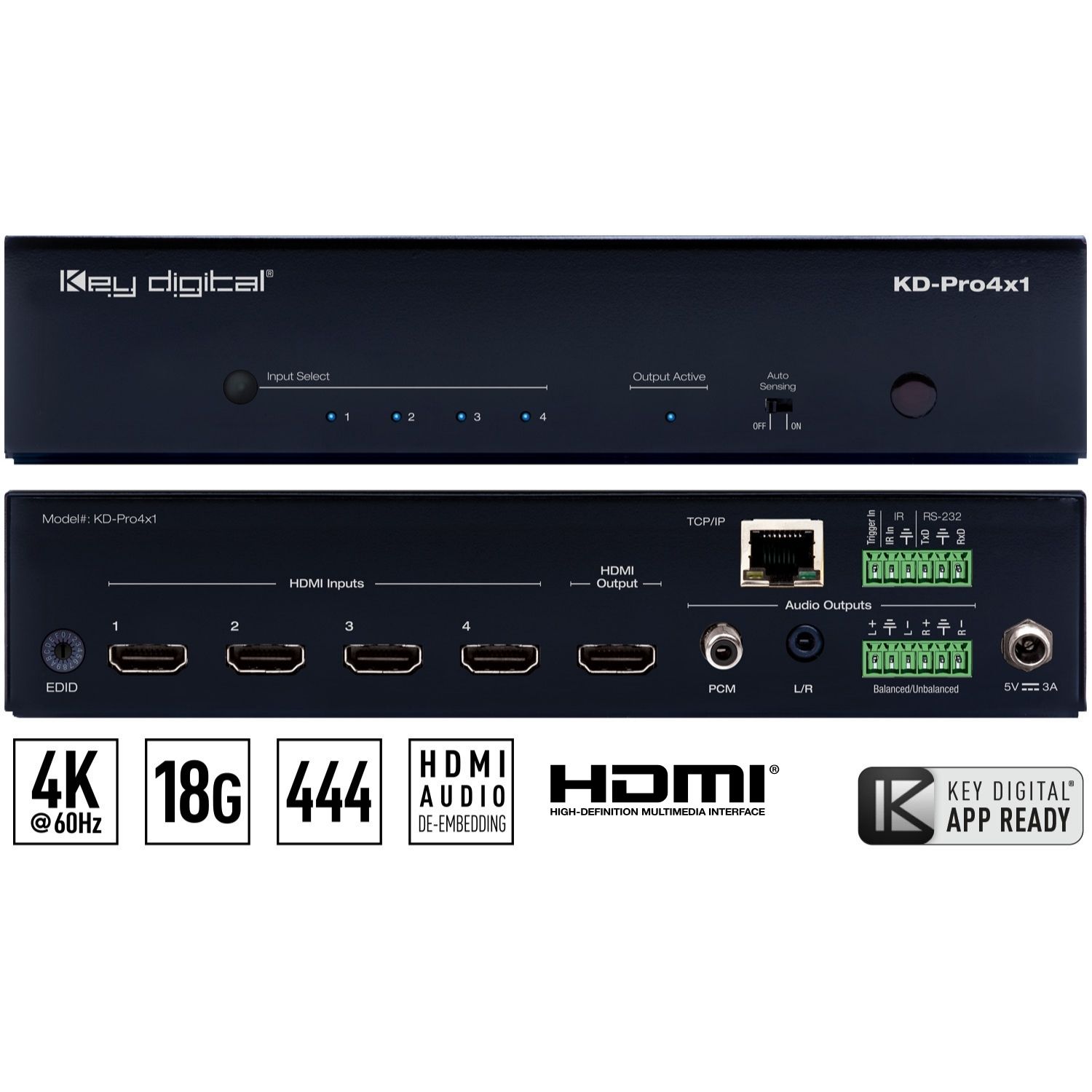

KD-Pro4x1
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
introduction
Features
Key Features:
- HDMI Switching: 4 HDMI sources to 1 HDMI output
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA)
- Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Audio De-Embedder: Audio from the selected HDMI input is de-embedded through the Coax digital (PCM) or Analog L/R Balanced/Unbalanced
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID: Internal library with 15 default EDID handshakes for inputs, in addition to native EDID data for Output/Display
- TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
- Control: Front panel buttons/LEDs, Trigger In, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
- Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
Additional Features
downloads
Hi-res Photo
Product Manual
IR Hex
Catalog Page
Diagrams
Application Example
control drivers
URC
Elan 20x22 Matrix ESR
Savant IR
Control4
specifications
Technical:
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head,
screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: 8.25” x 4.0” x 1.7”
- Packaging Dimensions: 10.75” x 8.9” x 2.2”
- Product Weight: 0.9 lb
- Shipping Weight: 2 lb
accessories
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP12W5VC
- Rack Ears
- Remote Control
- 6-Pin Terminal Blocks (qty 2)
technical documents
Hi-res Photo
Product Manual
IR Hex
Catalog Page
Images and Diagrams
Application Example
control drivers
URC
Elan 20x22 Matrix ESR
Savant IR
Control4
specifications
Technical:
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head,
screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: 8.25” x 4.0” x 1.7”
- Packaging Dimensions: 10.75” x 8.9” x 2.2”
- Product Weight: 0.9 lb
- Shipping Weight: 2 lb
accessories
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP12W5VC
- Rack Ears
- Remote Control
- 6-Pin Terminal Blocks (qty 2)
