KD-S2X1
KD-S2X1

KD-S2x1

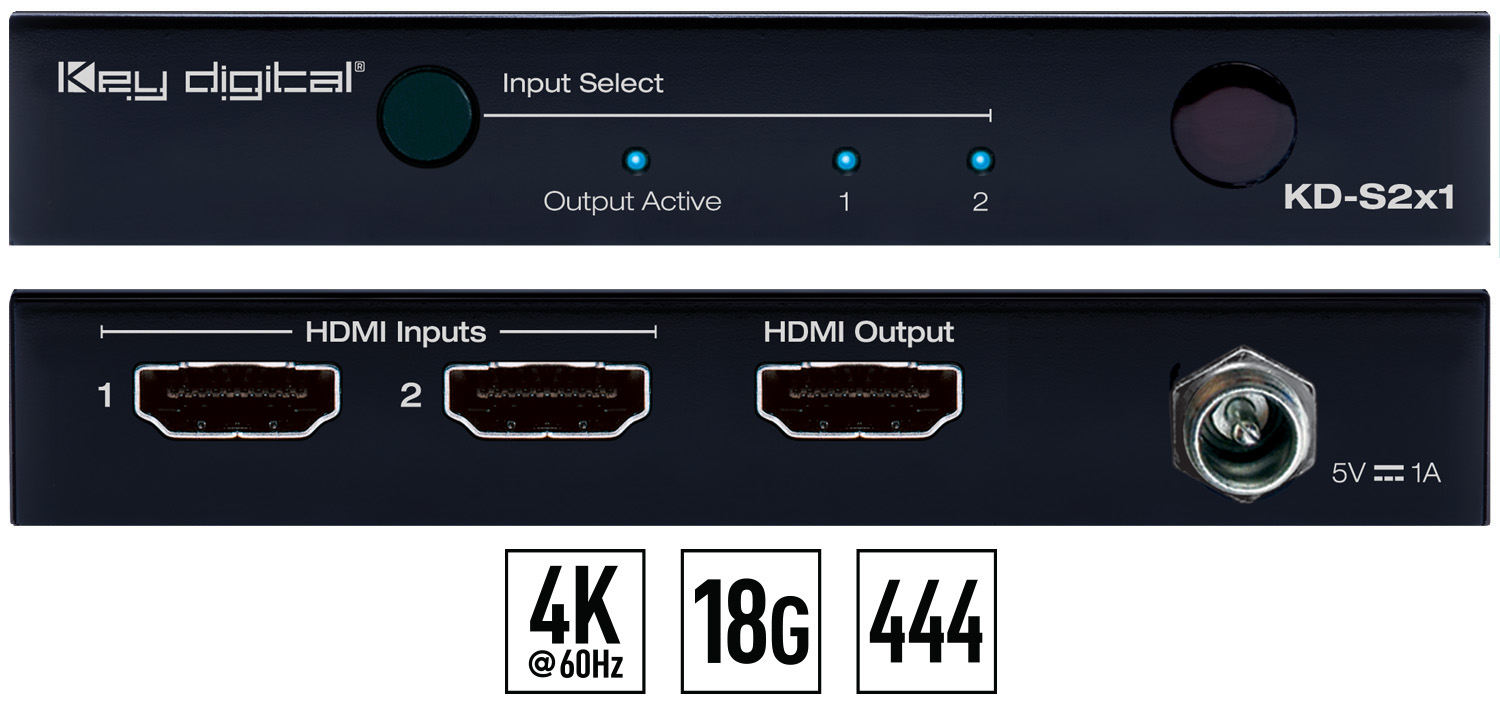

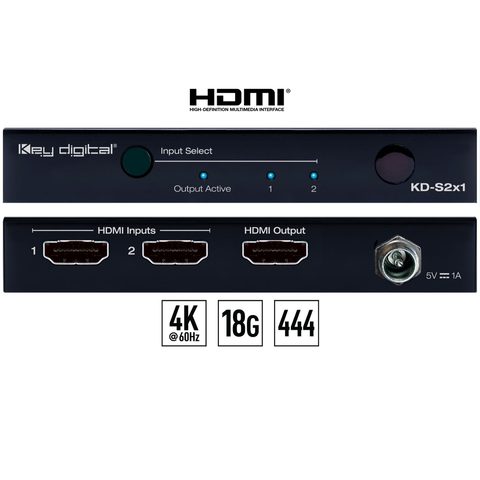

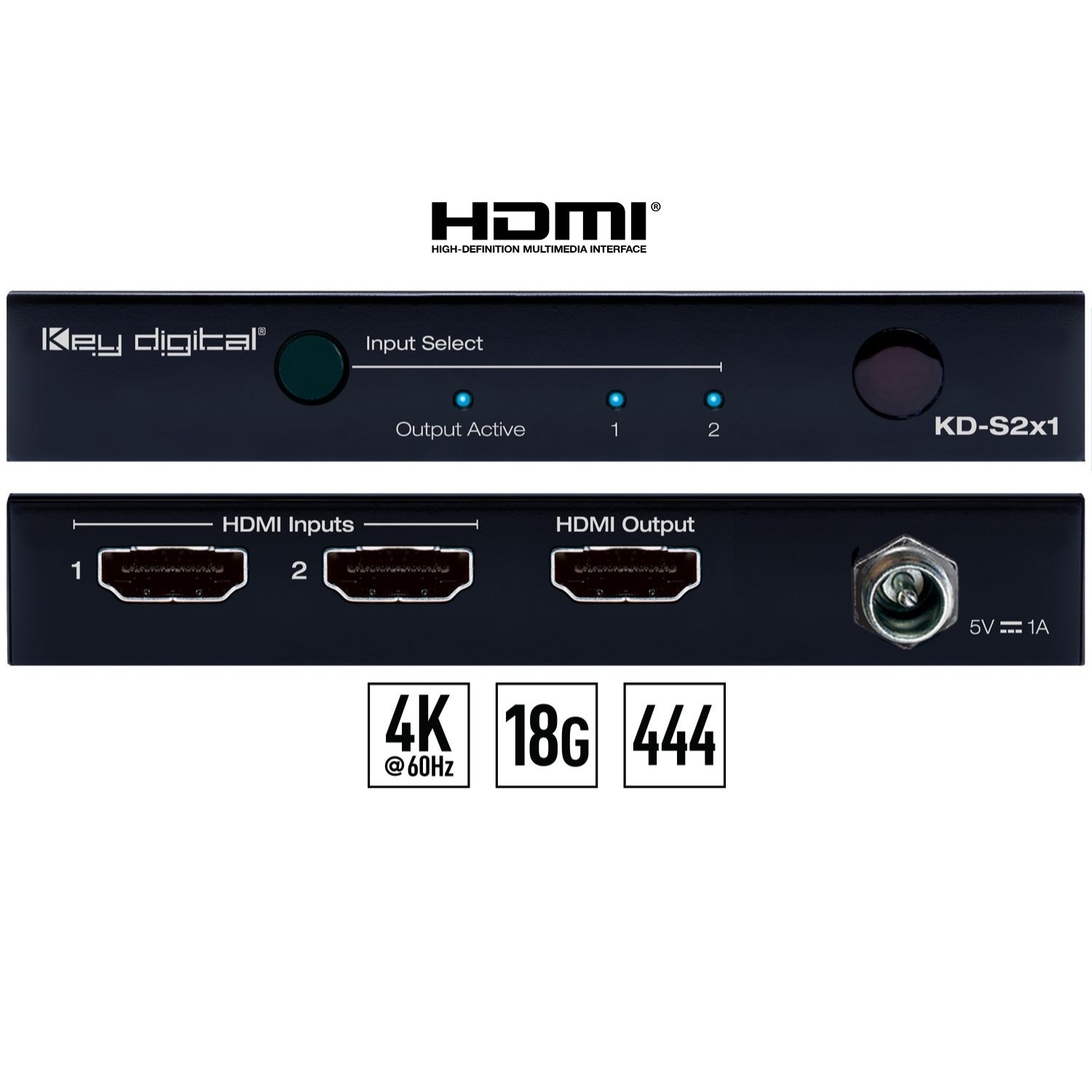

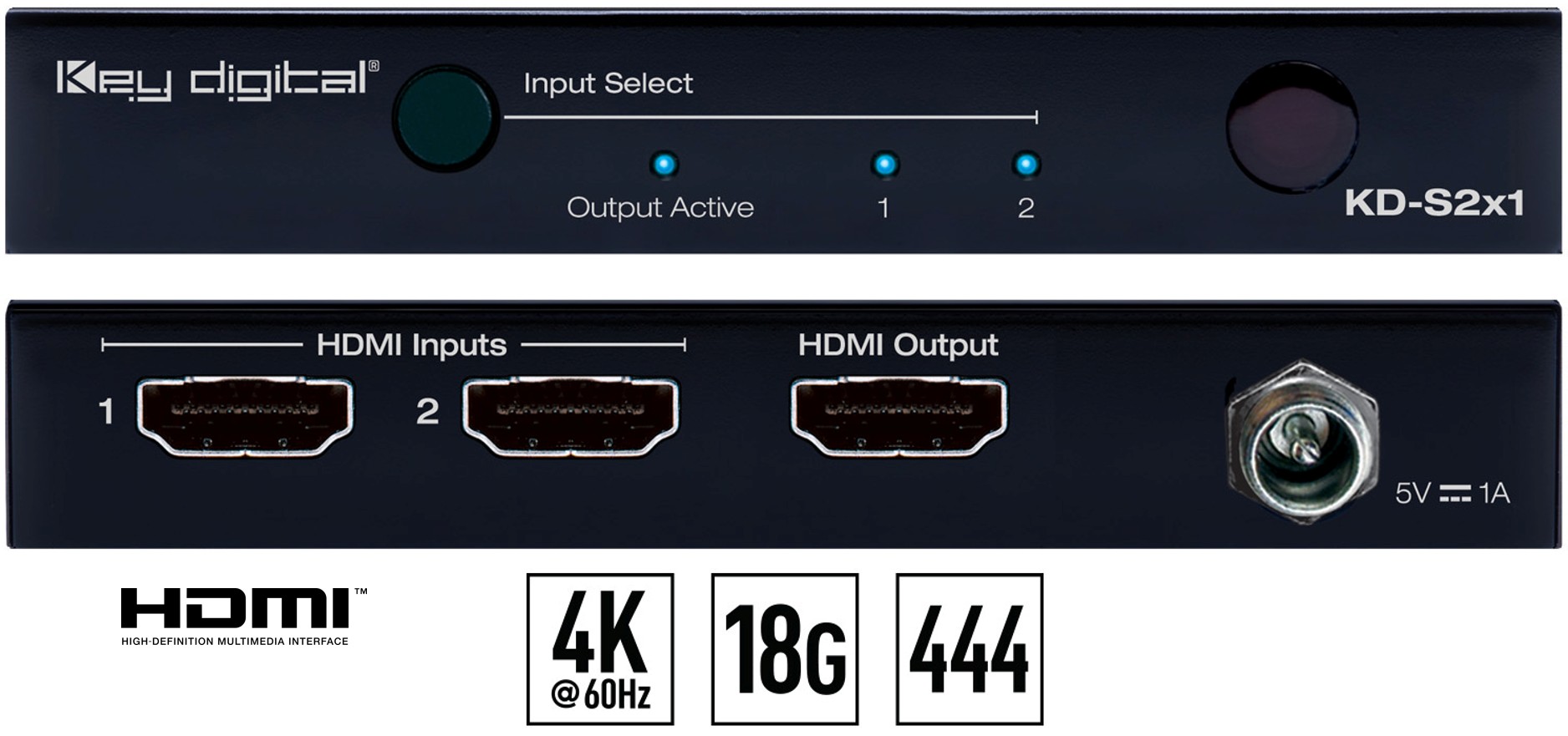

2x1 4K/18G HDMI Switcher (NOTE: LIMITED SUPPLY)


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
overview
resources
specS & accessories

introduction


Features

Key Features:
  • Digital Switching: 2 HDMI Sources to 1 HDMI Display
  • Resolution Support: SD, HD, and VESA up to UHD/4K
  • 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
  • HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
  • 3D Ready: Capability to pass 3D stereoscopic signal formats
  • EDID Control: Internal library with 16 default EDID configurations for each input, including native EDID data of Output/Display
  • Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos and DTS-HD Master Audio™
  • Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
  • I2C Communication: EDID and HDCP buffering from Display to Source
  • Control: Front panel push buttons and LEDs, Optical IR
  • CEC: Full Support
  • Control System Support: Compass Control® Pro ready. Fully controllable by all IR supported control systems.


Additional Features


downloads

KD-S2x1_CatalogPage.pdf
KD-S2x1_AppExample.pdf
KD-S2x1_4x1_Manual.pdf
IRProntoHex_RMSWPROK.doc

Diagrams

KD-S2x1_AppExample.pdf

control drivers

Key Digital KD-S2x1X.zip

specifications

Technical:

  • Input (Each): HDMI Connector, Type A, 19 Pin Female
  • Output: HDMI Connector, Type A, 19 Pin Female
  • Bandwidth: TMDS bandwidth 18 Gb/s
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Metal
  • Product Dimensions: KD-S2x1 - 4.3” x 1.1” x 2.8” KD-S4x1 - 6.25” x 1.1” x 3.1”
  • Packaging Dimensions: KD-S2x1 - 6.3” x 4.2” x 3.7” KD-S4x1 - 9.8” x 4.5” x 3.35”
  • Product Weight: KD-S2x1 - 0.5 lb KD-S4x1 - 0.9 lb
  • Shipping Weight: KD-S2x1 - 0.7 lb KD-S4x1 - 1.5 lb

accessories

  • Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V1ASC
  • Mounting Brackets
  • IR Remote
