KD-VW4x4Pro

DISCONTINUED: REPLACEMENT COMING Q3, 2022. 4x4 Video Wall Processor, supports Seamless Presentation Matrix Switching. Features 8 Video Wall Modes.

KD-VW4X4PRO
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
John Peterson · Innovative Sales Solutions | Lakewood Tavern

DISCONTINUED: REPLACEMENT COMING Q3, 2022. 4x4 Video Wall Processor, supports Seamless Presentation Matrix Switching. Features 8 Video Wall Modes.

Find a Distributor

Free, no-commitment pricing. Typical reply within one business day.

KD-VW4x4Pro


Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Get a Quote

KD-VW4x4Pro

Tell us a couple of details and we’ll come back with pricing within one business day. No phone calls until you say so.

By submitting, you agree to be contacted by Key Digital about this request.

Urgent? Call +1 914-667-9700, M–F 9–5 ET.

introduction


Features


  • HDMI Matrix Switching: 4 HDMI/Analog sources to 4 HDMI outputs, independent when in matrix mode
  • Seamless Switching: Un-interrupted screen transitions during source selections

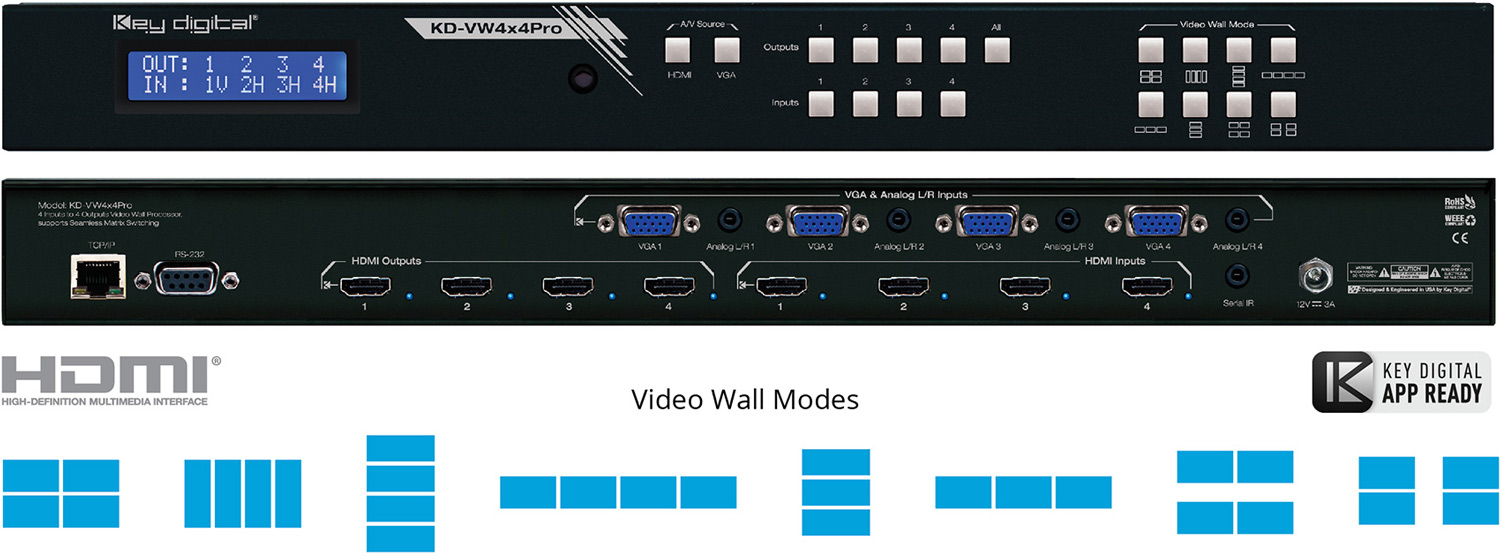

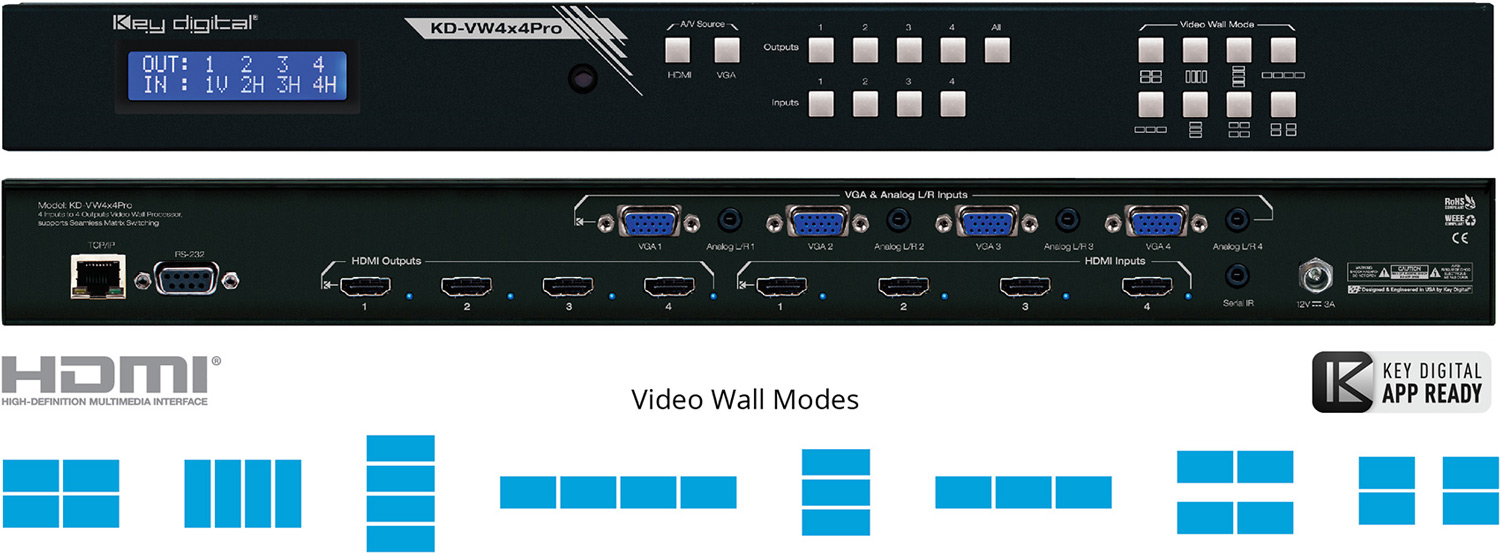

  • Video Wall Processing: Transform consumer and professional displays into a video wall with eight video wall modes
    • Horizontal (4): 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
    • Vertical (3): 4x1, 3x1, and two sets of 2x1
    • 2x2
  • Panel Flip: Enables use of consumer displays by mounting top row upside down
  • Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
  • EDID: Internal library with 5 default EDID configurations for each input, in addition to native EDID data for any Output/Display
  • Full Buffer™ Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
  • TMDS re-clocking: Support for long HDBaseT/CAT5e/6 or HDMI connections and many layers of connectivity.
  • Deep Color Support: Up to 12 bits/color
  • Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control and discrete on and off via IR
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App

Additional Features


downloads

Pronto Hex
Catalog Page
Operation Manual
Hires Photo

Diagrams

Diagram

control drivers

Savant Profile

specifications

Technical:
  • Input (Each): 1 HDMI connector, Type A, 19 pin female; 1 HD analog video 15-pin female, 1 analog audio connector, 3.5mm stereo female
  • Output (Each): 1 HDMI connector, Type A, 19 pin female
  • Bandwidth: TMDS bandwidth 4.95 Gb/s
  • Link: Single Link
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
  • Wired IR: Modulated IR signal input, 0-5V TTL or -10 to +10V, 3.5mm mono female connector with signal on tip
  • Power: External Power supply, 12V 3A
General:
  • Regulation: CE, RoHS, WEEE
  • Rack Mount: 1U, Full Rack Width (rack ears included)
  • Enclosure: Black Meta
  • Product Dimensions: 17.25” x 7.1” x 1.75”
  • Shipping Dimensions: 22.8” x 8.5” x 3.2”
  • Product Weight: 6.5 lb
  • Shipping Weight: 8 lb

accessories

  • Power supply (qty 1) 12V/3A, 36W, desktop type, model KDSP40W12VC
  • IR Remote control: KD-RMVW4x4
  • Rack Ears

technical documents

Pronto Hex
Catalog Page
Operation Manual
Hires Photo

Images and Diagrams

Diagram

control drivers

Savant Profile

specifications

Technical:
  • Input (Each): 1 HDMI connector, Type A, 19 pin female; 1 HD analog video 15-pin female, 1 analog audio connector, 3.5mm stereo female
  • Output (Each): 1 HDMI connector, Type A, 19 pin female
  • Bandwidth: TMDS bandwidth 4.95 Gb/s
  • Link: Single Link
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
  • Wired IR: Modulated IR signal input, 0-5V TTL or -10 to +10V, 3.5mm mono female connector with signal on tip
  • Power: External Power supply, 12V 3A
General:
  • Regulation: CE, RoHS, WEEE
  • Rack Mount: 1U, Full Rack Width (rack ears included)
  • Enclosure: Black Meta
  • Product Dimensions: 17.25” x 7.1” x 1.75”
  • Shipping Dimensions: 22.8” x 8.5” x 3.2”
  • Product Weight: 6.5 lb
  • Shipping Weight: 8 lb

accessories

  • Power supply (qty 1) 12V/3A, 36W, desktop type, model KDSP40W12VC
  • IR Remote control: KD-RMVW4x4
  • Rack Ears
