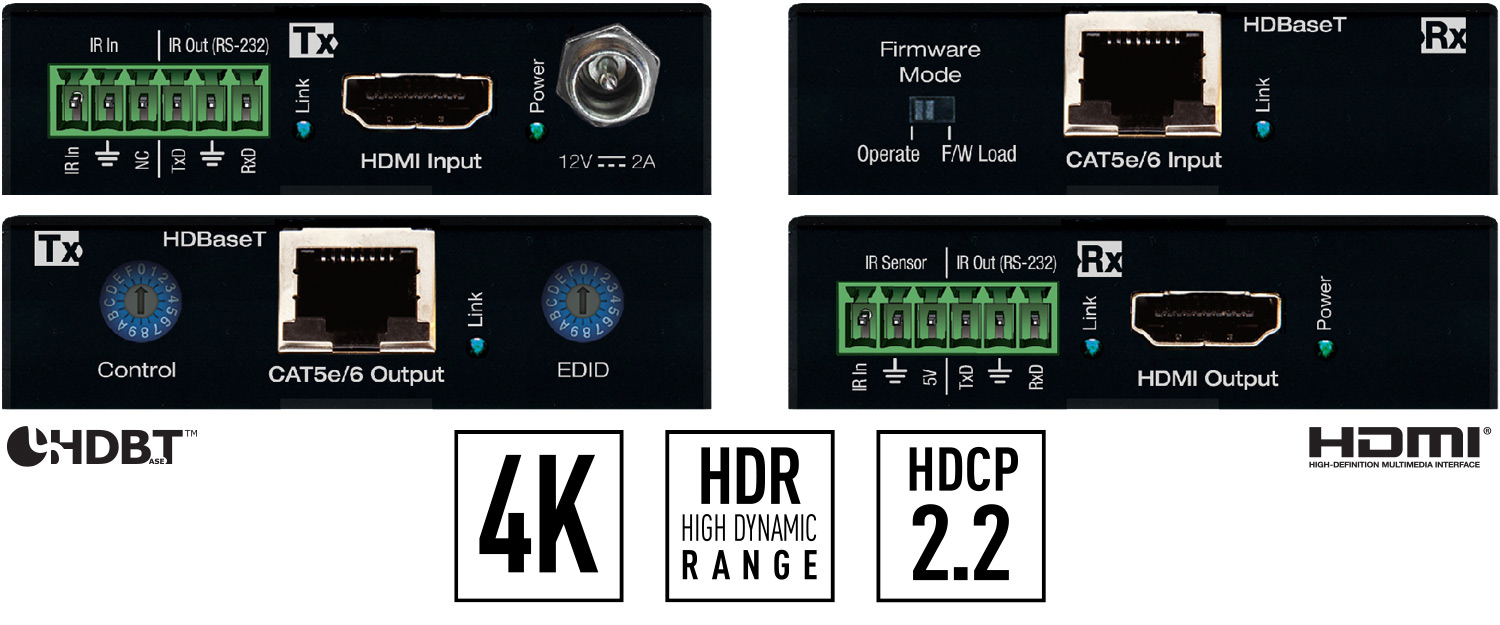

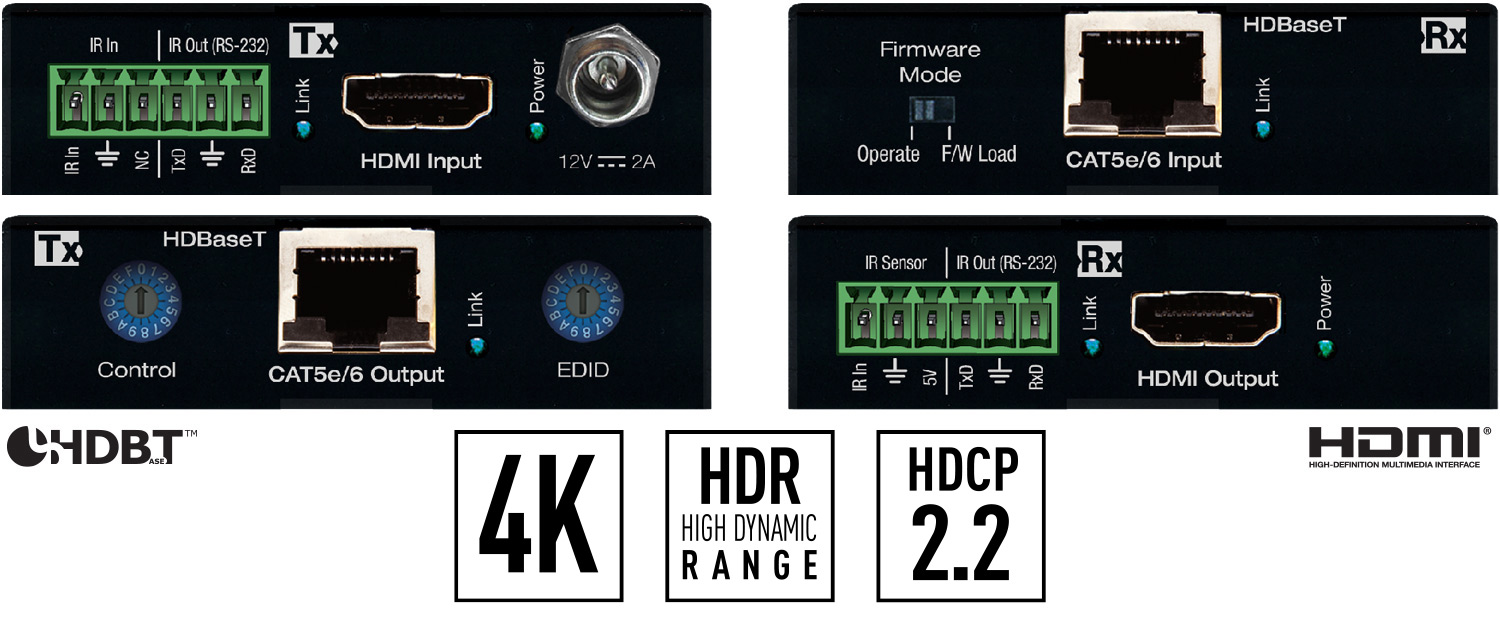

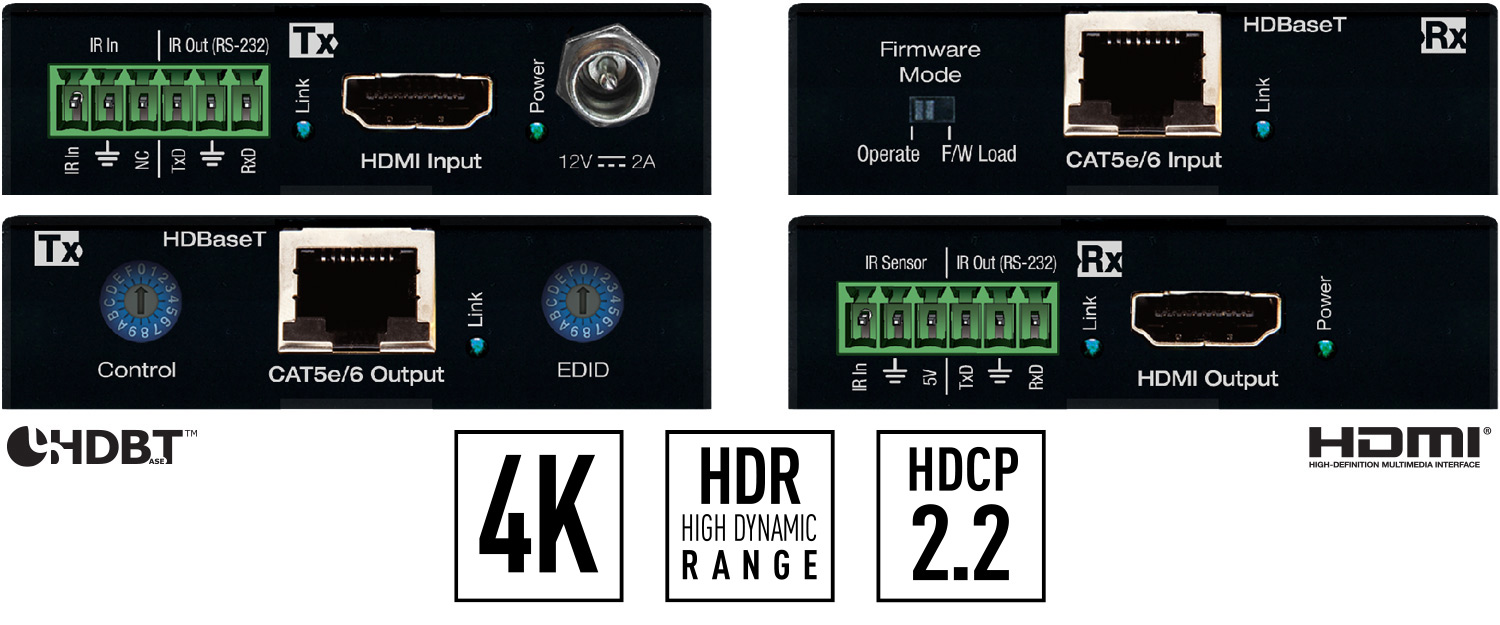

KD-X222PO 4K HDMI over CAT5e/6 HDBaseT Extender Tx + Rx Kit. 10.2Gbps
4K HDMI over CAT5e/6 HDBaseT Extender Tx + Rx Kit. 10.2Gbps Bandwidth. IR Emitter and Sensor Included.
"Key Digital did an amazing job. We literally just had how many TVs and sources. We numbered them one to 23 throughout the bar, and they came pre-loaded and ready to go."
4K HDMI over CAT5e/6 HDBaseT Extender Tx + Rx Kit. 10.2Gbps Bandwidth. IR Emitter and Sensor Included.
Find a Distributor
Free, no-commitment pricing. Typical reply within one business day.
KD-X222PO
Sales Team is here to help you with an integration question or to find a distributor:
Email Sales or call us or at +1 914-667-9700 Opt2
Email Sales or call us or at +1 914-667-9700 Opt2
introduction
Features
Key Features:
- HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
- Power over HDBaseT: Tx unit powers Rx unit. Only one power connection needed.
- Signal Extension:
- Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT6A cabling
- Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT5e/6 UTP/STP cabling
- Up to 250 ft. @ 1080p /1920x1200 using CAT6A cabling
- Up to 230 ft. @ 1080p /1920x1200 using CAT5e/6 UTP/STP cabling
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels.
- 4K/UHD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
- Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
- 3D: Support for standard 3D stereoscopic signal formats
- Low Profile: Super slim chassis design
- HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s
- EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
- IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote(s) without external IR connecting block
- Up/Down IR: Two channels of IR enable control to/from devices connected to Tx and Rx units
- RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
- Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as connectivity status
- Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
- CEC Support: For inter-device control between input and output HDMI channel
- I2C Communication: EDID and HDCP authentication to Display and Source
- Control System Support: Fully controllable by all RS-232 supported control systems via open API: Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
Additional Features
downloads
Application Example
Silk Screen Drawings
Operation Manual
Catalog Page
Hi-res Photo
Diagrams
Diagram
specifications
Technical:
- Inputs Tx (Each): 1 HDMI, 1 IR In
- Outputs Tx (Each): 1 CAT5e/6 UTP/STP, 1 IR Out /RS-232 Bi-Directional
- Inputs Rx (Each): 1 CAT5e/6 UTP/STP, 1 IR In
- Outputs Rx (Each): 1 HDMI, 1 IR Out /RS-232 Bi-Directional
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- HDMI Connector: Type A, 19 Pin Female
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR In Connector: Phoenix Connectors
- IR Out (RS-232) Connector: Phoenix Connectors
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product (Each): 4.1” x 2.8” x 0.875”, Weight: 0.75 lbs
- KD-X222PO Power (Tx Only): KD-PS12V2ASC, 12V/2A, 100-240VAC, 50-60Hz, Interchangeable head with screw-in connector
accessories
- Power Supply (qty 1) 12V/2A, 24W, wall type, model KDPS12V2ASC
- Mounting Brackets (qty 2)
- IR Emitter (qty 1)
- IR Sensor (qty 1)
- KD-X222PO only requires power on the Tx unit, which extends power
to the Rx unit
technical documents
Application Example
Silk Screen Drawings
Operation Manual
Catalog Page
Hi-res Photo
Images and Diagrams
Diagram
specifications
Technical:
- Inputs Tx (Each): 1 HDMI, 1 IR In
- Outputs Tx (Each): 1 CAT5e/6 UTP/STP, 1 IR Out /RS-232 Bi-Directional
- Inputs Rx (Each): 1 CAT5e/6 UTP/STP, 1 IR In
- Outputs Rx (Each): 1 HDMI, 1 IR Out /RS-232 Bi-Directional
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- HDMI Connector: Type A, 19 Pin Female
- RJ45 Connector: Shielded Link Connector, HDBaseT
- IR In Connector: Phoenix Connectors
- IR Out (RS-232) Connector: Phoenix Connectors
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product (Each): 4.1” x 2.8” x 0.875”, Weight: 0.75 lbs
- KD-X222PO Power (Tx Only): KD-PS12V2ASC, 12V/2A, 100-240VAC, 50-60Hz, Interchangeable head with screw-in connector
accessories
- Power Supply (qty 1) 12V/2A, 24W, wall type, model KDPS12V2ASC
- Mounting Brackets (qty 2)
- IR Emitter (qty 1)
- IR Sensor (qty 1)
- KD-X222PO only requires power on the Tx unit, which extends power
to the Rx unit
